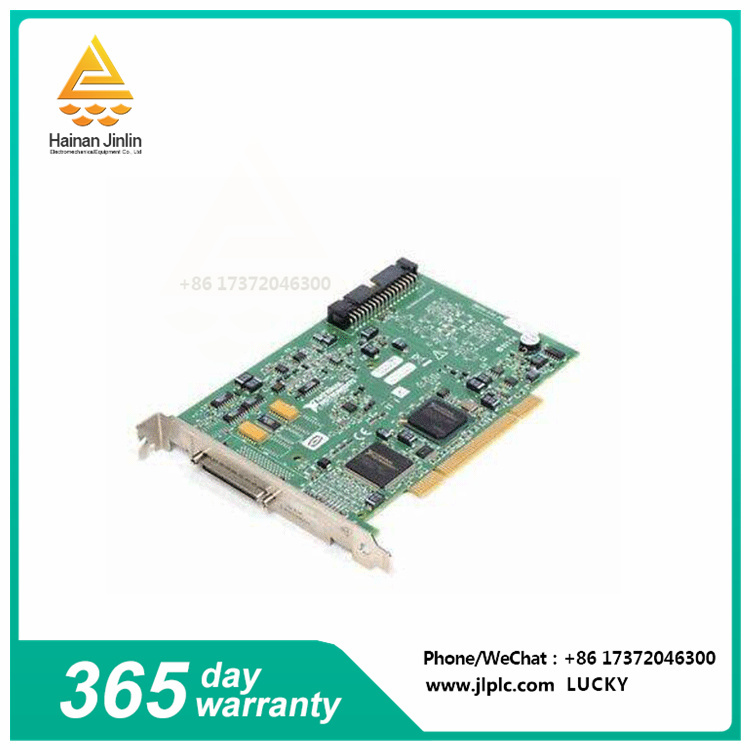

The PCI-6220 is a multi-function data acquisition card manufactured by National Instruments (NI). It is widely used in various occasions requiring high-speed and high-precision data acquisition, such as industrial automation, testing and measurement, scientific research experiments and so on.
PCI-6220 data acquisition card has many advantages and features. First, it has high-speed data acquisition capabilities, with a maximum sampling rate of 250 kS/s, which means that it can quickly capture transient signals and dynamic processes, meeting the real-time requirements of high applications. Secondly, the PCI-6220 has a 16-bit resolution, which can provide high-precision measurement results, ensuring the accuracy and reliability of the data. In addition, it also supports 16 analog inputs, which can simultaneously collect data from multiple signal sources, improving the efficiency and flexibility of data acquisition.
In the field of industrial automation, PCI-6220 data acquisition card is widely used in the production line of various parameters monitoring and control. It can collect temperature, pressure, flow and other key parameters in real time, and realize real-time data transmission and processing through the connection with the host computer. This enables production personnel to understand the production status in time, adjust production parameters, and improve production efficiency and product quality.
In the field of test and measurement, the PCI-6220 data acquisition card also plays an important role. It can be used for physical quantity measurement, signal analysis and system testing in laboratory environment. Researchers can use PCI-6220 for accurate data acquisition, obtain accurate experimental data, and provide a reliable basis for scientific research and experimental verification.
In addition, the PCI-6220 data acquisition card can also be used in combination with NI's LabVIEW software to build automated test systems, monitoring systems and data acquisition systems. With LabVIEW's graphical programming environment, users can easily configure data acquisition tasks, process and analyze data, and realize complex automated testing and control tasks.
It should be noted that although the PCI-6220 data acquisition card has many advantages, it still needs to be selected and configured according to specific needs and environmental conditions in practical applications. Users need to consider the sampling rate, resolution, channel number and other factors, and ensure the compatibility with the host computer and other devices to achieve the best data acquisition effect.
To sum up, PCI-6220 data acquisition card has wide application prospects in industrial automation, test and measurement, scientific research and other fields because of its high speed, high precision and multi-channel characteristics.
