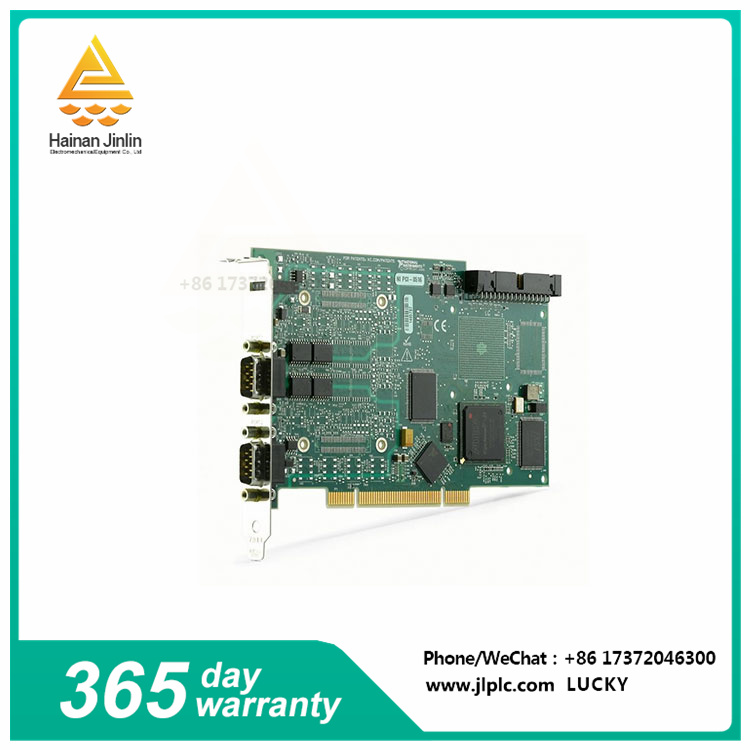

PCI-8516 is a powerful high-speed data acquisition card, mainly used for high-speed, high-precision data acquisition tasks. It has a number of significant technical features and application areas, the following is a detailed introduction to PCI-8516:
Technical features:
High-speed acquisition: The PCI-8516 has a sampling frequency of up to 80MHz per channel, ensuring accurate capture of rapidly changing signals.
High accuracy: The data acquisition card has 16-bit conversion accuracy, which can meet most high-precision data acquisition requirements.
Large capacity memory: 2GB of on-board memory provides sufficient space for the storage and processing of large amounts of data.
Multi-channel synchronous input: Supports 4-channel synchronous input, and can collect data from multiple signal sources at the same time.
Wide range: The input range includes ±5V and ±1V, which is suitable for signal acquisition of different amplitudes.
Flexible trigger: Provide software trigger, analog trigger, digital signal trigger, synchronous signal trigger and other trigger modes.
Multiple application interfaces: Support a variety of programming language platforms, such as LabVIEW, VC, VB, etc., easy to integrate into a variety of application systems.
Application field:
PCI-8516 has a wide range of applications, including but not limited to ultrasonic nondestructive testing, hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, and automated control. In these areas, PCI-8516's high-speed acquisition capabilities and high-precision conversion characteristics enable it to obtain data accurately and quickly, providing a reliable basis for subsequent data processing and analysis.
In addition, the durability of the PCI-8516 makes it suitable for applications in harsh environmental conditions such as industrial automation and process control. Its rugged housing can effectively withstand adverse factors such as vibration, shock, temperature difference, humidity and dust, ensuring stability and reliability of data acquisition.
It should be noted that although PCI-8516 has many advantages, it needs to be selected and configured according to specific needs and environmental conditions in practical applications. When selecting and using PCI-8516, it is recommended to refer to the relevant product manuals and technical documentation to ensure the correct and efficient use of the device.
In summary, the PCI-8516 is a powerful, widely used high-speed data acquisition card, suitable for a variety of high-speed, high-precision data acquisition occasions.
