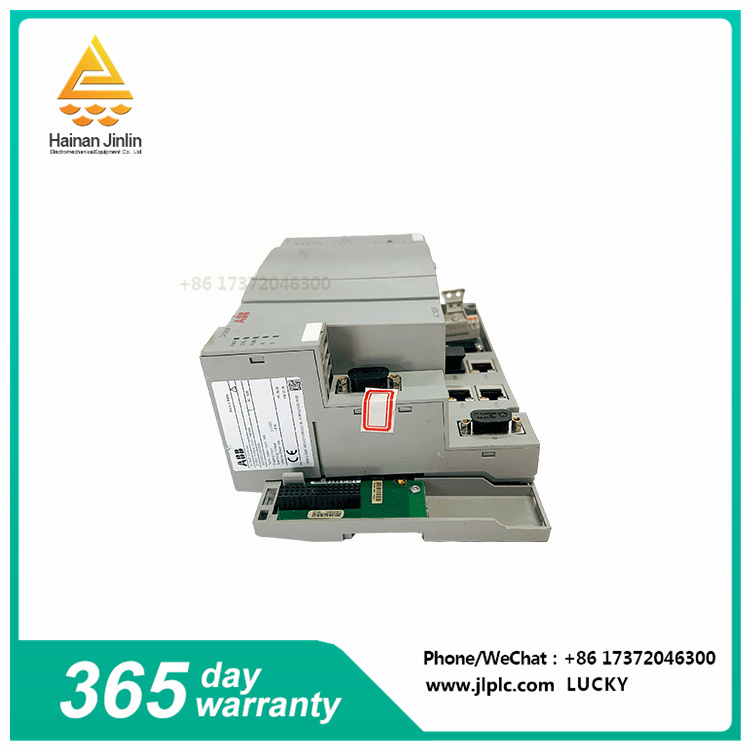

The PM904F 3BDH001002R0001 is a servo controller manufactured by ABB. It is mainly composed of servo amplifier, electric operator, actuator, servo motor, mechanical reducer and position transmitter. The actuator accepts the output signal of the servo amplifier or the electric operator, controls the positive and negative rotation of the servo motor, and turns the output torque to promote the action of the regulating mechanism after the mechanical reducer. At the same time, the position transmitter converts the angular displacement of the regulating mechanism into the corresponding 4-20mADC signal, which is used as the valve position indication, and feeds back to the input end of the pre-magnetic amplifier as the position feedback signal to balance the input signal.
The PM904F 3BDH001002R0001 servo controller plays an important role in industrial automation and control systems, it can achieve accurate control and regulation to ensure the stable operation of equipment and systems. Its high precision control, fast response and reliability make it widely used in many fields, including production line automation, robot control, motion control and so on.
PM904F 3BDH001002R0001 is a servo controller produced by ABB, its main functions are reflected in the following aspects:
Servo control: This controller is mainly used for precise control of the servo system. By receiving and processing the input signal, it controls the positive and negative rotation of the servo motor, so as to drive the relevant actuator for action.
Signal processing and conversion: The PM904F 3BDH001002R0001 is capable of receiving and processing various input signals, including control signals and feedback signals. At the same time, it can also convert the angular displacement signal (4-20mADC signal) of the position transmitter as the valve position indication, and feed back to the input end of the pre-magnetic amplifier to achieve position feedback.
Motion control: By precisely controlling the action of the servo motor, the PM904F 3BDH001002R0001 can achieve complex motion control tasks, such as speed control, position control, etc. This makes it widely used in the field of high-precision motion control, such as production line automation, robot control and so on.
System stability guarantee: PM904F 3BDH001002R0001 has high-performance processing capabilities and accurate control algorithms, which can help maintain the stability of the system and prevent equipment failures or production interruptions caused by inaccurate or unstable control.
In general, the main function of PM904F 3BDH001002R0001 is to achieve accurate servo control and motion control, ensure the stable operation of the system, and meet the needs of industrial automation and control systems.
