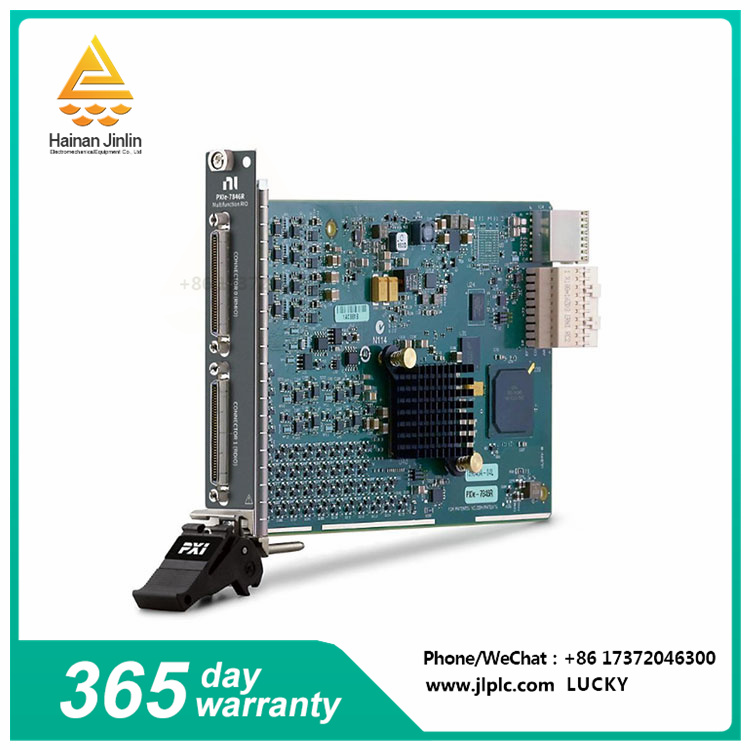

The PXIE-7846 is a PXI multi-function reconfigurable I/O module with a user programmable FPGA for high-performance on-board processing and direct control of I/O signals, ensuring full flexibility in system timing and synchronization. Each channel of the PXIE-7846 has dedicated analog-to-digital converters (ADCs) that are used for independent timing and triggering, providing dedicated features not available in typical data acquisition hardware such as multi-rate sampling and single-channel triggering. In addition, the PXIE-7846 supports point-to-point data streaming and can transfer data directly to other PXI Express modules.
The PXIE-7846 can be customized through the LabVIEW FPGA module to develop applications that require precise timing and control, such as hardware-in-the-loop testing, custom protocol communication, sensor simulation, and high-speed control.
The PXIE-7846, as a PXI multi-function reconfigurable I/O module, offers a number of significant benefits, but also some potential drawbacks. Here is a detailed analysis of its advantages and disadvantages:
Advantages:
High degree of flexibility and configurability: The PXIE-7846 features a user-programmable FPGA, which enables highly customized configurations based on specific application requirements. This flexibility allows the PXIE-7846 to adapt to a variety of complex test and control tasks.
Powerful data processing capabilities: Through on-board FPGA processing, the PXIE-7846 is able to achieve direct control of I/O signals, ensuring full flexibility in system timing and synchronization. In addition, each channel is equipped with a dedicated analog-to-digital converter (ADC) capable of independent timing and triggering, supporting advanced features such as multi-rate sampling and single-channel triggering.
Efficient data transmission capability: PXIE-7846 supports point-to-point data flow and can directly transmit data to other PXI Express modules, which greatly improves the efficiency and reliability of data transmission.
Wide range of application scenarios: Due to the above advantages, the PXIE-7846 has a wide range of applications in many fields, including hardware-in-the-loop testing, custom protocol communication, sensor simulation, and high-speed control.
