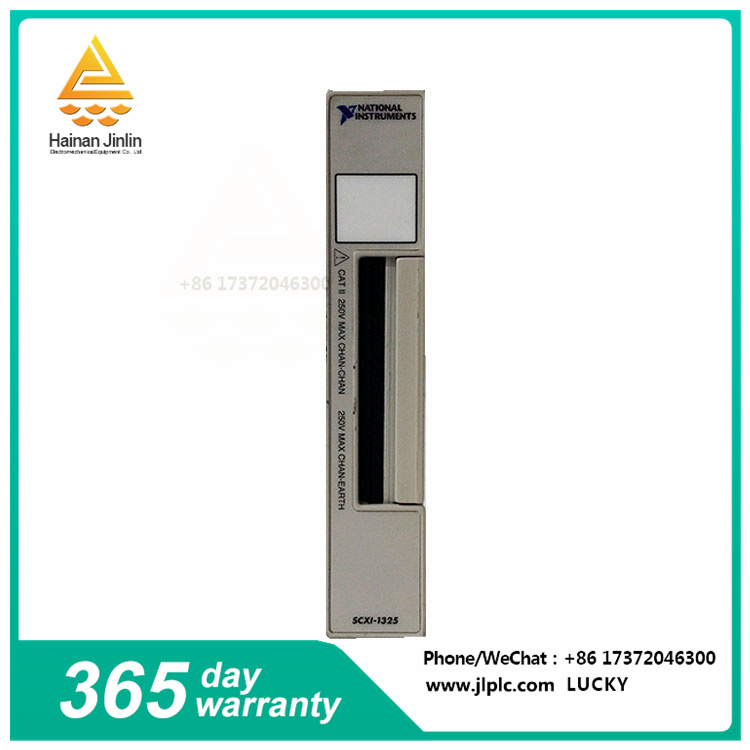

The SCXI-1325 is a high voltage junction box designed for secure connection to the SCXI-1124 analog output module. It has 26 screw terminals, of which 2 are used to connect to the SCXI-1124 chassis ground and the remaining 24 are used for signal connection to the six output channels on the SCXI-1124 module. This design enables the SCXI-1325 to provide a comfortable and straightforward system when connecting and disconnecting signals from the user's system.
In addition, the SCXI-1325 provides 250 Vrms channel to ground and channel to channel isolation, making it suitable for a wide range of application scenarios and suitable for harsh industrial environments. The user can connect the sensor directly at the front BNC connector or screw terminal, making it easy to achieve current or voltage output in each output channel of the SCXI-1124.
In terms of applications, SCXI-1325 is widely used in a variety of scenarios, including laboratory measurement, automation control, test and measurement, monitoring and data acquisition. These features make the SCXI-1325 an efficient and reliable tool for automation and testing.
In summary, the SCXI-1325 high voltage junction box has a wide range of applications and powerful functions, suitable for a variety of automation and test applications requiring high precision and stable connections.
Advantages:
High voltage isolation and stability: The SCXI-1325 provides 250 Vrms channel to ground and channel to channel isolation, making it suitable for harsh industrial environments, effectively protecting equipment and operator safety. At the same time, it provides a stable signal connection, ensuring the accuracy and reliability of data transmission.
Powerful wiring capability: The box is equipped with 26 screw terminals, 24 of which are used for signal connections, which allows users to easily connect multiple sensors or signal sources to the SCXI-1124 analog output module for complex test and data acquisition tasks.
Wide range of applications: The SCXI-1325 is suitable for a variety of application scenarios, including laboratory measurement, automation control, test and measurement, monitoring and data acquisition. Its powerful functions and flexible connectivity make it able to meet the needs of different fields.
Ease of use: Users can connect the sensor directly to the front BNC connector or screw terminal, simplifying the connection process and improving work efficiency. At the same time, by matching connectors, the SCXI-1325 can be easily installed on the front panel of the host module for easy configuration and operation.
