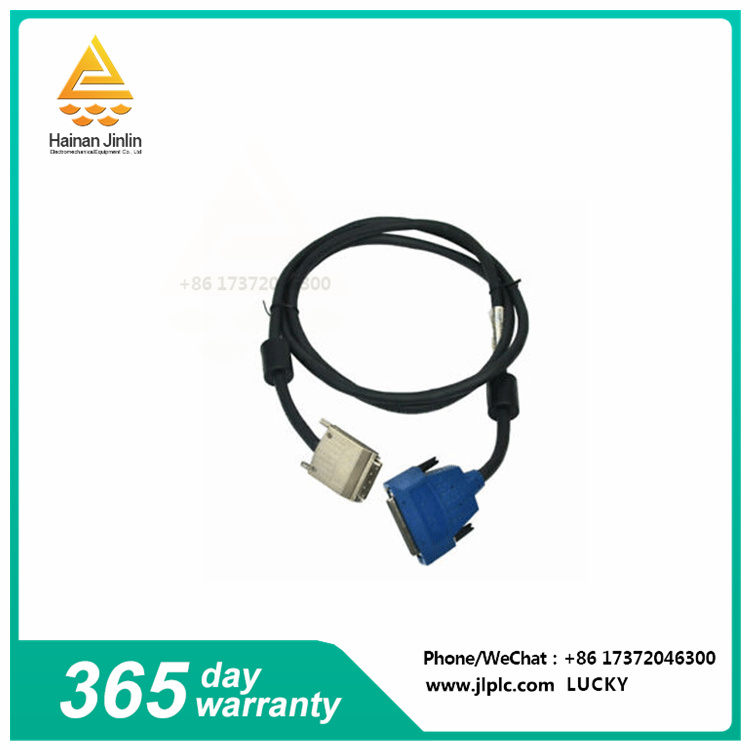

The SHC68-68-EPM is a high-performance shielded cable manufactured by National Instruments (NI) and designed for NI's X and M Series Data acquisition (DAQ) equipment. This cable has a unique construction feature that includes separate digital and analog sections, enabling efficient and accurate data transmission.
In terms of analog input, SHC68-68-EPM uses a separately shielded twisted pair, which helps to reduce crosstalk of high-speed boards and improve the quality of signal transmission. At the same time, its separately shielded analog output part also ensures the stability and accuracy of the output signal. In addition, the cable is equipped with twisted pair for critical digital I/O, further enhancing the reliability and efficiency of data transmission.
In terms of connectivity, the SHC68-68-EPM cable features a 68-pin 0.050 series D connector to 68-pin VHDCI connector design, which allows users to easily connect M-series devices to standard 68-pin accessories. It is worth noting that in order to access all pins on an M-series device with 2 connectors, two such cables may be required.
In terms of compatibility, the SHC68-68-EPM cable is in line with the RoHS Directive, which means that it meets environmental standards and can be used safely in a variety of environments. In addition, the cable has undergone rigorous quality testing and verification to ensure optimal performance and advanced query functions of the instrument.
Overall, the SHC68-68-EPM is a high-performance, high-quality, and highly compatible shielded cable for a variety of applications requiring high-precision data acquisition and processing.
The SHC68-68-EPM is a high-performance shielded cable from National Instruments (NI) designed for NI's X Series and M Series Data acquisition (DAQ) equipment. The following is an introduction to the functions and features of SHC68-68-EPM:
Features:
Data transmission: The SHC68-68-EPM cable is mainly used to connect DAQ equipment with related accessories, ensuring that analog and digital signals can be transmitted accurately and efficiently.
Signal stability: The cable is specially designed to reduce crosstalk from high-speed boards, thus ensuring signal stability and quality.
