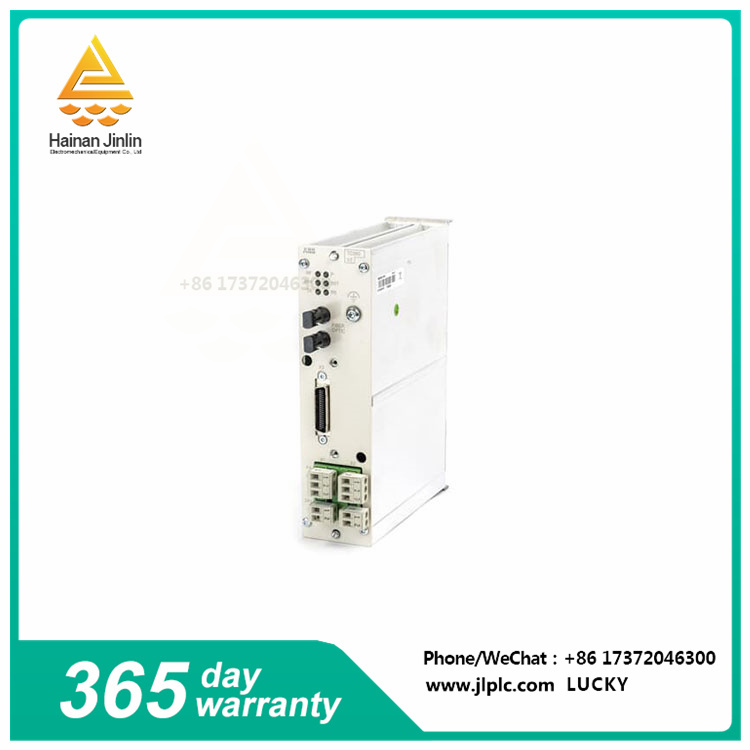

The TC560V2-3BSE022178R1 is a communication interface module from ABB designed for industrial automation and control systems. It allows data exchange and communication between different devices and systems via Ethernet or control network, thus realizing efficient real-time monitoring, control and data acquisition.
The module supports a variety of common communication protocols such as PROFIBUS DP, PROFIBUS PA, HART and Foundation Fieldbus to meet the connectivity needs of different types of devices and networks. This flexible configuration allows the TC560V2-3BSE022178R1 to easily adapt to the requirements of various specific applications and provide fast and reliable data exchange.
In addition to the communication function, the TC560V2-3BSE022178R1 has a number of other advanced features. It uses a four-core processor to run the Linux operating system, and provides a PC-like operating environment for PAC (Programmable Automation Controller), which makes PAC have real-time functions and realize efficient control. In addition, it also supports Win-GRAF (IEC61131-3 standard) software to develop control programs, and can use C language to develop data management applications, which greatly increases the flexibility of applications.
In addition, the TC560V2-3BSE022178R1 also has real-time capabilities, and the Xenomai real-time core architecture is built in, making it have excellent performance when processing real-time tasks. The hardware specifications are also quite impressive, including a Cortex-A9 processor, a 1.0 GHz quad-core design, 1 GB DDR3 SDRAM memory, and 8 GB eMMC Flash.
.In terms of interface, the TC560V2-3BSE022178R1 is equipped with three 10/100/1000BASE-T network ports, four serial ports (RS-232/485/422), two USB 2.0 (main end) and a 64-bit hardware serial number to ensure that each controller has a unique identification.
In summary, the TC560V2-3BSE022178R1 is a powerful and flexible communication interface module suitable for various industrial automation and control systems. It can meet the communication needs between different devices and networks, provide efficient data exchange and real-time control functions, and provide strong support for the development of industrial automation.
.In terms of interface, the TC560V2-3BSE022178R1 is equipped with three 10/100/1000BASE-T network ports, four serial ports (RS-232/485/422), two USB 2.0 (main end) and a 64-bit hardware serial number to ensure that each controller has a unique identification.
