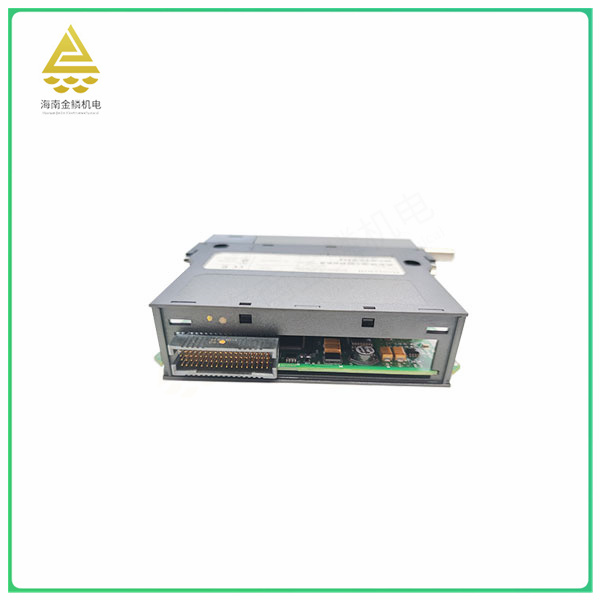

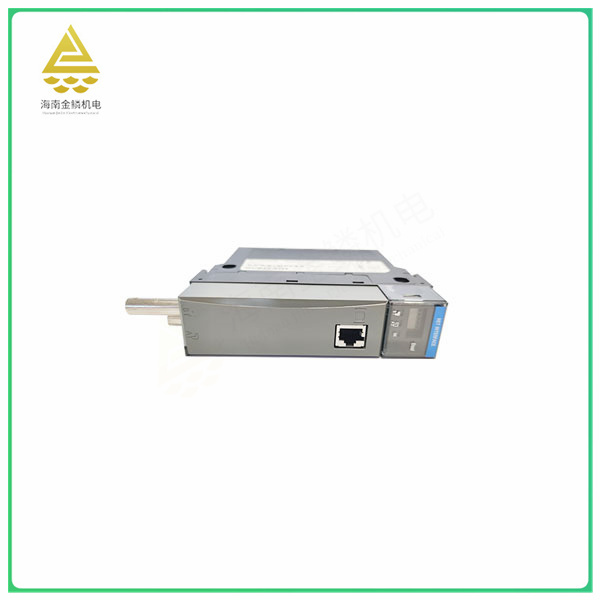

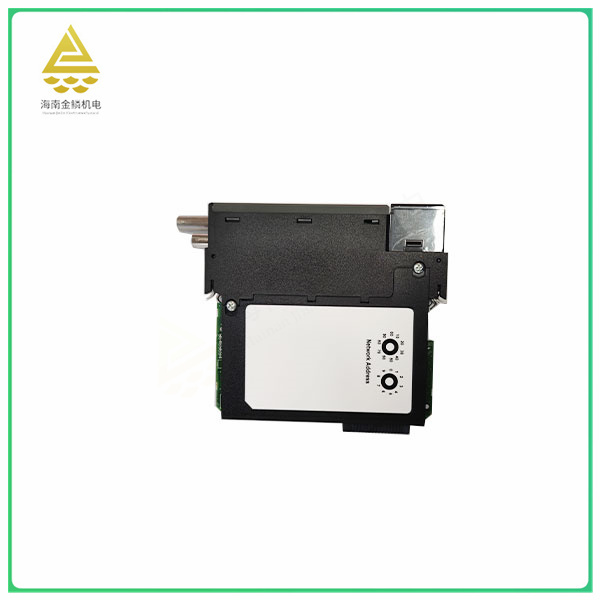

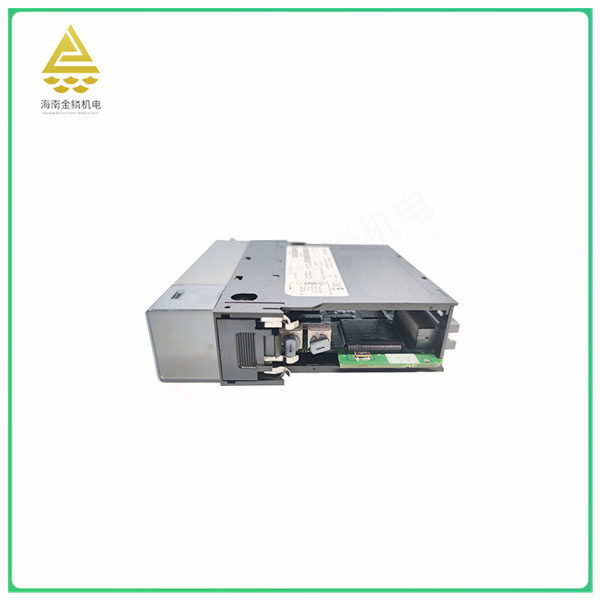

TK-CCR014 is a redundant network interface module with high reliability and redundancy for process control systems. It has the features of dual power supply redundant input, DC voltage isolation and reverse protection. Redundancy technology is to ensure the reliability and security of the system by adding redundant devices.
Power supply: Dual power supply redundant input, DC (9-36) V, typical DC24V, power consumption less than 4W.
Protection: DC1500V voltage isolation and reverse protection function.
Mechanical characteristics: The overall dimension is 132mm×105mm×52mm, the shell is IP30 protection grade, and the corrugated aluminum reinforced case is made. The installation mode is 35mmDIN rail mounting and the net weight is 800g.
TK-CCR014 Redundant network interface module is a device used to improve network reliability. It is commonly used in mission-critical network environments such as data centers, industrial control systems, and telecommunications equipment.
The main function of the redundant network interface module is to provide a backup network connection to ensure that the TK-CCR014 system can automatically switch to the backup connection when the main network connection fails, so as to maintain the continuity and reliability of the network.
TK-CCR014 Redundant network interface modules typically include two or more network interfaces, which can be Ethernet interfaces, fiber interfaces, or other types of network interfaces. The module monitors the status of the primary network connection and automatically switches to the standby connection when a failure is detected.
The TK-CCR014 redundant network interface module can also provide additional functions, such as load balancing and fault recovery. By distributing network traffic across multiple interfaces, TK-CCR014 improves network performance and reliability. In terms of fault recovery, the module can automatically detect and repair network faults to ensure the normal operation of the system.
In short, the TK-CCR014 redundant network interface module is an important network device that can improve network reliability and continuity, ensuring the continuous operation of mission-critical systems.
TK-CCR014 is a highly reliable redundant network interface module for process control systems. It has the following characteristics:
High reliability: The module adopts redundant configuration, which increases the reliability and security of the system.
Dual power redundant input: The module has dual power input, which improves the reliability of the power supply.
DC voltage isolation and reverse protection: The module has DC voltage isolation and reverse protection functions to prevent damage to the module caused by high voltage or reverse connection.
Rugged: The module's housing is reinforced with an IP30 grade aluminum housing, which is resistant to harsh environments.
Easy installation: The module adopts 35mm DIN rail mounting method, convenient and fast.
