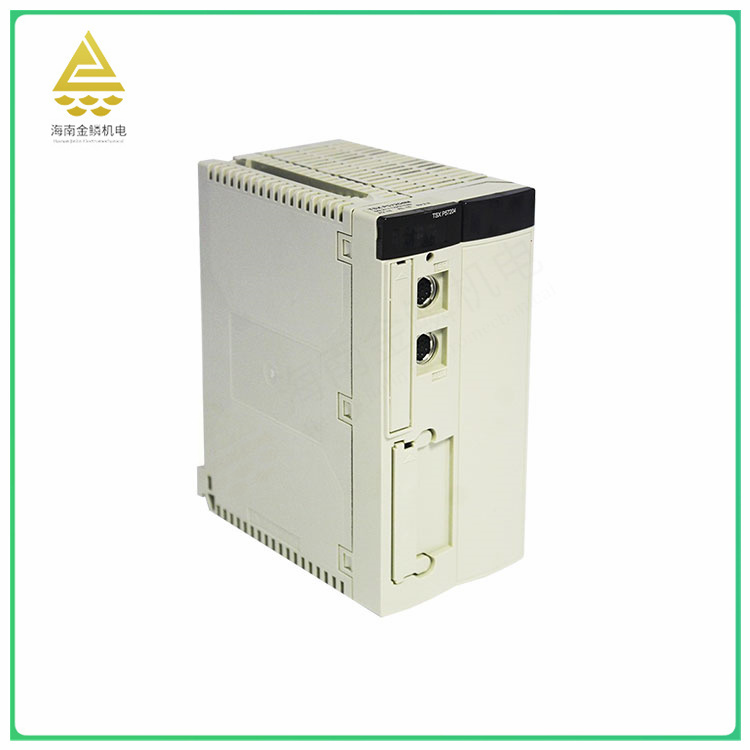

Model: TSXP57204M frame
Parameters: Storage capacity and maximum number of bus/network modules: 160Kb Integrated, maximum 768Kb on PCMCIA card; 2 network (SV≥2.3),4AS-I bus,1CANopen bus,1 fieldbus
The TSXP57204M is a Schneider product, and specific product descriptions may vary by model and configuration.
Product parameters:
The specific parameters of TSXP57204M include:
Rated voltage: 120V AC
Rated current: 1.5A
Output voltage: 48V DC
Output current: 3.2A
Dimensions: 173mm x 85mm x 44mm
Weight: About 2.3kg
Manufacturer: Schneider Electric
Part number :TSXP57204M
Product or component type :Unity Processor
Software name :Unity Pro
Number of racks :16 4/6/8 slots, 8 12 slots
Number of slots :128, 64, 96
Discrete input/Output processor capacity: 1024 inputs/outputs
Analog I/O processor capacity :80 I/O
Number of application-specific channels :%3C= 24
Number of process control channels :%3C= 10 Up to 30 simple cycles
Integrated connection type: non-isolated serial link 2 Female miniature DIN RS485 19.2 kbit/s
Memory description: Internal RAM(with PCMCIA card)160 kB of data
Internal RAM(with PCMCIA card)768 kB program
Internal RAM(without PCMCIA card)160 kB of programs and data
PCMCIA card 1 6384 kB Additional data storage
System overhead :0.3 ms fast task, 1 ms main task
Mark :CE
Local signal :1 LED green processor RUN (RUN)
1 LED red I/O module or configuration failure (/O)
1 LED red processor or system failure (error)
1 yellow LED activity on the TER or AUX terminal port (TER)
Current consumption :850 MA 5V DC
Module format: Double precision
Product weight :0.52 kg
Shipping weight :2 kg
