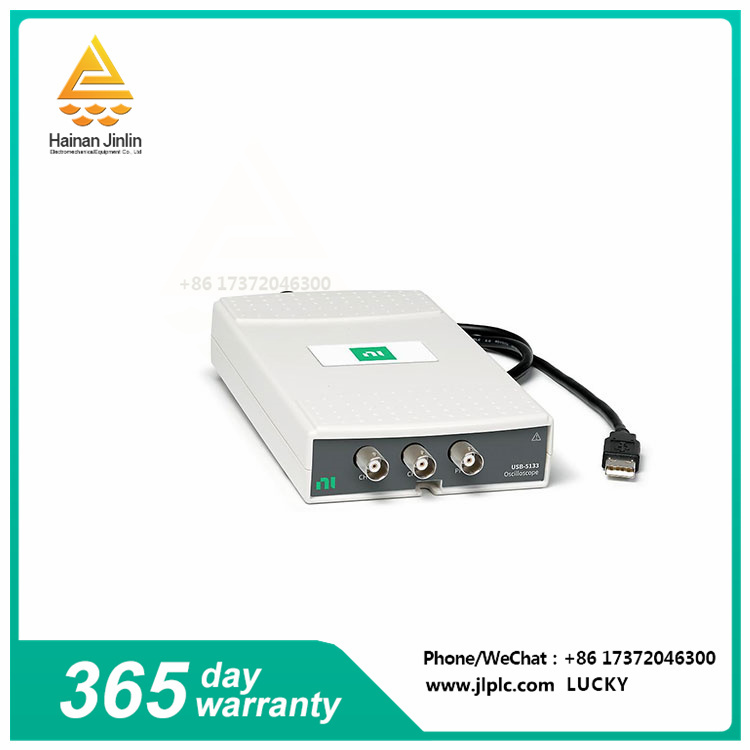

The USB-5133 is an 8-bit digitizer/oscilloscope developed by National Instruments (NI). It has a sampling rate of 50 MS/s on a bisynchronous sampling channel and includes 10 input ranges from 40 mVpp to 40 Vpp. The digitizer is compliant with 8 MB of on-board memory and can be used for extended data capture.
The USB-5133 digitizer has a bus-powered and plug-and-play structure, making it the ideal choice for portable applications, desktop applications, and OEM applications. At the same time, it is part of the DAQmx software platform, a powerful and scalable platform for measuring, controlling and monitoring real-time data. DAQmx is compatible with a wide range of NI hardware devices, including USB-5133, and provides high-bandwidth, high-precision data acquisition capabilities.
In terms of packaging, USB-5133 uses a simple outer packaging, and the model and basic performance of the items in the box can be viewed through the label. After opening the package, it mainly contains the host, USB parallel cable, CD-ROM, and manual accessories. Among them, the host is packaged by anti-static bag, and the contents of the CD-ROM and manual can be downloaded to the corresponding electronic version on NI's official website.
Overall, the USB-5133 is a powerful, widely used digitizer/oscilloscope for a variety of applications requiring high-speed, high-precision data acquisition.
Advantages:
High performance: The USB-5133 provides a sampling rate of 50 MS/s on dual synchronous sampling channels, which is fast enough for many applications to capture changes in high-speed signals.
Wide input range: It offers 10 types of input range from 40 mVpp to 40 Vpp, which allows it to adapt to different amplitude signals and enhances the flexibility of its application.
Large on-board memory: The USB-5133 digitizer meets the standard of 8 MB of on-board memory, which means it is capable of storing large amounts of data and is suitable for applications that require long periods or large amounts of data acquisition.
Portability and ease of use: The bus powered and plug and play features of this digitizer make it ideal for portable, desktop and OEM applications. In addition, its small size, easy to carry, can be connected to the PC directly transfer data.
Software support: The USB-5133 includes the NI LabVIEW SignalExpress LE interactive measurement workbench, which allows users to quickly collect, analyze and display data without programming, which greatly reduces the threshold of use.
