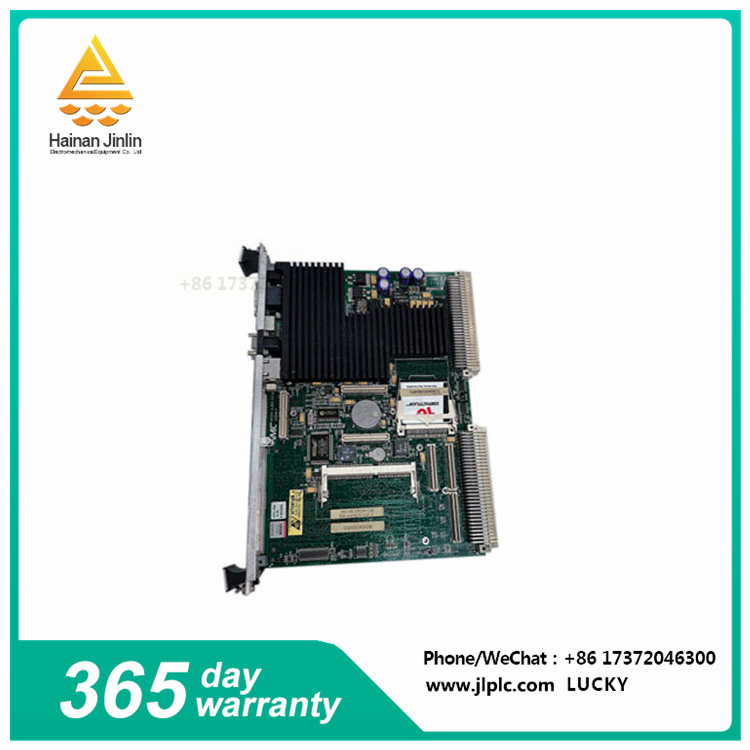

The VMVME-7698-345 350-017698-345 B is a high-performance VME bus module with a wide range of advanced functions and features to meet the needs of a wide range of industrial automation and control systems.
First of all, this module has a standard VME bus interface, which can be easily integrated into the existing VME system to achieve seamless connection with other VME devices. This compatibility makes it excellent for building large, complex industrial automation systems.
Second, the VMVME-7698-345 module has high reliability, which is a major feature of GE products. It uses high-quality electronic components and advanced manufacturing processes to ensure its long-term stable operation. In addition, in order to meet the requirements of high reliability in military and aerospace fields, the module may also adopt reliability measures such as redundant power supplies to cope with unexpected situations and ensure the continuous and stable operation of the equipment.
In order to meet the needs of different working environments, the VMVME-7698-345 module usually has a wide temperature operating range and can work normally under extreme temperature conditions. This allows it to perform well in a variety of harsh industrial environments.
In terms of hardware configuration, the VMVME-7698-345 module uses the Celeron Socket 370 processor, which is a processor with 32-bit addressing and 64-bit data bus. It also comes with an Intel AGP SVGA controller with MMX, which provides excellent graphics processing power. In addition, the module integrates an onboard fast Ethernet controller that supports 10BaseT and 100BaseTX interfaces for easy network communication with other devices.
In terms of storage, the VMVME-7698-345 module has dual-port DRAM, which provides high-speed data access capabilities as part of the VMEbus. The system and video BIOS are provided in reprogrammable flash memory for easy user upgrade and configuration.
Overall, the VMVME-7698-345 350-017698-345 B is a full-featured, high-performance VME bus module. With its high compatibility, high reliability, wide temperature operating range and powerful hardware configuration, it is the ideal choice for industrial automation and control systems.
Features:
Celeron Socket 370 processor
64-bit Intel ® AGP SVGA controller with 2 MB SGRAM
Onboard fast Ethernet controller with 10BaseT and 100BaseTX interfaces
Onboard Ultra DMA/33 hard disk and Foppy drive controller with VMEbus P2 I/O
Two high-performance 16550 compatible serial ports
The PS/2 keyboard and mouse ports are located on the front panel
VME64 connector
VME/VME64 single-board computers based on the VMIC VMIVME-7698 single-slot Celeron Slot 370 processor feature an Intel Celeron processor with MMX™. Celeron processors have 32-bit addressing and 64-bit data buses. The onboard DRAM is connected to the VMEbus via dual ports. The system and video BIOS are provided in reprogrammable flash memory. The VMIVME-7698 provides users with three 82C54-compatible 16-bit timers (in addition to the system timer). These timers are mapped in the I/O space and are fully programmed by software.
