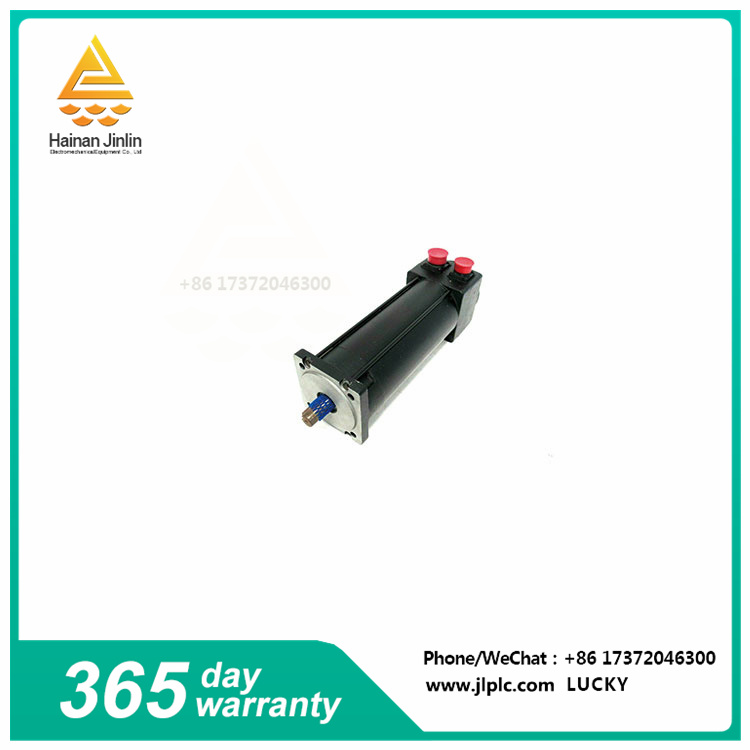

The 1326AB-B740E-M2L servo motor is an Allen-Bradley/Rockwell Automation Bulletin 1326 Torque Plus series servo motor. It can operate at a maximum speed of 3,400 RPM, a maximum output power of 12.7 kilowatts and a rated motor torque of 50 N-m or 450 pounds, one inch of rated motor torque at a rated motor voltage of 460 volts AC. The 1326AB-B740E-M2L servo motor also supports continuous stall current ratings of 32 amps and peak stall current ratings of 33.2 amps or 50 amps. The peak stall current rating depends on the type of Allen-Bradley Bulletin 1394 shaft module used by the motor. The 1326AB-B740E-M2L servo motor features a 4-inch ferrite magnet stack to reduce friction.
Allen-Bradley/Rockwell Automation 1326AB-B740E-M2L servo motors are AC servo motors in the Allen-Bradley Torque Plus series. Please note that this Allen-Bradley servo motor can be replaced with the new Elwood brand version of the 1326AB-B740E-M2L servo motor. The Elwood 1326 servo motor can replace the Allen-Bradley 1326 servo motor in the traditional series of 1326AB, 1326AS, F Series, H Series (S Series), N Series and W Series. All components for mounting and connecting the Elwood 1326AB-B740E-M2L servo motor, such as windings, connectors and mounting hardware, are OEM components and RoHS compliant.
Allen-Bradley/Rockwell Automation's 1326AB-B740E-M2L servo motor is the Torque Plus series of servo motors. Features TENV construction, UL-certified insulation system, 3-phase sinusoidal stator magnetic field for smooth low-speed operation, 100% continuous rated output torque (0 RPM) at motor stall, and the ability to mount vertically at an Angle with the shaft facing up or down for increased efficiency and optimal performance. The 1326AB-B740E-M2L servo motor can operate at 460 volts AC or 380 volts AC. It outputs 12.7 kilowatts of output, and its system has a continuous stall current of 32 amps. Its maximum rated motor speed is 460 RPM at 3400 volts AC and 2800 RPM at 380 volts AC.
