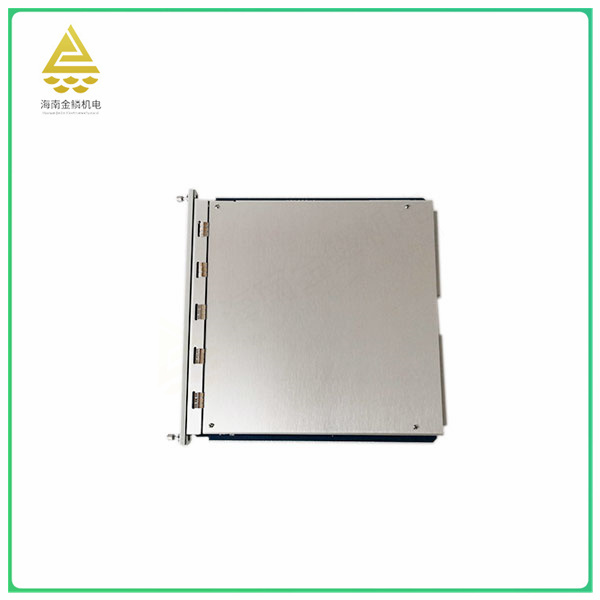

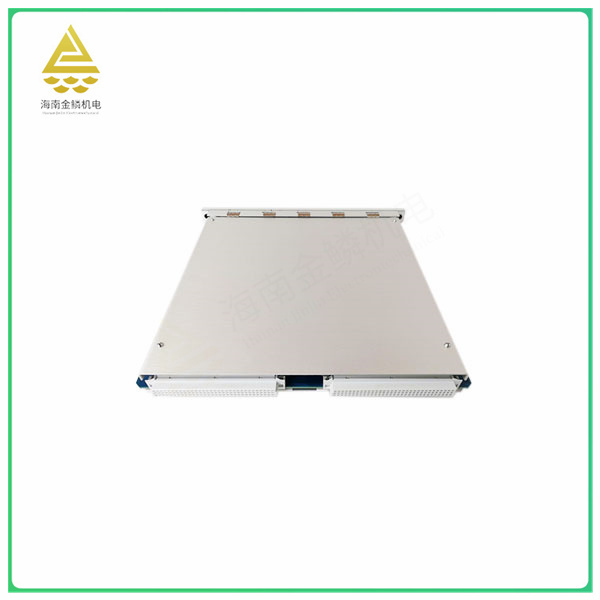

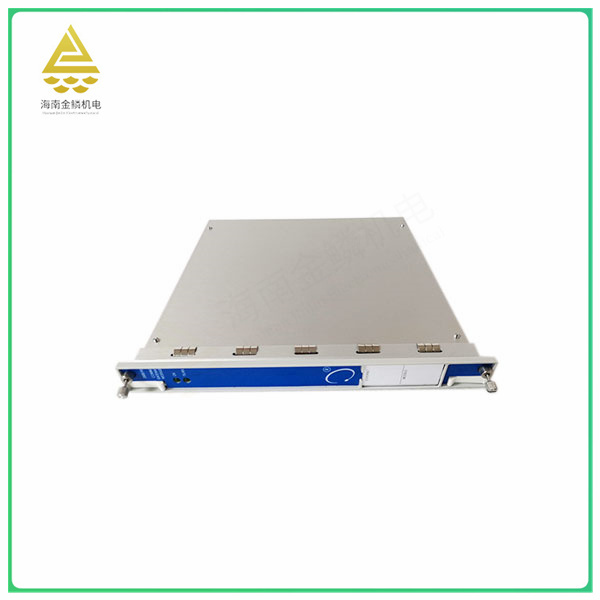

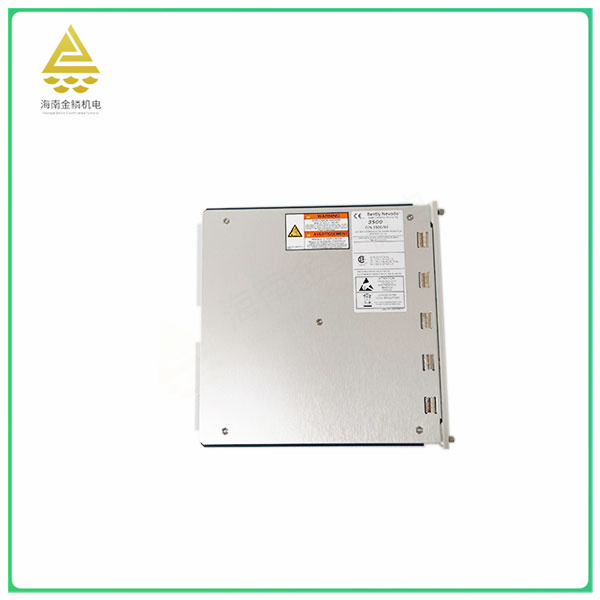

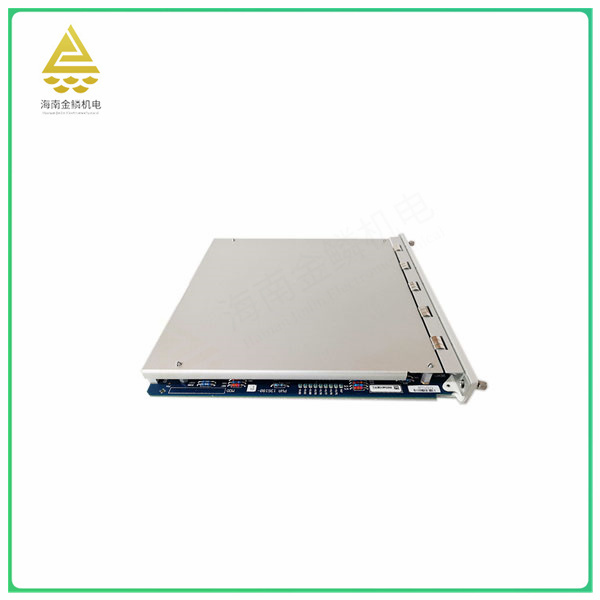

The Bently 136180-01 is a communication gateway for monitoring turbine operation and belongs to the Bently 3500 series of monitor boards. It can monitor the vibration, displacement and other parameters of the steam turbine, and transmit the monitoring data to the host computer or monitoring platform through the communication network to realize remote monitoring and fault warning.
Technical specification
The BENTLY 3500/92 136180-01 incorporates advanced mechanical vibration monitoring technology to monitor the vibration status of mechanical equipment in real time and transmit the data to the control system for analysis and processing. It can help
Helps users identify mechanical problems in a timely manner, thereby reducing mechanical damage and downtime.
Product parameter
● Frequency response range: 10Hz ~ 1kHz
● Frequency resolution: 0.1Hz
● Acceleration range: 0 ~ 25mm/s2
● Acceleration resolution: 0.01mm/s2
Sampling frequency: 20kHz
Featuring high precision, high stability and high reliability, the Bently 136180-01 is suitable for various industrial automation control systems, such as power, chemical, petroleum and other fields. It can improve the reliability and stability of the equipment, reduce downtime and maintenance costs, but also improve the accuracy and efficiency of the equipment, reduce production costs and improve product quality.
In addition, the Bently 136180-01 offers several advantages. First of all, it can achieve remote monitoring and fault warning, improve production efficiency and equipment safety. Secondly, it can be integrated with a variety of mainstream PLC and servo systems to achieve more efficient production line and equipment control. Finally, it can also be configured and debugged through software, which is convenient for users to customize and control according to actual needs.
In short, the Bently 136180-01 is a communication gateway with high reliability, high precision and high stability, which is suitable for various industrial automation control systems and plays an important role in ensuring production safety and stable operation of equipment.
The 3500/92 Communication Gateway module provides a wide range of all rack monitoring values and status communication capabilities with process control and other automation systems using both integrated Ethernet TCP/IP and serial (RS232/RS422/RS485) communication capabilities. It also allows with 3500 rack configurations
Software for Ethernet communication and data acquisition software. Supported protocols include:
.Modicon@Modbus@ protocol (via serial communication)Modbus/TCP protocol (using
Serial Modbus variant over TCP/IP) Ethernet communication)
Brick has a Bently Nevada protocol (used to communicate with 3500 Rack configuration and data collection
The Ethernet connection to 3500/92 is a 10BASE-T star RJ45 connection
Configure an Ethernet network.
