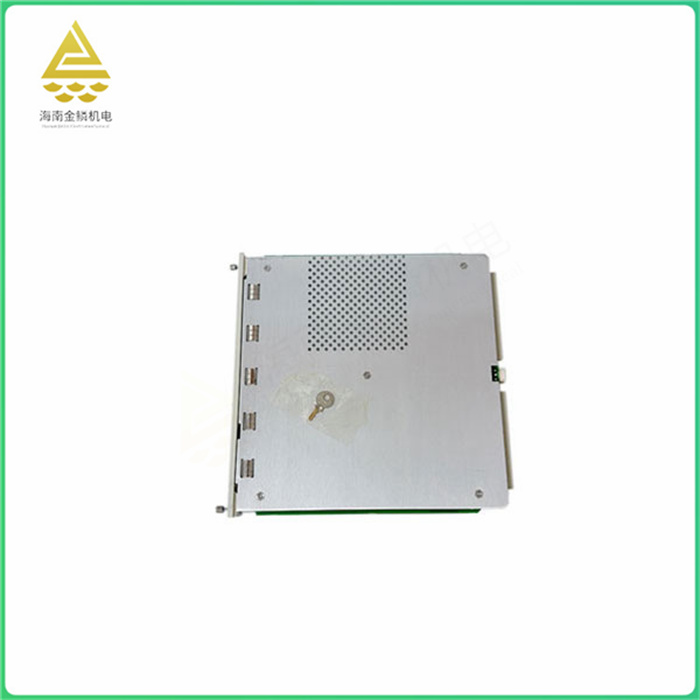

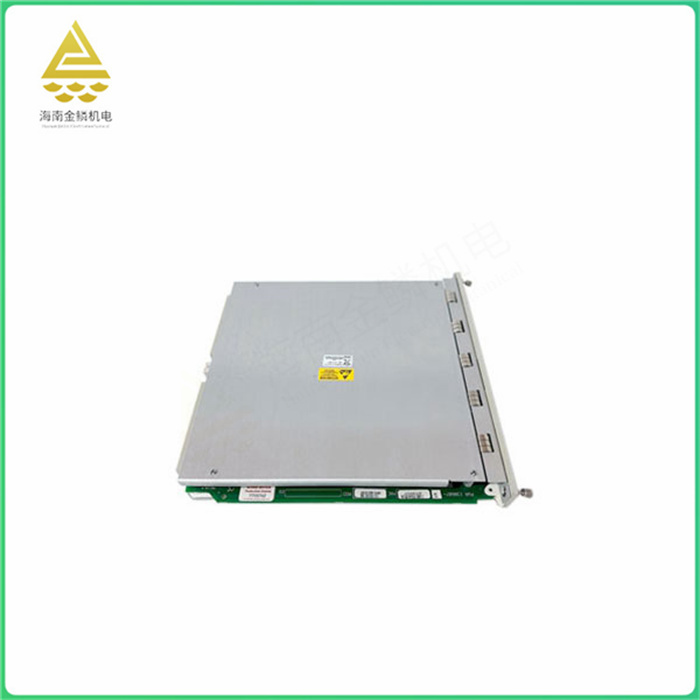

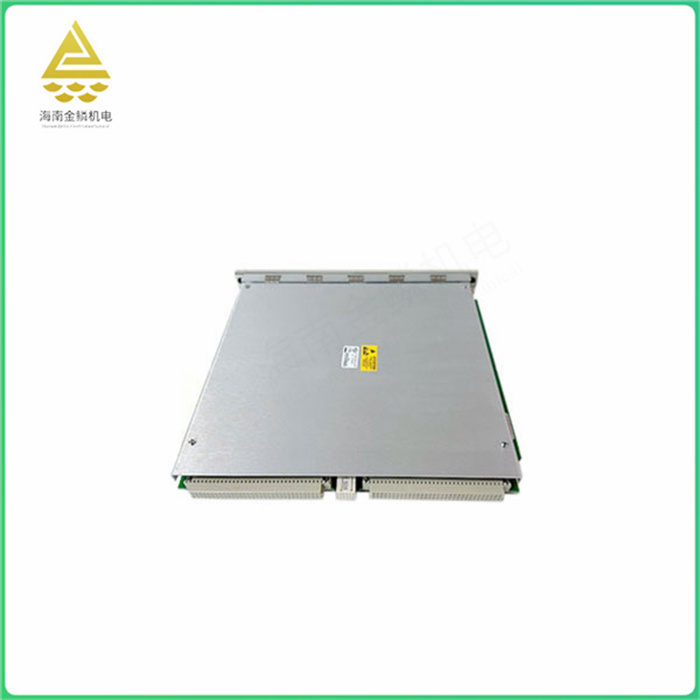

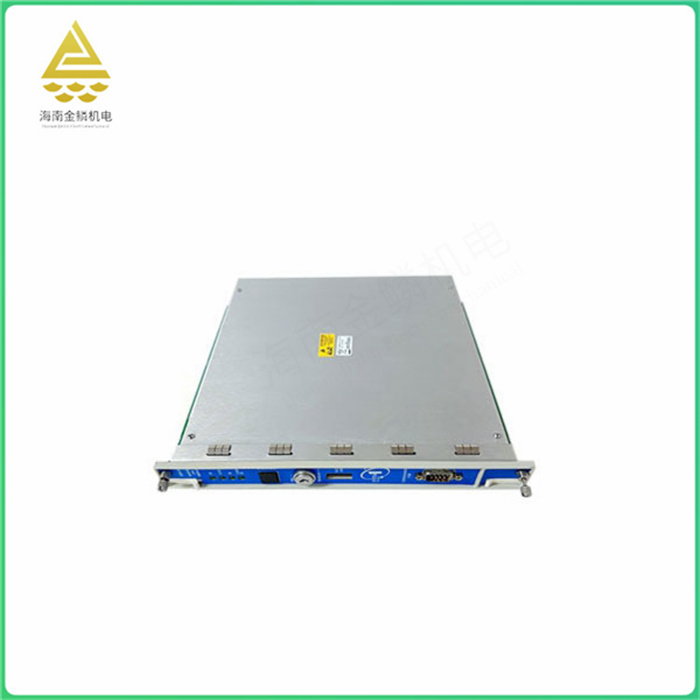

Product name :BENTLY 3500/22M 138607-01 transient data interface
Product Model: 3500/22M 138607-01
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (system 1 condition monitoring and diagnosis software and 3500 system configuration software). The TDI combines the capabilities of a 3500/20 rack interface module (RIM) with the data acquisition capabilities of a communications processor such as TDXnet.
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (system 1 condition monitoring and diagnosis software and 3500 system configuration software). The TDI combines the 3500/20
The capabilities of interface modules (IM) and the data acquisition capabilities of communication processors such as TDXnet.
In cabinet 3500, the TDI is installed in a slot close to the power supply. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient dynamic (waveform) data and pass this data to the host software via an Ethernet link. For more information, see the Compatibility section at the end of this document.
Static data capture is standard in TDI. However, enabling the disk with an optional channel will allow TDI to capture dynamic and high-resolution transient data. The TDI integrates communication processor capabilities within 3500 racks.
Although TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no impact on the normal operation of the overall automatic mechanical protection monitoring system. Each 3500 rack requires a TDI or RIM, always occupying slot 1 (next to the power supply).
