Product parameter
Model: 1394-SJT22-A
Capacity: 8MB
Dimensions: PCMCIA
Interface: ATA
Phone size: 85.6 x 54 x 3.3 mm
Weight: 10 g
Operating temperature: 0 to 60 °C (32 to 140 °F)
Storage temperature: -20 to 85 °C (-4 to 185 °F)
Description

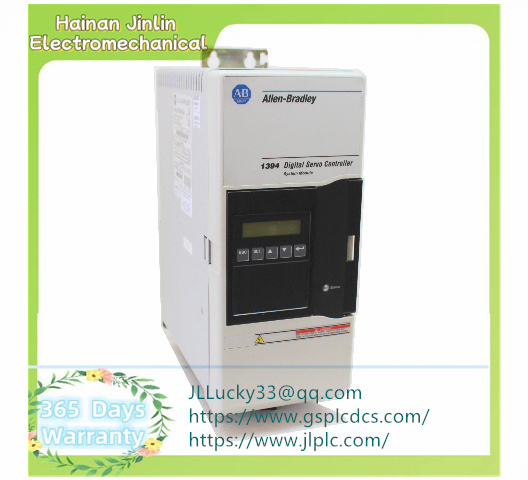

The 1394-SJT22-A is A 1394 GMC turbocharging system module that is part of Allen-Bradley's 1394 multi-axis motion control system. The system module is basically applied to analog servo systems, providing digital servo drivers with +/ -10VDC interface.
The system module is mounted on the leftmost side of the 1394 assembly, which includes the shaft module, the bus connector and the terminal resistor. Each module is installed by sliding locking mechanisms and fasteners that are perfectly aligned with each other.
The system module has built-in RS232/422 communication and supports DH485 communication protocol. It has the option to install Remote I/O communication (RIO) and AxisLink communication interfaces.
When installing this system module or any other product in a 1394 system, the installation location must not exceed an ambient temperature of 50.0 degrees Celsius and be installed on a flat, stable vertical surface. The installation panel must have minimal impact and vibration, and the environment must be clean and free of moisture, oil, dust and corrosive gases.
