Product parameter
Model: AB 1394-SR9A
Capacity: 8MB
Dimensions: PCMCIA
Interface: ATA
Phone size: 85.6 x 54 x 3.3 mm
Weight: 10 g
Operating temperature: 0 to 60 °C (32 to 140 °F)
Storage temperature: -20 to 85 °C (-4 to 185 °F)
Product overview

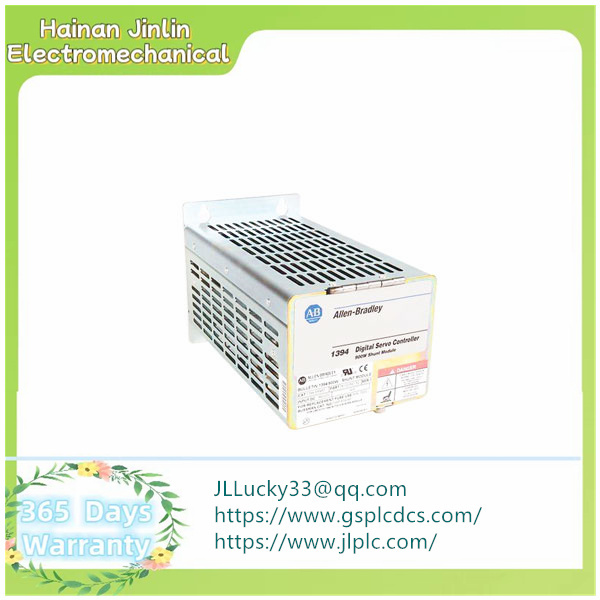

The AB 1394-SR9A is an external shunt module manufactured by Rockwell Automation (Allen-Bradley). It is mainly used for current measurement and protection of the drive system. The shunt module is a precision resistor that calculates the current flowing through the driver by measuring the voltage drop at both ends.
Product characteristics
High precision current measurement: The ability to accurately measure the current in the driver provides reliable data for motor control and protection.
High power capacity: Rated power up to 300W, suitable for various loads.
Strong durability: Rugged design, suitable for industrial environments.
Easy installation: simple installation and easy maintenance.
Main application
Motor drive system: used to measure the current of the motor driver, to achieve overcurrent protection, short circuit protection and other functions.
Power electronic equipment: used to measure the current in power electronic equipment and monitor the operating status of the equipment.
Industrial automation systems: Used for current measurement and protection of various industrial automation systems.
Technical parameters (Please refer to the product data manual for specific parameters)
Model: 1394-SR9A
Rated power: 300W
Resistance value: 4 ohms
Cooling method: natural cooling
In short, the AC servo controller shaft is an important part of the AC servo controller used to control the motor movement, with high precision, high speed, high response and other characteristics, to achieve accurate position, speed and torque control.
