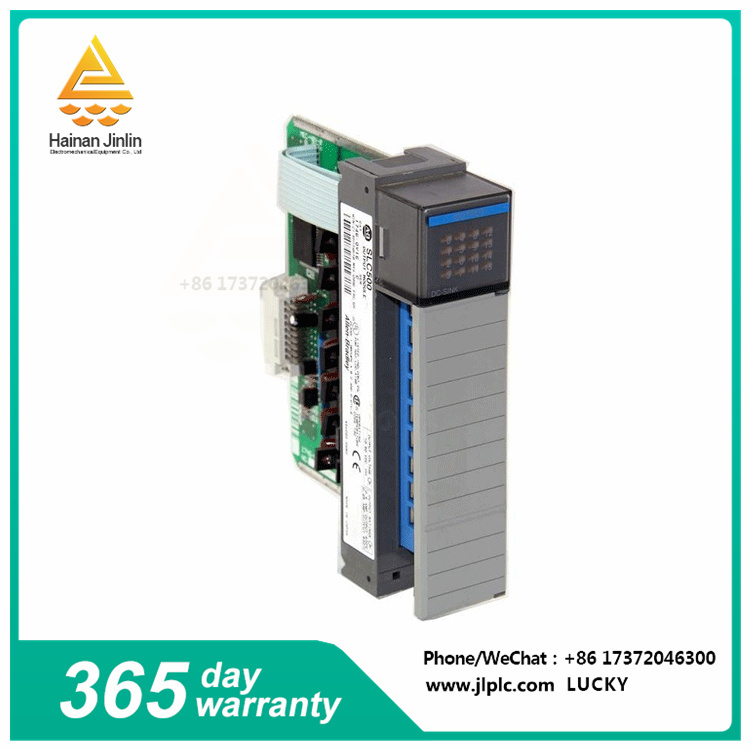

1746-OX8 | Digital contact output module With 8 individually isolated high-current relay contact outputs

The Allen-Bradley 1746-OX8 is an SLC 500 digital I/O module. The output module has 8 individually isolated high-current relay contact outputs. It is also A normally open relay output module with relay contact ratings of up to 30 A at 120 V AC, up to 15 A on and 1.5 A off at 240V AC. At A continuous 5 A of two AC voltages, the module has a turn-on of 3600 VA and a breakpoint of 360 VA. For DC voltage, the maximum on and off current is 0.22 A at 125 V DC and 1.2 A at 24 V DC. Continuous 1 A at 125 volts DC and 2 A at 24 volts DC are 28 VA on and off. This module provides status indicators. It can be installed in a case and has an open housing. You must remember to install and remove modules only when the case is not powered on.



It has an output current of 3 A at 120 volts AC and 1.2 A at 24 volts DC. The module operates in a voltage range of 5-125V AC and 5 to 265 V DC. The backplane current consumption is 0.085 A at 5 V DC and 0.090 A at 24 V DC. It also has a maximum resistive load signal delay of 10 milliseconds for both OFF and ON. The module has a minimum load current of 10 mA (5 V DC) and a maximum off state leakage of 0 mA. Please note that the continuous current per module should be limited to 1440 VA. The module has NEMA standard ICS 2 to 230 anti-noise capability and 1500 volts electro-optic isolation between the I/O terminals and the control logic. The operating temperature range of the module, especially for the air around the system, is 0 to 60 degrees Celsius, and the storage temperature range is -40 to 85 degrees Celsius. Its operating vibration has a peak displacement of 0.015 inches at 5 to 57 Hz and an acceleration of 2000 g at 2.5 to 2000 Hz. The module has a working impact of 10 g. The 1746-OX8 module has a heat dissipation of 0.825 watts per point, a minimum dissipation of 2.590 watts, and a total dissipation of 8.60 watts.
