Brand: Allen-Bradley/Rockwell Automation
Series: ControlLogix
Part number 1756-A5XT
Product Type ControlLogix-XT Chassis

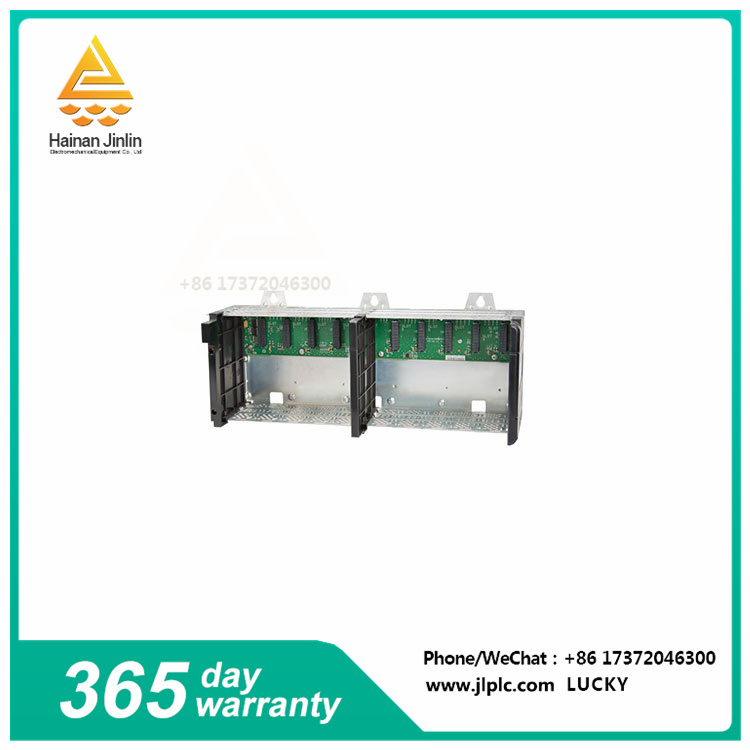

Allen-Bradley/Rockwell Automation 1756-A5XT 5-slot ControlLoGIX-XT chassis is the backbone of industrial ControlLogix systems. The 1756-A5XT 5-slot chassis is designed for horizontal backplane mounting only, but any module can fit into any slot for flexible mounting. Chassis backplane provides high-speed communication paths between the ControlLogix modules installed in the chassis. The 1756-A5XT chassis features a conformal coating for use in ISA G3 class environments. The 1756-A5XT chassis operates in a temperature range of -25 to 70 degrees Celsius. The non-operating temperature range is -40 to 85 degrees Celsius. The relative humidity (non-condensing) around the installation chassis should be between 5% and 95%. The chassis is rated for operating vibration of 2 G and frequencies of 10 to 500 Hz.
The 1756-A5XT chassis has an operating impact rating of 30 G and a non-operating impact rating of 50 G. At 1.2 V DC, the maximum backplane current per slot is 1.5 amps. At 3.3 volts DC, the maximum backplane current per slot is 4 amps. At 5.1V DC, the maximum backplane current per slot is 10 amps or 6 amps. At 24 V DC, the maximum backplane current per slot is 2 amps. Peak power consumption is 4.4 watts. The 1756-A5XT chassis measures 20 x 30 x 8 inches. The approximate weight of the case is 3.2 pounds. For functional grounding, the recommended wire size is 8 AWG solid or stranded copper wire with a temperature rating of 90 degrees Celsius or higher. The 1756-A5XT chassis complies with the T5 North American temperature specification.
