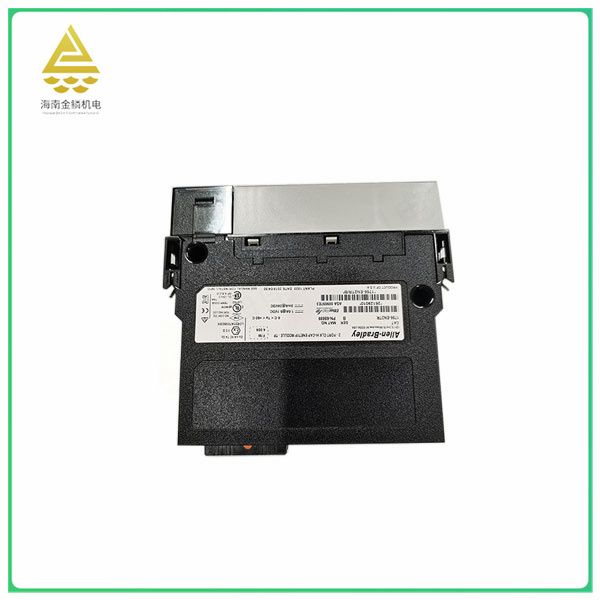

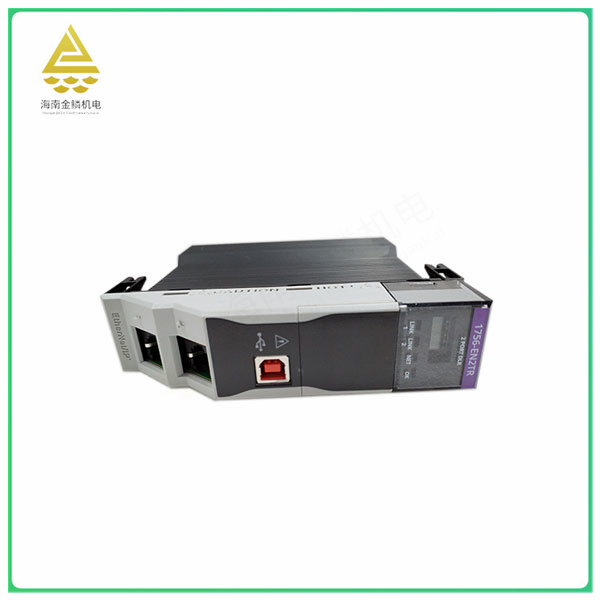

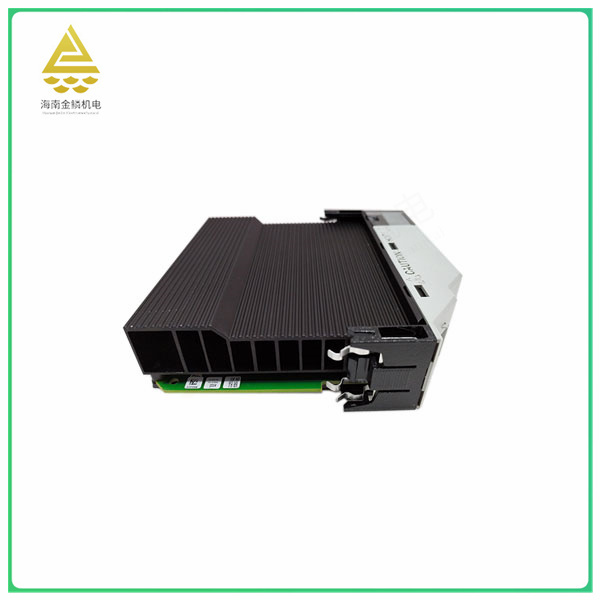

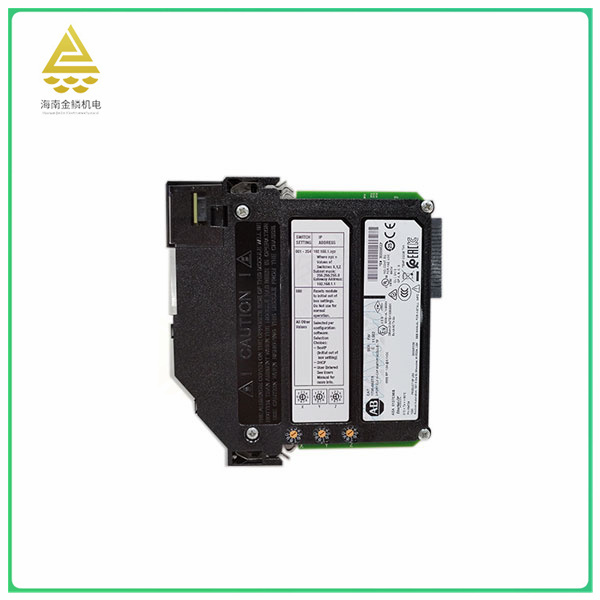

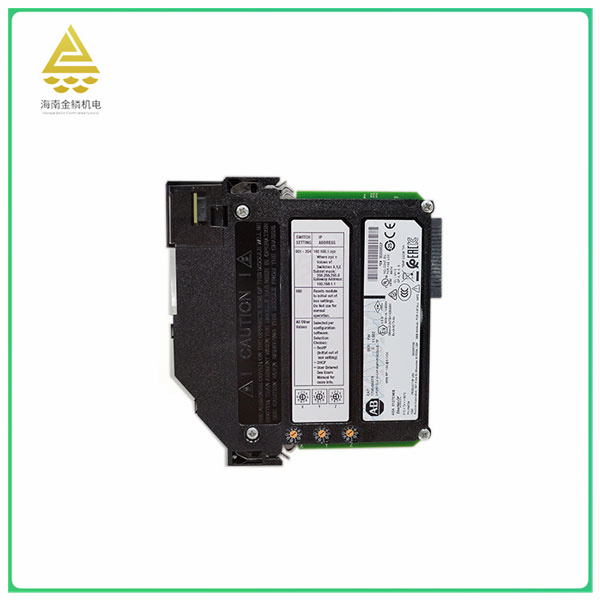

The 1756-EN2TR is an Ethernet /IP (Ethernet Industrial Protocol) dual-port interface communication module belonging to the Allen-Bradley ControlLogix family of communication modules. It supports regular messaging, real-time I/O messaging, and information exchange for applications such as real-time control, time synchronization, and motion. At the same time, it allows the simultaneous transmission of security and control data as well as diagnostic information, in line with CIP security standards.
With Ethernet speeds of 10-100 Mbps, the 1756-EN2TR module can handle large amounts of data and control information while guaranteeing fast and reliable data transfer. Due to its dual-port design, it can perform multiple tasks at the same time, such as communicating with remote devices and controlling local devices. In addition, it has a diagnostic function that can detect and report any communication errors or failures, thus improving the reliability and security of the system.
Compared to traditional relay control systems, the 1756-EN2TR offers greater flexibility and scalability. Due to its use of the Ethernet /IP protocol, it can easily communicate with other Ethernet devices, making it easy to expand the size and functionality of the system. In addition, because of its digital communication method, it can greatly improve the communication speed and reliability, while reducing the number of cables and connectors, reducing the complexity of the system.
Overall, the 1756-EN2TR is an efficient, reliable and flexible communication module for a variety of industrial automation applications requiring high speed, high capacity, remote communication and control.
The 1756-EN2TR module has the following functions:
Supports regular messaging, real-time I/O messaging, and information exchange for applications such as real-time control, time synchronization, and motion.
Allows simultaneous transmission of security and control data as well as diagnostic information, in accordance with CIP security standards.
With Ethernet /IP communication rates of 10-100 Mbps, it can handle large amounts of data and control information, ensuring fast and reliable data transmission.
With a dual-port design, multiple tasks can be performed simultaneously, such as communicating with remote devices and controlling local devices.
It has a diagnostic function, which can detect and report any communication errors or faults, improving the reliability and security of the system.
Supports integrated motion control over Ethernet /IP networks for up to 8 axes.
Supports sending messages to other Allen-Bradley controllers such as SLC 500, PLC-5 and MicroLogix controllers, compatible with human machine interface (HMI), monitoring and data acquisition (SCADA) communications with the same Allen-Bradley and even third-party products.
Supports embedded Ethernet communication for computers and programming workstations, eliminating the need to purchase expensive communication adapters to establish a connection to the controller.
The required cables are Class 5 or Class 6 cables, which can be made into communication cables.
In general, the 1756-EN2TR module has efficient, reliable and flexible communication functions, which are suitable for various industrial automation application scenarios requiring high speed, large capacity, remote communication and control.
