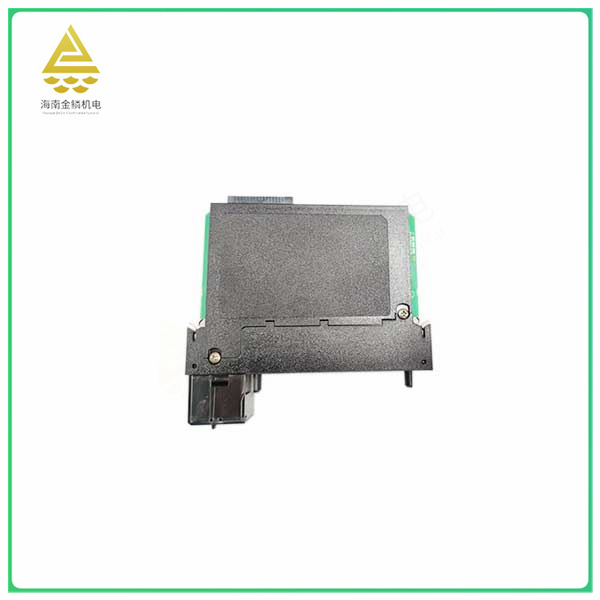

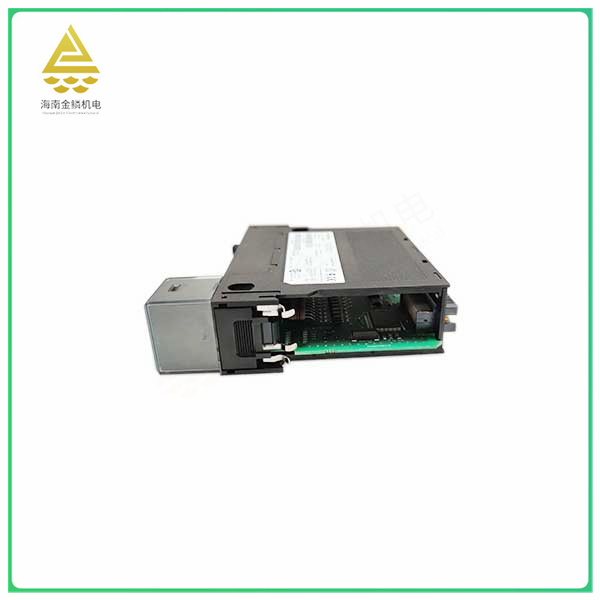

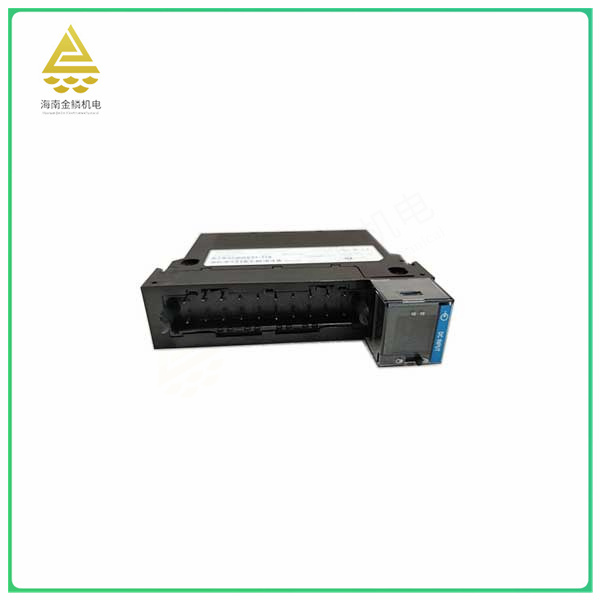

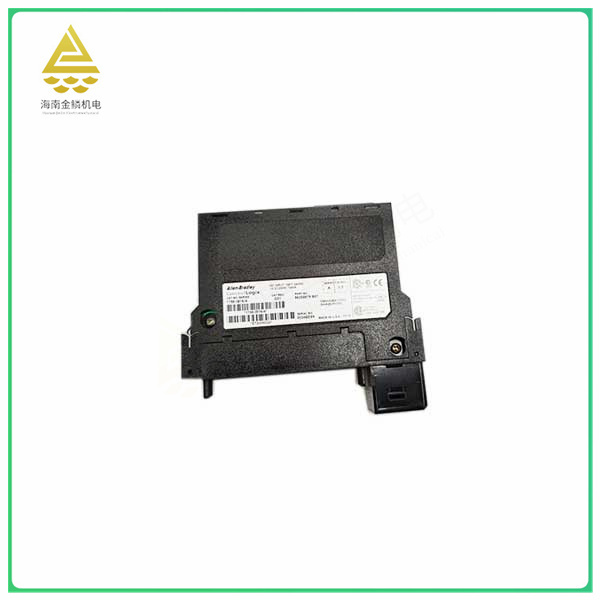

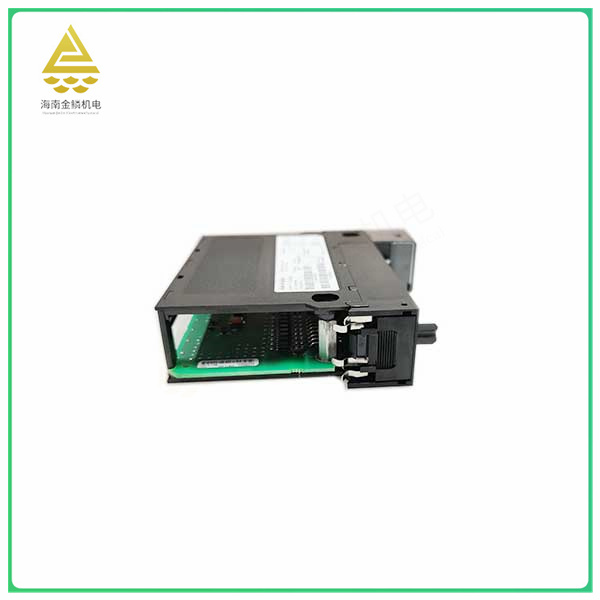

The 1756-IB16 is a 16-point DC input module produced by Allen-Bradley with eight points per group that can connect a variety of devices. This kind of module is usually used in automatic control system for signal acquisition and control.
Operationally, the 1756-IB16 module needs to be programmed and debugged using the corresponding programming software to achieve the required logic control functions. In addition, it also supports serial communication, through which signals can be transmitted and controlled.
Programming software for the 1756-IB16 module typically has the following functions:
Graphical programming: Provides a visual graphical programming interface that enables users to build programs in drag-and-drop mode, reducing programming errors.
Logic control: Support a variety of logic control functions, such as conditional statements, loop statements, timers, etc., can realize the processing of input signals and control the operation of output signals.
Input/output management: allows the user to configure and manage the input/output ports of the module, including the address allocation of the input signal, the configuration and mapping of the output signal.
Alarm processing: Support module alarm signal detection, processing and record, when abnormal conditions occur, can trigger the alarm and notify the operator.
Data processing: The input signal can be processed and analyzed, such as filtering, calculating average value, peak detection, etc., and the processed data can be stored or output.
Debugging and testing: Provides debugging and testing tools that enable users to simulate input signals, monitor output signals, and control module operations in order to verify program correctness and performance.
Security features: Support security features such as permission management, access control, and encrypted communication to ensure the security and stability of modules and systems.
Network communication: supports a variety of network communication protocols, such as Ethernet /IP, Modbus TCP, etc., and can exchange data and remote control with other devices or systems.
These functions make the programming software can easily program, debug and monitor the 1756-IB16 module, and realize the functions of logic control, signal acquisition and data processing of the automatic control system.
