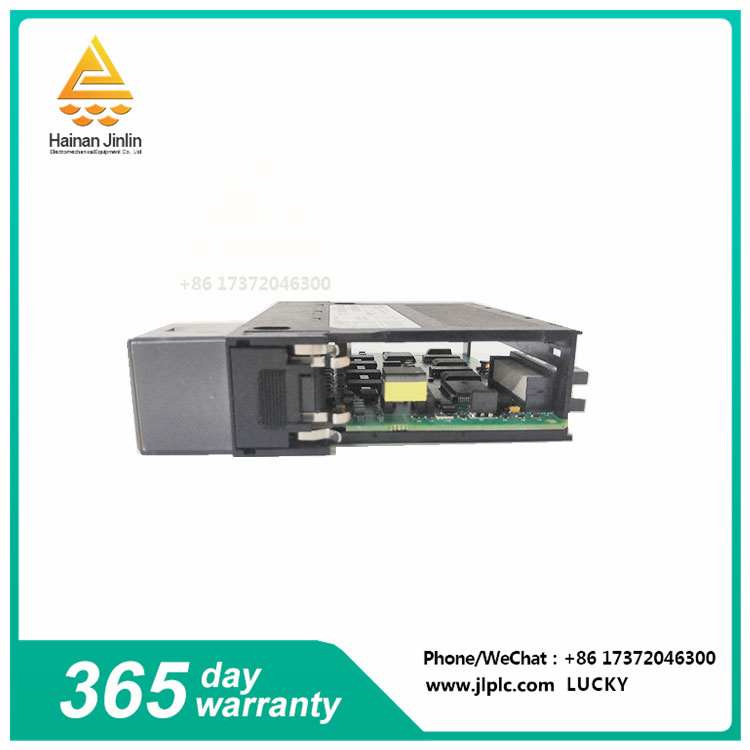

The 1756-IB16K is a 16-point, DC voltage input module manufactured by Rockwell Automation for their Allen-Bradley ControlLogix programmable logic controller (PLC) systems
1756-IB16K (Standard Input):
Operates in sink mode only. In sink mode, the module provides the current path for the sensor to complete the circuit when activated (high impedance).
Suitable for standard DC voltage input applications where all sensors share a common ground.
1756-IB16K (Variant with wider voltage range):
Might offer a wider DC voltage input range compared to the standard version (exact range depends on the specific model).
Otherwise, functionalities are similar to the standard 1756-IB16K.
Here's a breakdown of the functionalities common to both variations:
16 Input Channels: Monitors the voltage state (on/off) of up to 16 connected sensors or devices.
DC Voltage Operation: Typically operates with a DC voltage range between 10 and 31.2 volts (depending on the specific model variation).
PLC Integration: Integrates seamlessly with Allen-Bradley ControlLogix PLCs for real-time monitoring and control based on digital input signals.
