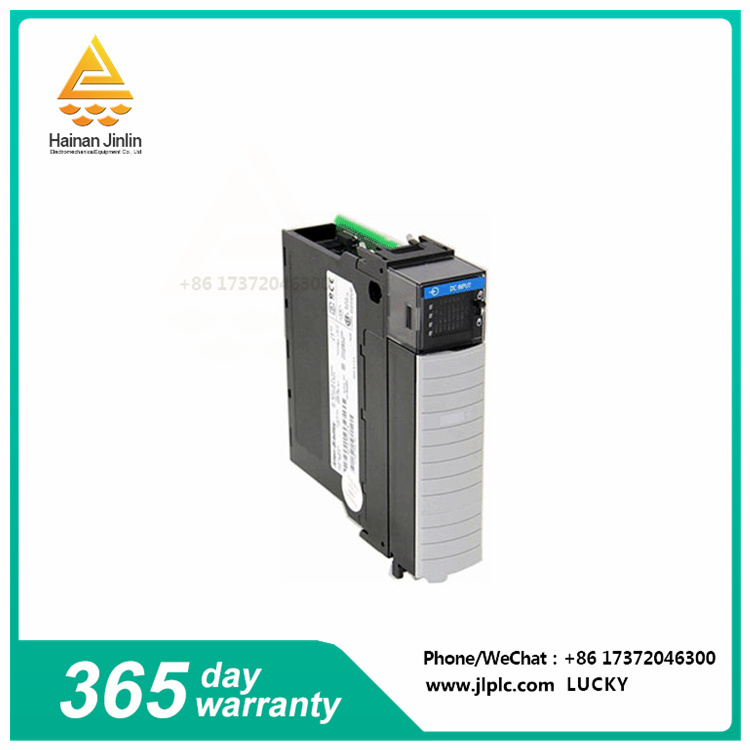

The 1756-IB32B is a 32-point convergent input digital DC voltage input module manufactured by Rockwell Automation for its Allen-Bradley ControlLogix Programmable logic controller (PLC) system.
Here's a breakdown of its features, and where you can find more information about it:
Features:
1756-IB32B Interfaces with external sensors or devices that provide digital on/off signals via voltage levels.
It can monitor up to 32 individual input channels, divided into two groups of 16 channels each.
Each channel runs in receive mode. In aggregation mode, the module provides a current path to the sensor to complete the circuit when activated (high impedance).
This design is suitable for applications where all sensors share a common ground connection.
Application (example):
Industrial control systems: Read on/off signals from buttons, limit switches or other digital sensors for control purposes within PLC systems.
Process monitoring: Monitor the status of valves, relays or other process equipment by reading their digital on/off signals.
Data acquisition: Digital data is collected from various sensors and devices for further processing and analysis by the PLC.
