Manufacturer Rockwell Automation
Brand Allen Bradley

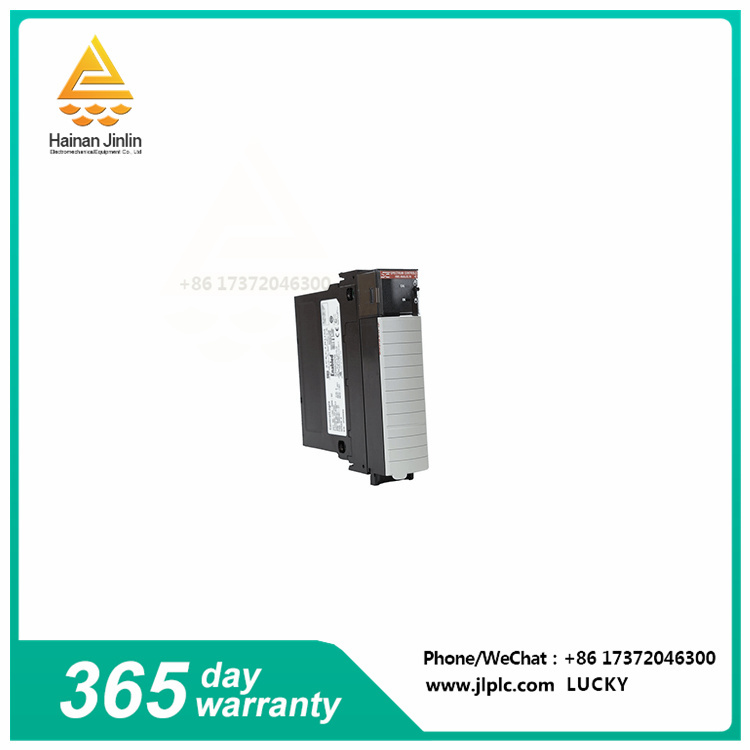

Part Number/Catalog Number: 1756-IF8HK
Series ControlLogix
Module Type HART analog input module
The 1756-IF8HK device is equipped with eight differential channels, allowing for excess supply voltage without damaging the device or even interfering with the signal path of other channels. The 1756-IF8HK model offers perfect disassembly and power insertion for easy maintenance; With electronic keying on the device, replacement errors can be avoided.
HART input and output modules are effectively designed to provide the benefits of full analog capacity and HART protocols through I/O modules that can be installed remotely or locally. The module is based on HART technology and can be directly connected to other modules. It is also designed in a way that meets all commercial requirements for plant upgrades, conversions and green Spaces.
The system performance of the device is enhanced by the ControlLogix Hart module, which is supported by standard analog data.
The model also has a 5 volt backplane current of 100 mA and a 24 volt backplane current of 3 mA. The model has a maximum power dissipation of 60 watts at 5.2 degrees Celsius and a peak heat dissipation of 13.7 BTU per hour.
The device has an open housing.
