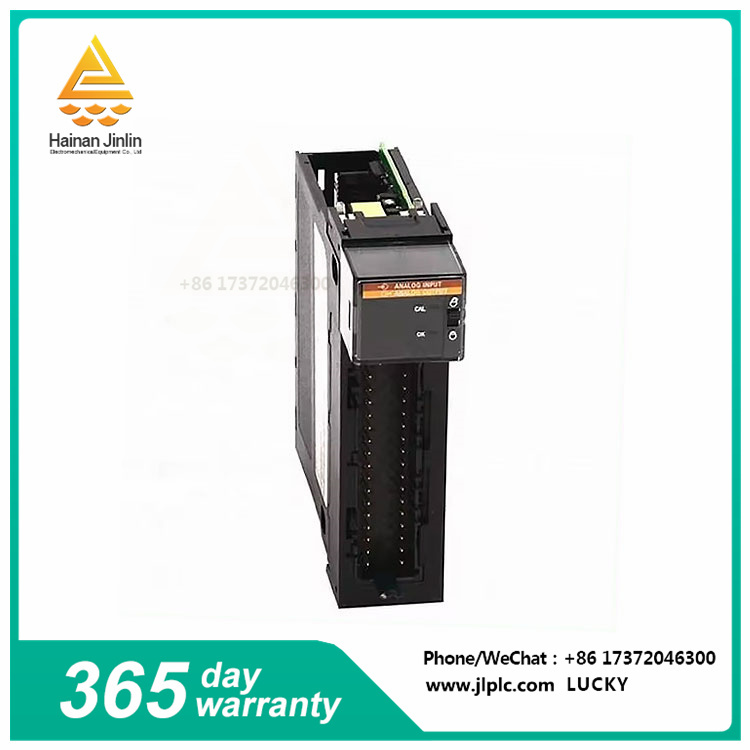

1756-IF8IK Isolated analog input module With 24-bit resolution

No.1756-IF8IK
Manufacturer Rockwell Automation
Brand Allen Bradley
Part Number/Catalog number 1756-IF8IK
Series ControlLogix
Module type Isolated analog input module
Channel Eight isolation channels
  • 1756-IF8IK    Isolated analog input module  With 24-bit resolution
Desciption
Manufacturer Rockwell Automation
Brand Allen Bradley
Part Number/Catalog number 1756-IF8IK
Series ControlLogix
Module type Isolated analog input module
Channel Eight isolation channels
The 1756-IF8IK is Allan Bradley's ControlLogix isolated analog input module that perfectly connects HART devices directly without any additional wiring or external HART multiplexers. By including this model, you can access more field-oriented device data, such as HART primary values, secondary values, third values, fourth values, and other device status information. Directly connected HART devices are managed separately by the model; It has 8 channels, each with a dedicated HART modem.

The communication device is coated with a polymer film that uniformly provides protection from harsh conditions.

The 1756-IF8IK has a maximum power consumption of 5.2 watts at 60 degrees Celsius. The device's IO ranges from 0 to 10 volts; It has a 24-bit resolution and can absorb 5.1 volts at 200 mA.

The 1756-IF8IK device provides detachable terminals for 1756-TBNH and 1756-TBSH. The model also consumes 24 volts of 150 or 400 mA. The variety of voltages allows the equipment to operate smoothly in a variety of challenging situations. This model dissipates 100 mA backplane current at 5 V and 3 mA backplane current at 24 V.
