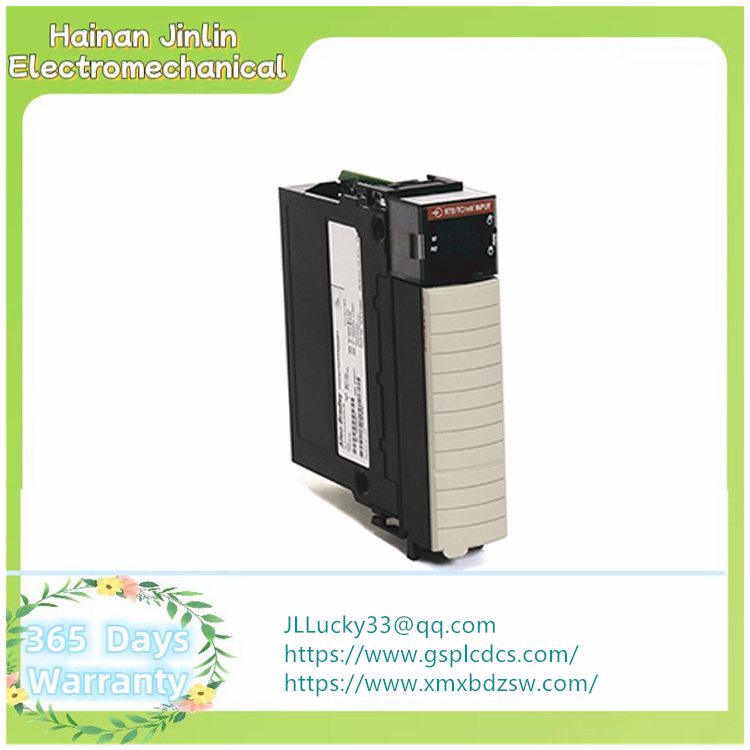

1756-IR12 | Input module | Used for receiving signal input

Directory number :1756-IR12

ControlLogix 12pt RTD Input module

ControlNet Communication rate: 5 megabits per second

Configuration: Redundancy

Input current: 970 MA at 5.1 volts DC, 1.7 MA at 24 volts DC

Cooling 17.4 BTU per hour

Power consumption: 5.1 watts

Slot width 1

Weight: 0.293 kg (0.64 lb)

The 1756-IR12 input module is mainly used to receive signal input and use it as part of the system. According to the different input signals, it can be divided into switching input and analog input two types.

The switching input module can receive a passive contact signal and connect it to the system. This module is usually used to receive water flow indicators, pressure switches, signal valves and other equipment alarm signals and feedback signals. There are many types of input modules on the market, including modules that can only receive normally open signal input, modules that can receive normally open or normally closed signal input through parameter Settings, and dual-input modules or even multi-input modules.

In addition, the 1756-IR12 input module also plays an important role in the field of construction engineering. During the design phase, designers can use the input module to enter and edit the basic information of the project, including the project name, geographical location, size, etc. During the construction phase, the construction personnel can use the input module to record key information during the construction process, such as material usage, staffing, progress, etc.
