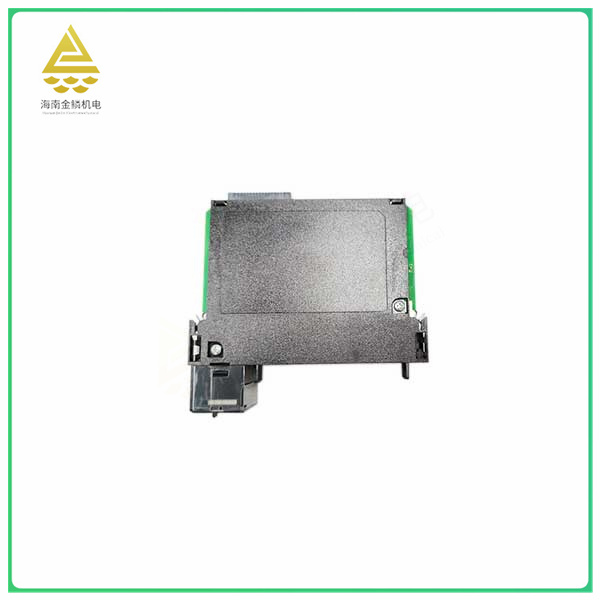

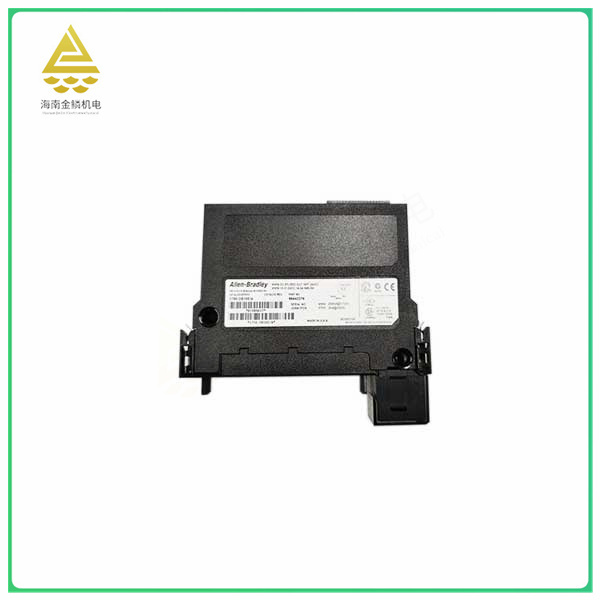

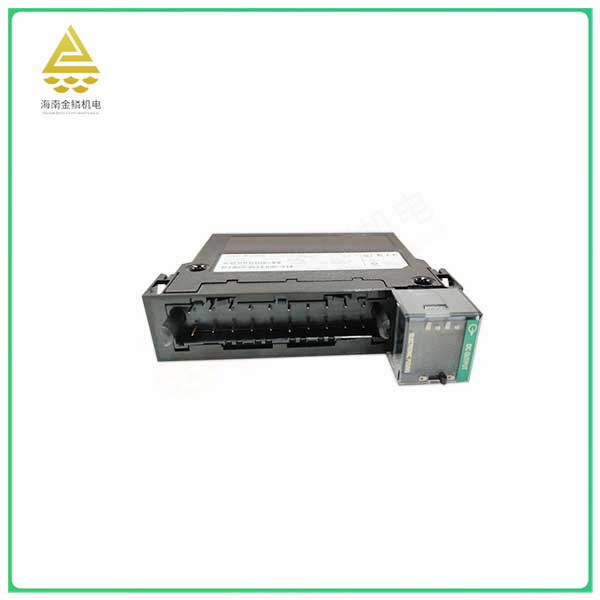

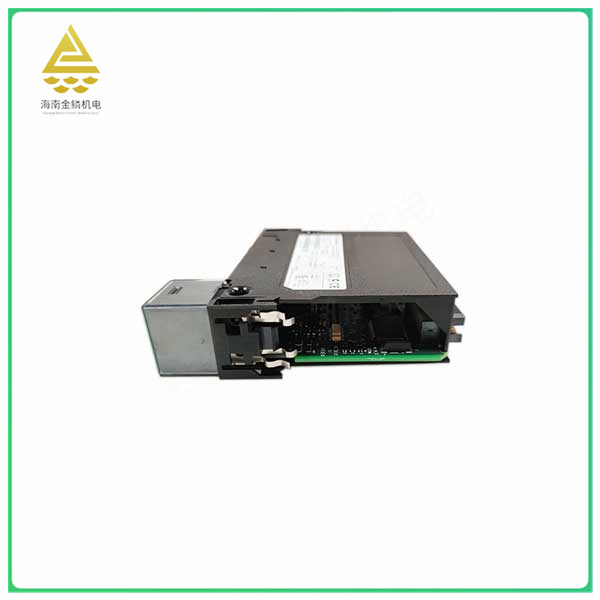

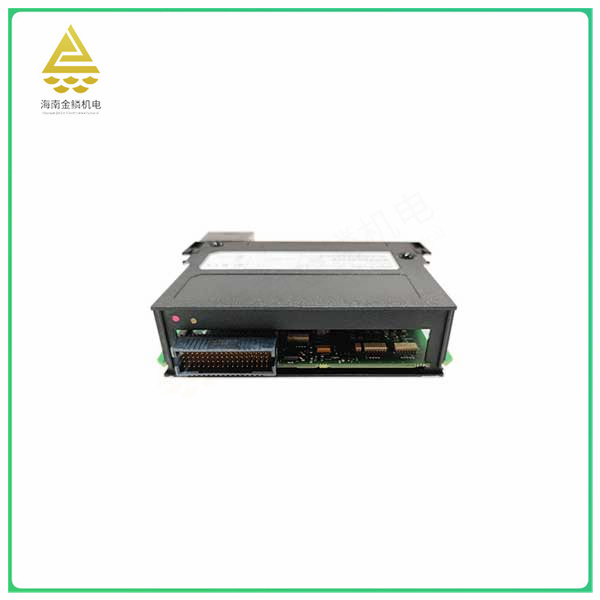

The 1756-OB16E is a single slot width module produced by Rockwell (Allen-Bradley) that is compatible with the 1756 ControlLogix controller. It can be mounted to any 1756 ControlLogix rack, including the 1756-A4, 1756-A17, 1756-A10, 1756-A13, and 1756-A17.
The 1756-OB16E features include:
As a discrete output module, it is a DC output module with an output voltage range of 10-31.2 VDC and a nominal value of 24VDC.
It has sixteen (16) output channels divided into two (2) electron fusion groups of eight (8) channels each.
It is commonly used to drive 24VDC rated devices such as relay coils, solenoid drive devices, indicators, alarms, and other similar electrical loads.
With a single slot width design, it is compatible with any 1756 ControlLogix controller and can be mounted to any 1756 ControlLogix rack.
Can be used as a local /O or distributed /O component.
Regarding its application field, according to some information, 1756-OB16E May be widely used in the field of industrial automation, for driving a variety of equipment requiring 24VDC power supply, such as relays, solenoid valves, indicators, etc. It can communicate with other modules through the backplane, realize distributed control and monitoring, and improve the operation efficiency of the entire production line.
Allen-Bradley 1956-0B16E is a discrete output module that is part of the ControlLogix Programmable Automation Controller (PLC) platform. The module is a DC output module, output voltage
The range is 10-31.2 VDC with a nominal value of 24VDC. It has sixteen (16) output channels divided into two (2) electron fusion groups with eight (8) channels. The module is typically used to drive 24VDC rated devices such as relay coils, solenoid drive devices, indicators, alarms, and other similar electrical loads.
The 1756-0B16E is a single slot width module that is compatible with any 1756 ControlLogix controller. It can be mounted on any 1756 ControlLogix rack, especially the 1756-A4;
1756-A17; 1756, A10; 1756-A13 and 1756-A17. In addition, it can be used as a local /O or distributed /O component.
The 1756-0B16E provides 1 A output current at 60°C(140°F) per channel, or 8 A output current at 60°C(140°F) per module. It has a surge current rating of 2A, 10ms per point, at
0°C(32*F)24 volt DC sea 2 seconds repeat - times. In addition, the minimum load current of the module is 3 mA per channel.
Each set provides built-in electronic fuses. The turn-off to turn-off output delay time for each output channel is up to 70 s nominal value /1 ms, and the turn-off delay time is up to 360 s nominal value /1 ms. It sucked it from the back
The current is 250 mA at 5v DC and 2 mA at 24 V DC, while the backplane requires a total power consumption of 1.32 watts and a large power consumption of 4.1 W(60°C(140"F)).
