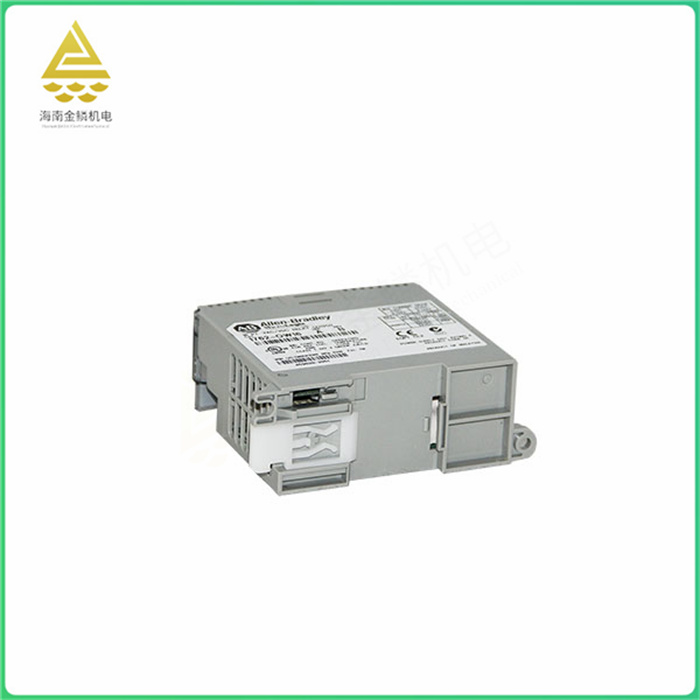

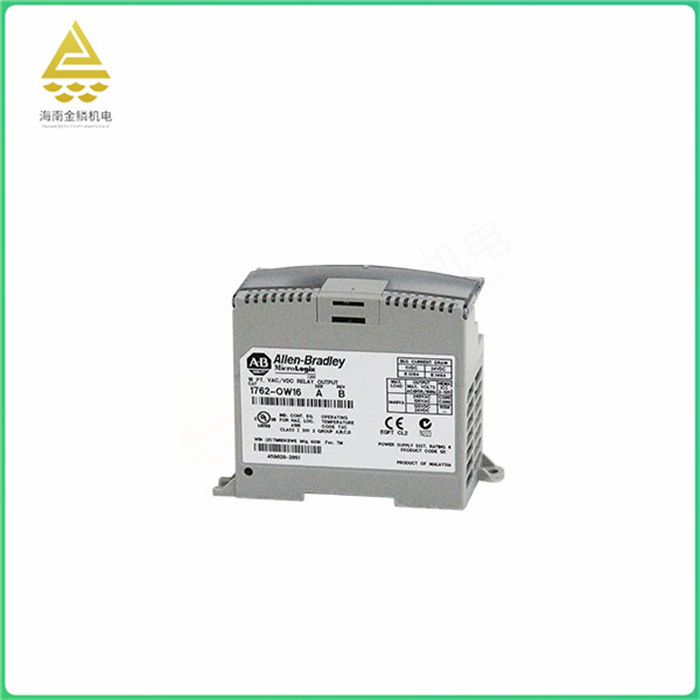

The 1762-0W16 is a MicroL ogix relay output expansion module. The module is used to enhance the output capabilities of the MicroL ogix 1100, 1200 and 1400 programmable logic controllers (PLCS). It is compatible for powering on and off electrical loads
Electricity.
The module has sixteen (16) relay contact outputs and operates in the 24-125VDC and 120-240 VAC voltage ranges. For ON to OFF and OFF to ON conversions, the signal delay time for each output channel is 10 ms. Each point of the module has A rated continuous current of 2.5A, each common point has a continuous current of 8A, and each module has a continuous current of 16A. The 1762-0W16 has two (2) output groups, each consisting of eight (8) channels. Group 0 consists of outputs 0-7, while group 1 consists of outputs 8-15.
1762-0W16 Relay output module is a common industrial automation control module, which can convert the control signal into the action of the relay to realize the on-off control of the circuit. The relay output module usually has multiple relay output channels, and different channels can be selected to achieve different control functions according to needs.
1762-0W16 Relay output module features include:
High reliability: The relay output module uses electromagnetic relay for signal conversion, which has high reliability and can ensure the stable operation of industrial automation control system.
Good safety: The relay output module has over-current protection, over-voltage protection and other functions, which can protect the safety of the circuit and equipment.
Strong adaptability: The relay output module can adapt to different control signals and load requirements, and can be used with different control equipment and systems.
Economical: The price of relay output modules is relatively low, which can reduce the cost of industrial automation control systems.
When using the 1762-0W16 relay output module, the following points need to be noted:
Select the appropriate relay output module, select the number of channels and output type according to the control signal and load requirements.
Verify that the voltage and current of the control signal meet the requirements of the relay output module.
During use, the relay output module should be regularly checked and maintained to ensure its normal operation.
During installation and use, follow the relevant safety regulations and operating procedures to ensure personal safety and equipment safety.
