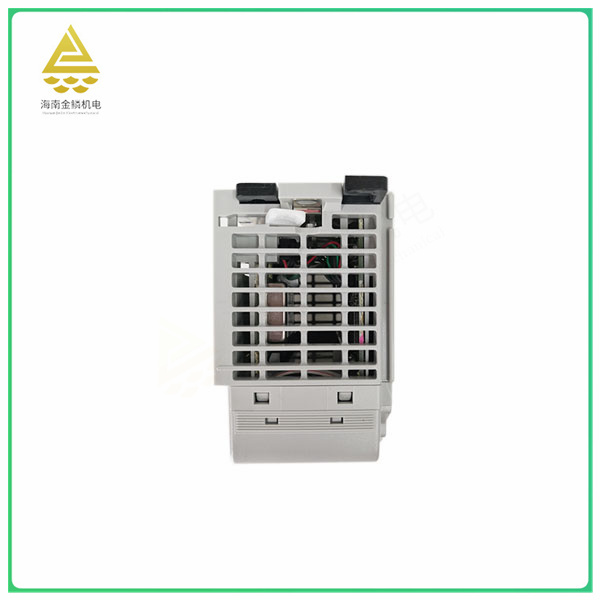

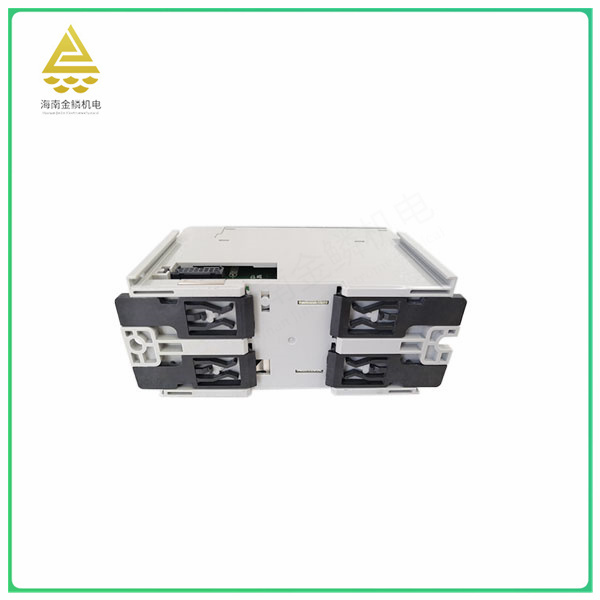

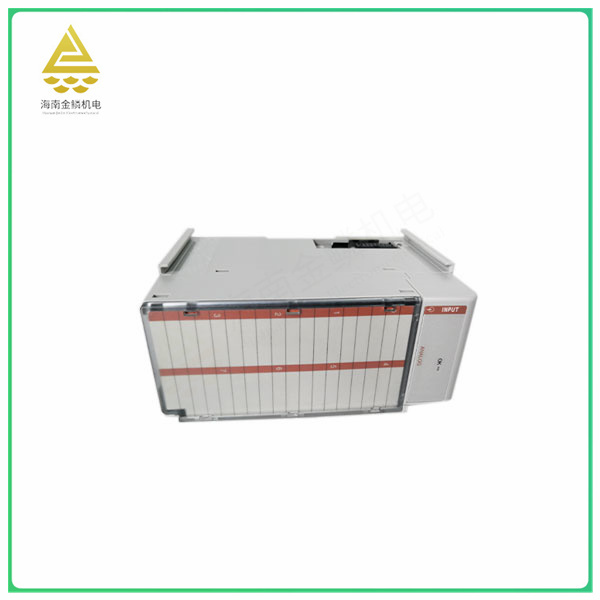

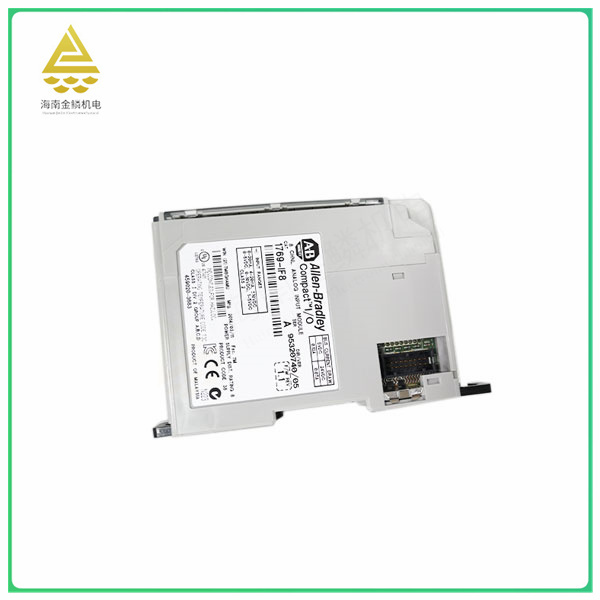

The 1769-IF8 is an analog input module with 8 differential inputs in a voltage range of 0 to 10V. It belongs to Allen-Bradley's CompactLogix family and is a compact, easy-to-use controller.
Features of the 1769-IF8 module include:
8 differential input channels suitable for receiving analog signals.
The voltage range is 0 to 10V and is suitable for most analog signal transmissions.
Easy to use with other modules in the CompactLogix family for distributed control and monitoring.
Supports a variety of communication protocols, such as Ethernet /IP, DeviceNet, etc., to facilitate communication with other devices.
In applications, the 1769-IF8 analog input module is commonly used in the field of industrial automation to receive analog signals from sensors or other devices and convert them to digital values. These numerical values can be further processed and controlled by other modules in the CompactLogix family for automated control and monitoring.
Overall, the 1769-IF8 is a powerful, easy-to-use analog input module suitable for a variety of industrial automation applications.
The main function of the 1769-IF8 analog input module is to receive and convert analog signals. It has eight differential input channels with a voltage range of 0 to 10V and is suitable for receiving most analog signal transmissions. The voltage range of these input channels can be adapted to the output signals of various sensors and devices, such as temperature, pressure, flow, etc.
The 1769-IF8 module is mainly used in the field of industrial automation. It is often used to monitor and control various process parameters, such as temperature, pressure, flow, etc. By converting the received analog signal to a digital value, the module can cooperate with other modules in the CompactLogix family for distributed control and monitoring. This helps to improve the operational efficiency of the entire production line, enabling automated control and monitoring.
In addition, the 1769-IF16 has a number of other functional features. For example, it supports a variety of communication protocols, such as Ethernet /IP, DeviceNet, etc., to facilitate communication with other devices. In addition, it has diagnostic functions that can monitor the status and performance of modules, as well as detect line faults or anomalies. These features make the 1769-IF16 more extensive and flexible in the field of industrial automation.
