Manufacturer: Rockwell Automation
Brand: Alan Bradley
Part number/Catalog number: 1769-L32C
Production line: CompactLogix
Module type: processor component
Communication: Continuous
Memory: 750 KB

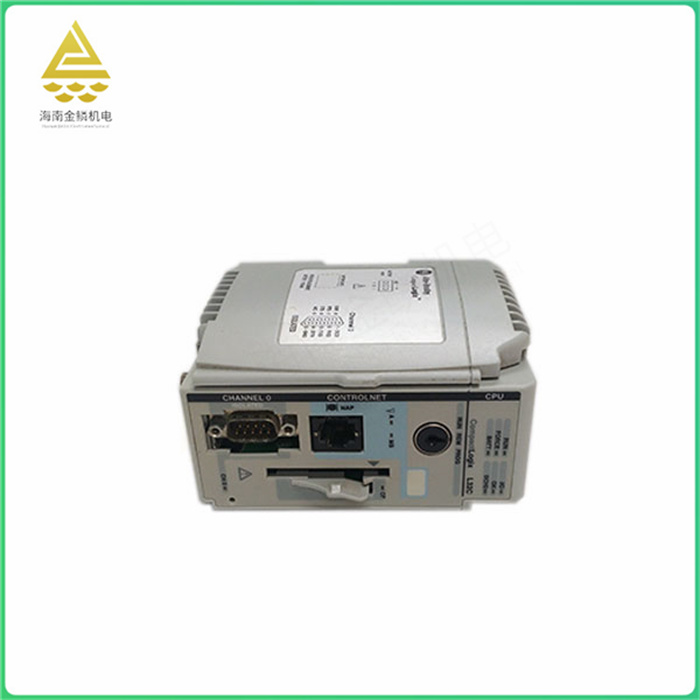

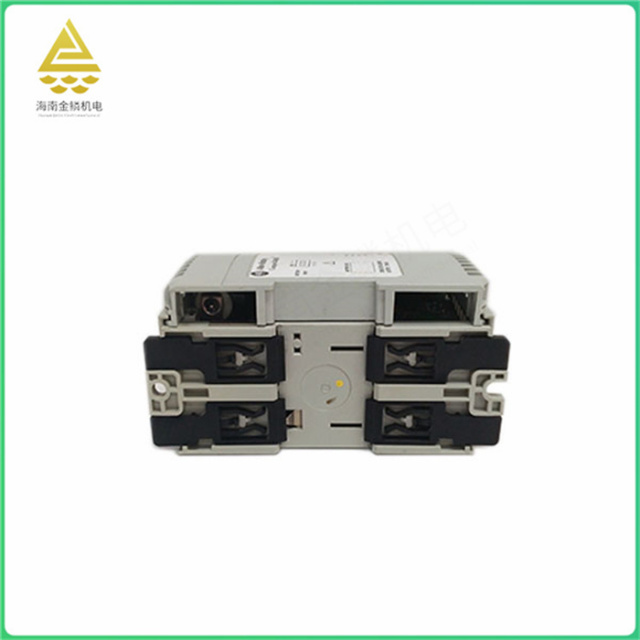

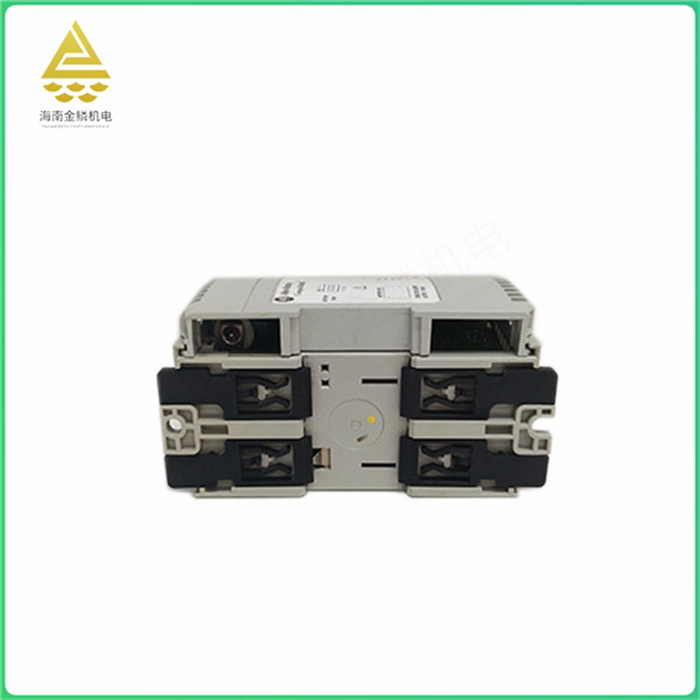

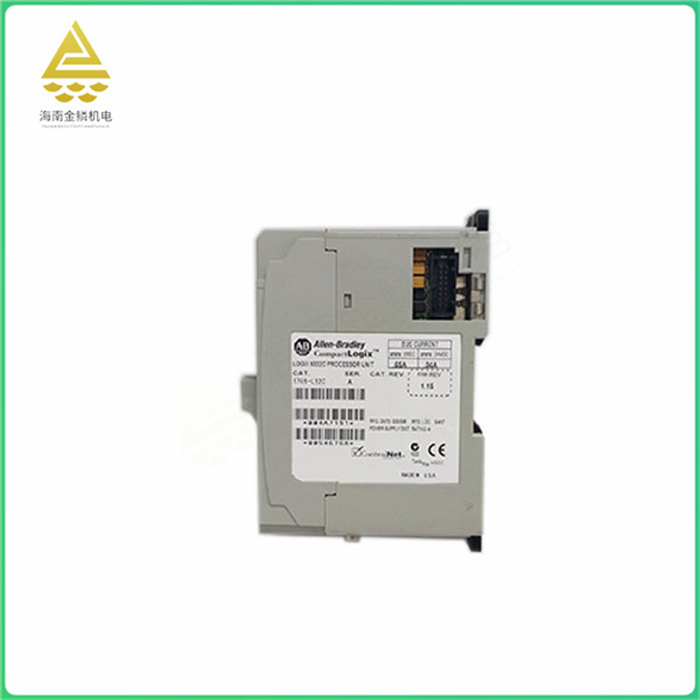

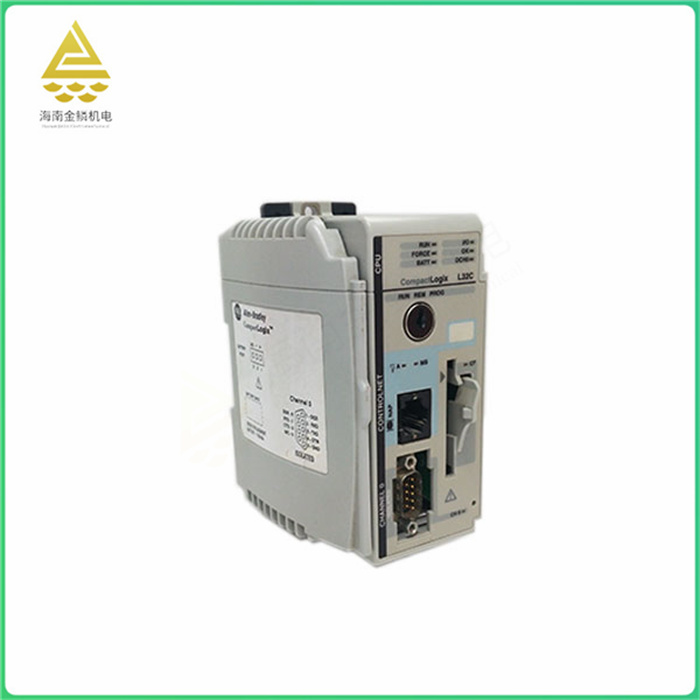

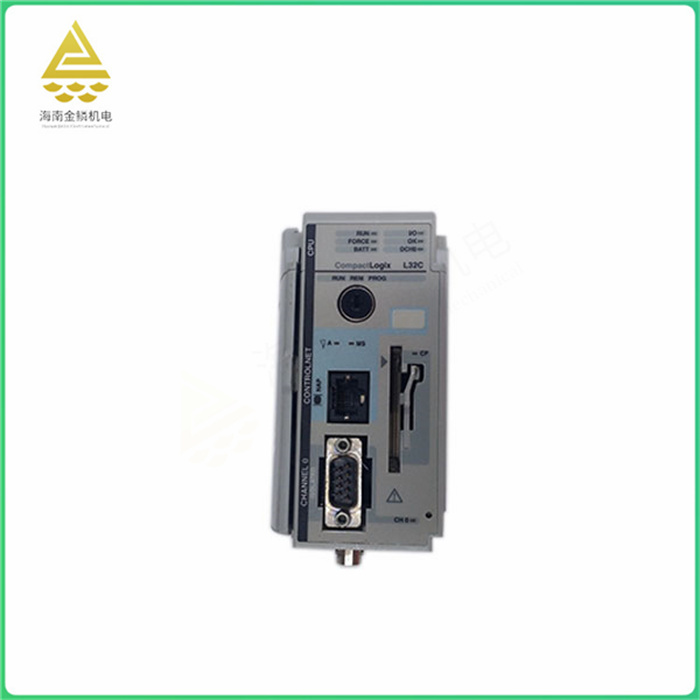

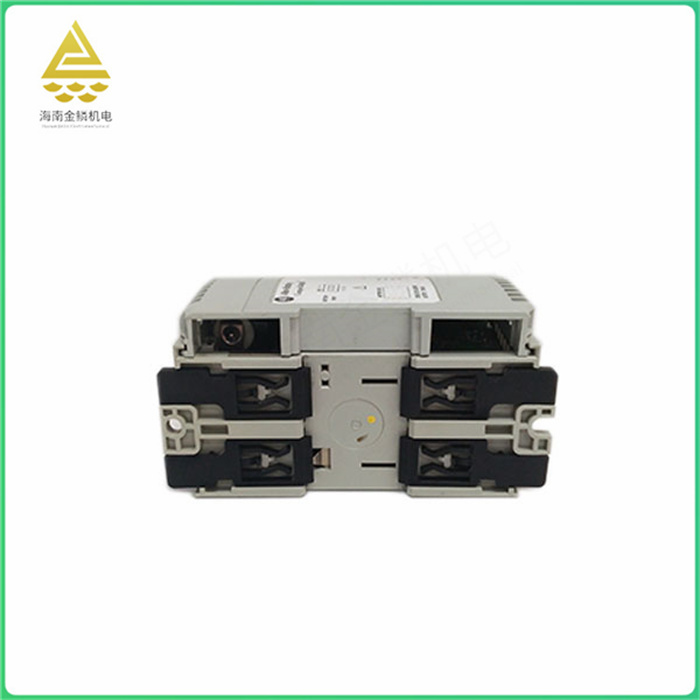

The 1769-L32C is a CompactLogix controller manufactured by Allen-Bradley/Rockwell Automation. This controller is important because each ControlNet network requires at least one similar module capable of storing parameters and network configuration data after the startup process. The 1769-L32C can store data and also serve as a backup. All of these actions are automatic.
The Allen-Bradley 1769-L32C compact logix controller comes with a different communication port, Channel 4. RS-232, NAP, and ControlNet ports. It also uses 750 kilobytes of memory and has 16 I/O modules. The Allen-Bradley 1769-L32C compact logix controller has three I/O groups and a baseboard current of 650 amps at 5 volt DC and 40 mA at 24 volt DC. The 1769-L32C logic module has a power consumption of 4.21 watts. The battery of the Allen-Bradley 1769-L32C compact logix controller can only be replaced by the Allen-Bradley 1769-BA battery.
The CompactLogix controller is a high-performance control platform from Rockwell Automation for a wide range of industrial automation applications. It is a rack-based system that provides the option to configure control systems using sequence control, process control, motion control, and drive control, as well as communication I/O capabilities.
CompactLogix controllers include a wide range of product families, such as the L306, L310, L320, L330, L340, L350, L380 and L3100. Each product family has its specific functional and performance characteristics, which can be selected according to actual needs.
For example, the CompactLogix 5380 L306 series controllers include both 5069-L306ER and 5069-L306ERM products. The 5069-L306ER has 600KB of user memory, supports up to eight local expansion modules (5069 bus), and supports up to 16 Ethernet IO nodes. The 5069-L306ERM adds motion control functions on the basis of the 5069-L306ER, supporting motion control of up to 2 axes.
In addition, the CompactLogix 5380 L310 series controllers include 5069-L310ER, 5069-L310ER-NSE and 5069-L310ERM. These products have different characteristics and functions and can be selected according to actual needs.
Overall, the CompactLogix controller is an efficient, flexible, reliable and affordable control platform for a wide range of industrial automation applications. It has a variety of product families and models to choose from and can be configured and expanded according to actual needs. At the same time, it also has high reliability and stability, to ensure the normal operation of industrial automation control system.
