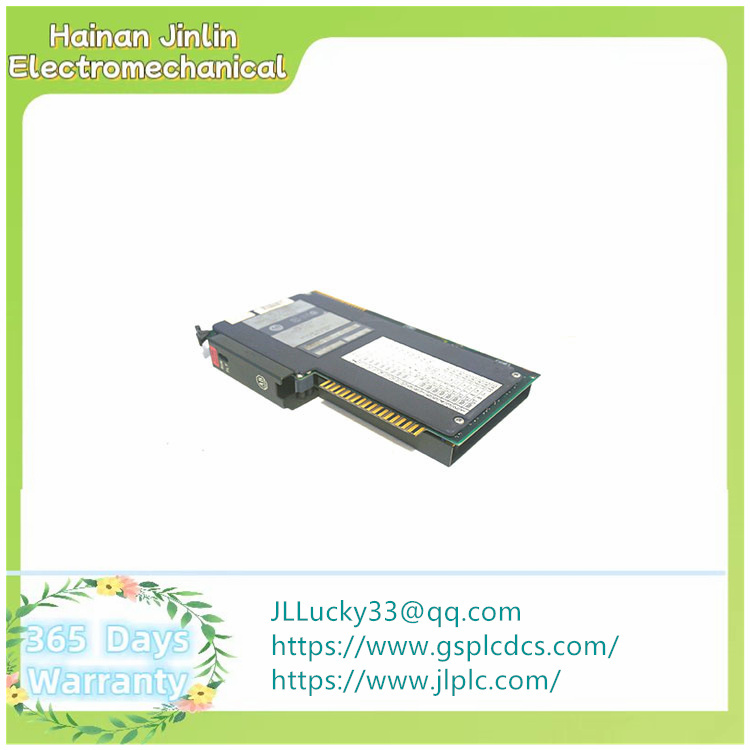

DC(10-30V) Input module No.1771-IBN
The 1771-IBN DC input module is a convergent input and requires a source
Matters needing attention
Output. The convergent input provides a path to ground, and the source output provides a positive voltage path.
DC(10-30V) Input module No.1771-IBN
The 1771-IBN DC input module is a convergent input and requires a source
Matters needing attention
Output. The convergent input provides a path to ground, and the source output provides a positive voltage path.
This module must be used in 1771-A1b, -A2B, -A3B, -A3B1, -A4B, or later 1771 IO enclosures.
PLC-5 high fidelity input module, 10-30V DC,32 inputs (4 groups of 8 channels), connection arm :1771-WN; Backplane current load :280 MA
The.lO adapter module is available for 1771 lO
Control network, universal remote lO, and extended local lO link.
The 1771-ASB is compatible with devices with 32io adapters and 82w or 150w i /O links
An input module is a part of a system or device that is used to receive external data or information. Its 1771-IBN role is to convert external signals, data, or control instructions into a form that the system can process and pass to other parts for further processing or operation.
Input modules can take many forms, such as:
Physical interface: such as plugs, jacks, USB interfaces, serial ports, etc., used to connect external devices or sensors to receive data transmitted by them.
Network interface: such as Ethernet interface, wireless module, etc., used to receive data transmitted through the network.
Sensors: such as temperature sensors, pressure sensors, cameras, etc., used to collect physical quantities or environmental information.
User interface: such as keyboard, mouse, touch screen, voice input, etc., used for users to directly enter instructions or data.
The design and implementation of the 1771-IBN input module needs to consider a variety of factors, such as the type, format, level, frequency, etc. of the input signal, as well as compatibility and coordination with other modules. Its performance and stability are crucial to the normal operation of the entire system.
In different application scenarios, the specific form and function of the input module will be different. For example, in a computer system, input modules may include a keyboard, mouse, camera, and so on; In industrial control systems, the 1771-IBN input module may include various sensors and transmitters; In a smart home system, input modules may include temperature sensors, door and window sensors, etc.
