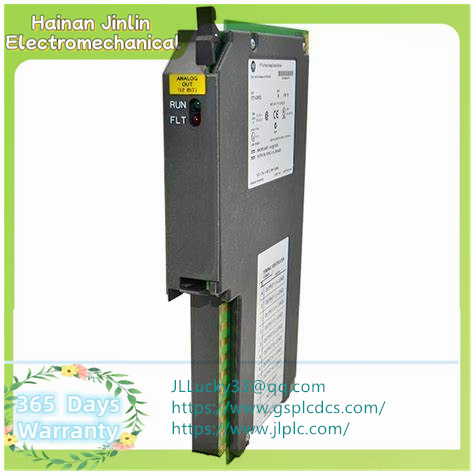

Description: The 1771-OFE1 is an analog output module that belongs to the Allen-Bradley PLC family. The module has four (4) independently isolated voltage output channels +/ -10 VDC. This module is installed on the 1771 I/O chassis and occupies a single slot in the chassis. The module's analog output ranges from +1 to +5 VDC; -10 to +10 VDC and 0 to +10 VDC. It has a backplane current consumption of 1.50 amps and a conversion resolution of 12 bits.
Manufacturer Rockwell Automation
Brand Allen Bradley
Part Number/Catalog Number: Model 1771-OFE1
Manufacturer: Rockwell Automation
Module type: analog output module
Brand Allen Bradley
Number of inputs and outputs: 4 isolated (1000 V) differential
Series PLC Series
Data format; Natural binary or BDC scaling to +/ -9999
Nooooo. Number of channels: Four (4) isolated channels
Output signal: +/- 10 volts DC
Voltage range: 1-5 V DC, 0-10 V DC, +/ -10 V DC
Output signal range: +1 to +5 VDC; -10 to +10 VDC and 0 to +10 VDC
Current range; inapplicability
Module resolution: 12 bits
Accuracy: +0.1% full scale; +1/2 least significant digit (LSD) in BCD; +1/2 least significant bit (LSB) in binary mode
