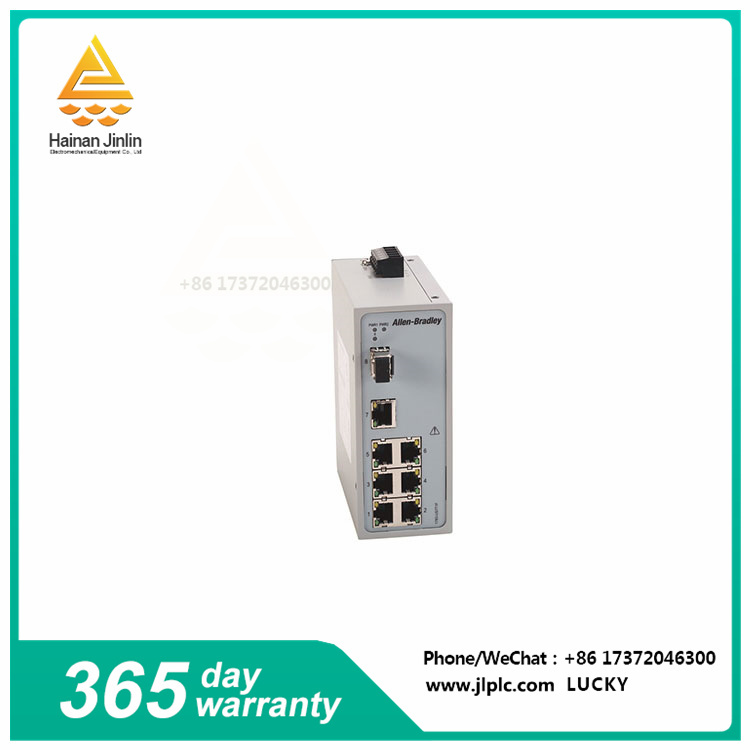

The 1783-US6T2TG2H Ethernet switch is an unmanaged Allen-Bradley/Rockwell automated Ethernet switch offered in the Stratix 2000 series. It is a 10-port unmanaged Ethernet switch. The 1783-US6T2TG2H unmanaged Ethernet switch is equipped with 6 fast Ethernet ports, 2 Gigabit Ethernet ports, and 2 multi-mode SFP fast Ethernet ports. This unmanaged Ethernet switch can operate at -40 to 167 degrees Fahrenheit and 5 to 95 percent non-condensing relative humidity. When not in use, the 1783-US6T2TG2H unmanaged Ethernet switch can be stored at -40 to 185 degrees Fahrenheit, or at 5% to 95% non-condensing relative humidity.
Allen-Bradley 1783-US6T2TG2H is a Stratix 2000 Ethernet unmanaged switch. It has a total of 10 available ports, of which 6 fast Ethernet + 2 Gigabit Ethernet RJ45 ports and 2 fast Ethernet single-mode pre-installed optical fiber SFP module SFP ports. Note that if you want to use SFP modules with switches, you will need to purchase them separately. For 10/100/1000 Mbps, the broadcast storm threshold (especially in terms of the number of packets per second) is 128 pps. This switch has a green/yellow status indicator that allows you to view its power status, port speed status, and network status. Please note that the 1783-US6T2TG2H switch has an open housing. When using a ground connection, the wire should be 2.5 mm2 (14 AWG) copper wire which, when used with a suitable ring terminal, is suitable for temperatures above 187 E? F around the outside of the housing. For DC power connections, the required wire size is 4-0.25 mm2 (12-24 AWG) twisted pair copper wire, also suitable for ambient temperatures above 187 E? F outside the housing.
The B-series switch has a power input of 24V (12-48V DC, 18-30V AC, 50-60 Hz), a maximum power consumption of 7.5W, and a maximum inrush current of 1.83A. The 1783-US6T2TG2H is rated at 450 mA (DC) and 900 mA (AC), while its maximum current is 850 mA (DC) and 1700 mA (AC).
The operating temperature is -40-167 E? F, the maximum ambient temperature is 167 E? F, the maximum ambient air temperature is 167 E? F, and the storage temperature is -40-185 E? F. The switch has a non-condensing relative humidity of 5-95%. The 1783-US6T2TG2H has a working vibration of 2 g at 10-500 Hz, a working shock of 15 g, and a non-working shock of 30 g.
