Product parameters:

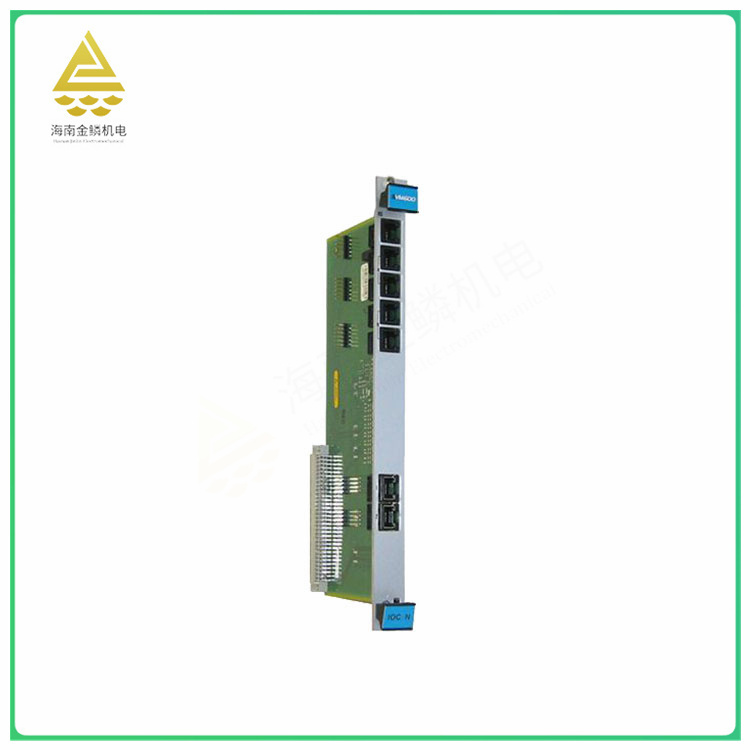

Model :200-566-000-012
Type: IOCN Controller
Compatibility: Compatible with various vibration sensors and monitoring systems
Connection mode: Ethernet, USB, RS485
Power supply :24V DC
VM600 CPUM Input and output cards of the modular CPU card.
VM600 CPUM and IOCN Modular CPU cards and input/output cards are used for the VM600 Rack Mechanical Protection System (MPS) of the Meggitt Vibrometer product line for rack controllers and communication interface cards.
And/or the system controller and data communication gateway of the condition monitoring system (CMS).
200-566-000-012 200-566-101-012 VM600 I0CN6 Technical Specifications
●16 dynamic channels and 4 speed channels
● Up to 20 processing outputs per dynamic channel and per dual channel (12 per xmc 16)
Capture data simultaneously on all channels using asynchronous (fixed frequency) or synchronous (sequential tracking) sampling
● 24-bit data acquisition, high SNR data processing, high-resolution FFT up to 6400 per 500 ms
line
Designed to work with VibroSight software
VM600 high quality, reliability status monitoring module Mk2/VM600 rack mounted mechanical monitoring system
The system is optimized for high performance combustion monitoring applications. XMC16 condition monitoring module for combustion
Block, offering 16 dynamic channels and 4 one tachometer (speed) channels, all of which can be configured independently.
The XMC16 processing module is always presented as a set of modules (card pairs) associated with the XIO16T input/output module
Block together
Use.
trait
●16 dynamic channels and 4 speed channels
● Up to 20 processing outputs per dynamic channel and per dual channel (12 per xmc 16)
Capture data simultaneously on all channels using asynchronous (fixed frequency) or synchronous (sequential tracking) sampling
● 24-bit data acquisition, high SNR data processing, high-resolution FFT up to 6400 per 500 ms
line
● Designed to work with VibroSight software
