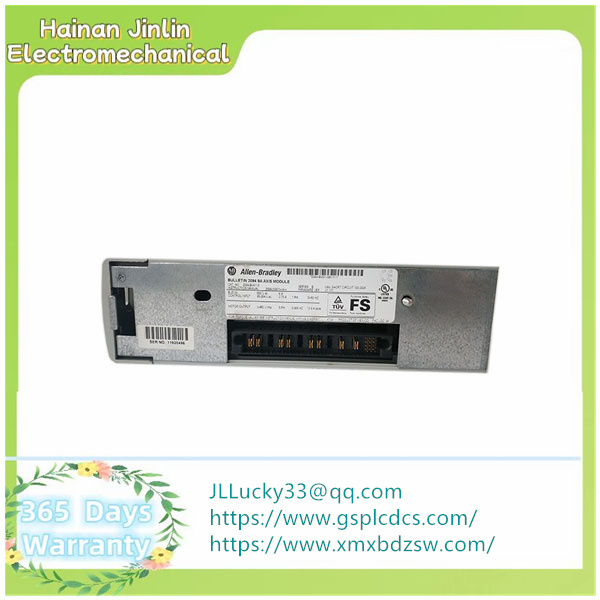

Model: 2094-BNINV-2
Category: Servo motor
Description: Alan Bradley 2094 Series, drive connector for Kinetix®6000 year,6200 year,6500 year drive,50,460 V AC
Connector setup
Shaft module
22 kW
460 v AC
Resistance braking
Motor power
2094-BNINV-2 servo motor refers to the engine that controls the operation of mechanical components in the servo system, and is a supplementary motor indirect transmission device. The servo motor can control the speed, the position accuracy is very accurate, and the voltage signal can be converted into torque and speed to drive the control object. The rotor speed of the 2094-BNINV-2 servo motor is controlled by the input signal and can react quickly. It is used as an executive element in the automatic control system, and has the characteristics of small electromechanical time constant and high linearity, which can convert the received electrical signal into the angular displacement or angular speed output on the motor shaft.
2094-BNINV-2 servo motors are divided into two categories: DC and AC servo motors. Its main feature is that when the signal voltage is zero, there is no rotation phenomenon, and the speed decreases uniformly with the increase of the torque.
