2094-PRS5 | Ultra-thin power supply rail | for AM, slot filler, or shunt modules

Manufacturer: Rockwell Automation

Brand: Alan Bradley

Part Number/Catalog Number: Model 2094-PRS5

Module type: Ultra-thin power rail

Application of 230 or 460 volt drive systems

Module capacity One IAM and four additional modules

Number of axes: 5 axes

Dimensions: 16.5 x 13.3 x 7.7 inches (419.1 x 337.8 x 195.6 mm)

Weight: 6.8 pounds (3.11 kg)

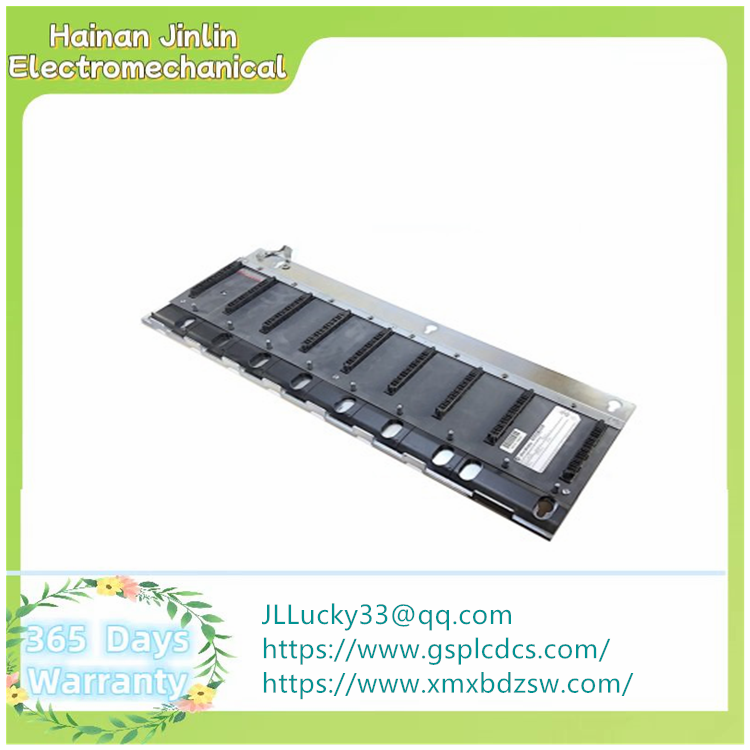

The Allen-Bradley 2094-PRS5 is a slim power rail with five inverter holes on which the drive module can be mounted. Of the five slots, one is for the IAM module and four are for the AM, slot filler, or shunt module. The 2094-PRS5 belongs to the 2094-PRSx series of Kinetic 6000 power supply rails.

The hole on the far left of the 2094-PRS5 power rail is reserved for IAM converters.

The number of inverter slots or shafts determines the choice of power rails, depending on the requirements of the rail mounting module. This number should be as small as possible. Therefore, if the power rail that happens to be selected has more holes than the maximum number of holes required for the drive system, a Bulletin 2094-PRF slot filling module may need to be installed in an additional slot.

The five-axis power rail measures 41.91 cm x 33.78 cm. The 2094-PRS5 weighs 3.11 kg. The 2094-BSP2 shunt module for Kinetix 6000 converters with voltage classes of 230V AC and 460V AC is cataloged as 2094-BCxx-Mxx-S, which provides an additional shunt capacity of 200W for inverter systems.
