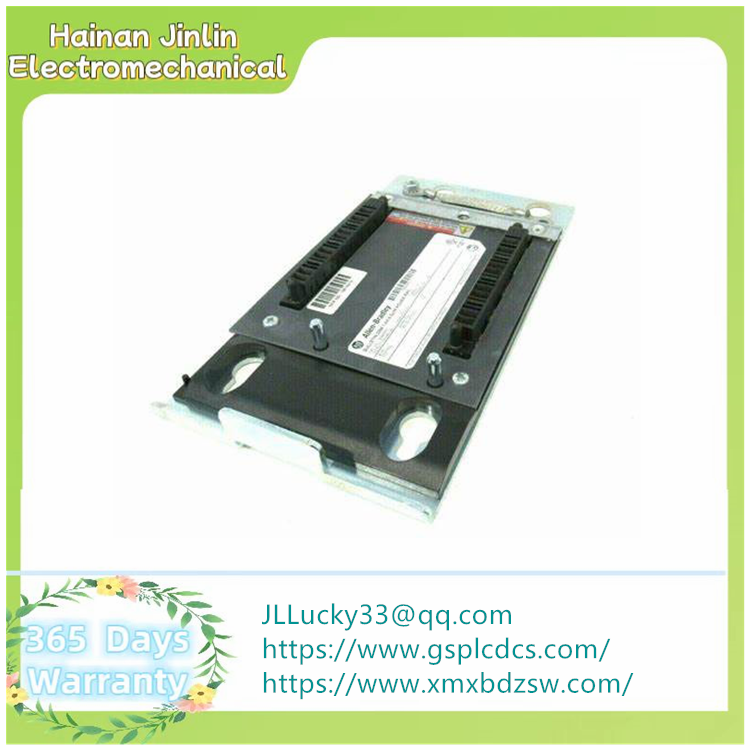

2094-PRS8 | slim power rail | Compatible modules Axis module (AM), shunt module

Part Number/Catalog Number: Model 2094-PRS8

Series: Kinetix 6000 series

Brand: Alan Bradley

Size: 231 mm or 9.1 inches (H); 632.5 mm or 24.9 inches (L) x 25.4 mm or 1 inch (D)

Module type: Ultra-thin power rail

Application: 230 or 460 volt drive system

Module capacity: 1 IAM, 7 add-on

Nooooo. Number of slots: Eight (8) slots

Number of axes: 8 axes

Weight: 4.43 kg (9.7 lb)

Drive system voltage 230V AC; 430 volts direct current

Optional Mounting accessories Mounting brackets

Component braid belt; shield

Installation Hardware M6 Metric (1/4x20)

Sub-panel material: galvanized; Paint-free steel plate

Mounting panel mounting

Unplug and insert (RIUP) after power off: Not supported

Compatible modules Axis module (AM), shunt module, slot filler module

The 2094-PRS8 is a slim power rail measuring 231 mm or 9.1 inches (H). 632.5 mm or 24.9 inches (L) x 25.4 mm or 1 inch (D). The power rail supports mounting panels directly through mounting holes and mounting tables provided for the device. Proper grounding and connection is necessary to avoid electrical noise. Zinc-coated subpanels or unpainted steel plates are recommended.

The 2094-PRS8 package includes one (1) 100 mm or 3.9 inch ground strip (braided) and a protective cover for each power rail connection slot. The protective cover not only prevents the user from accidentally touching the conductor pin, but also prevents small contaminants (especially small conductive materials) from entering the slot. A typical source of these small conductive elements is the notched or drilled panel material produced during installation.
