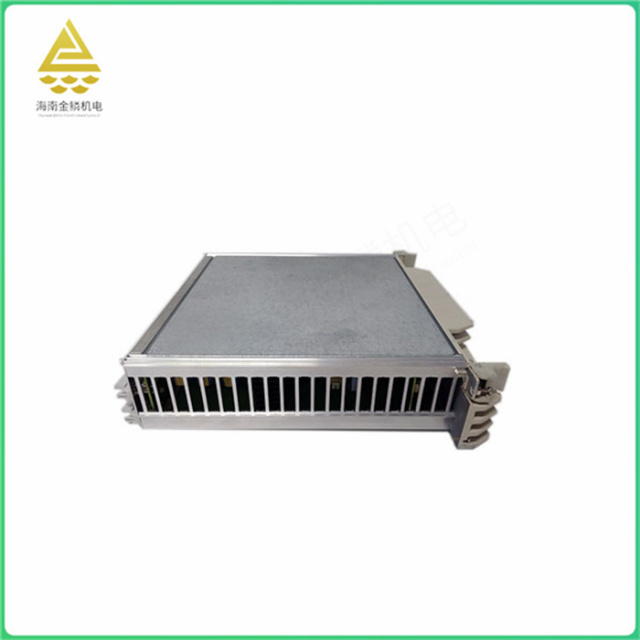

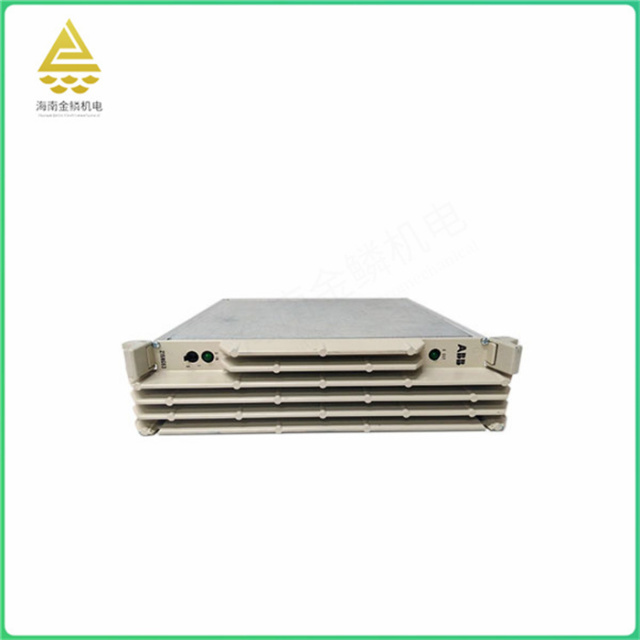

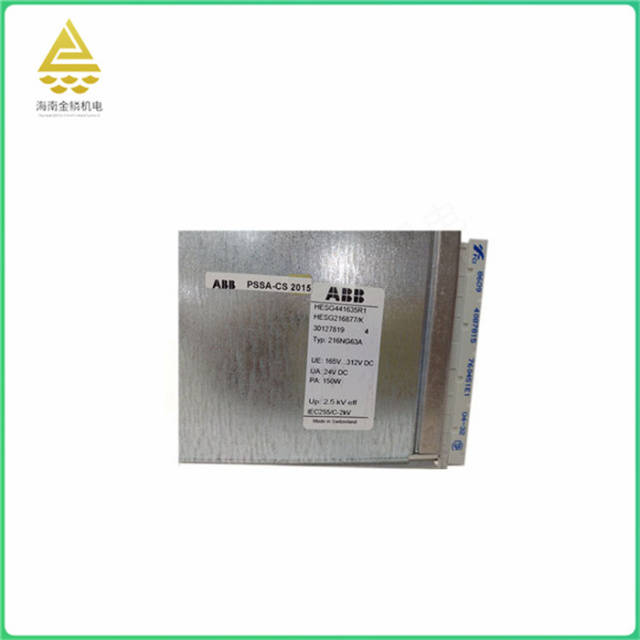

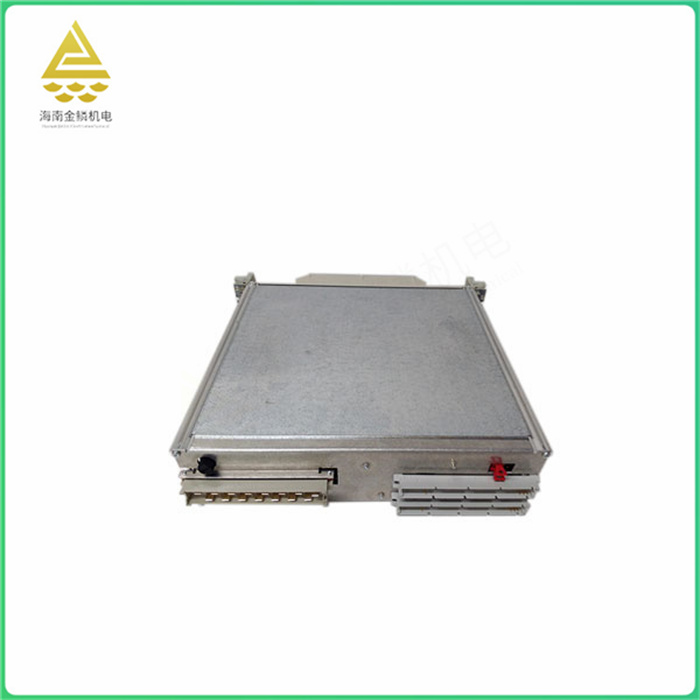

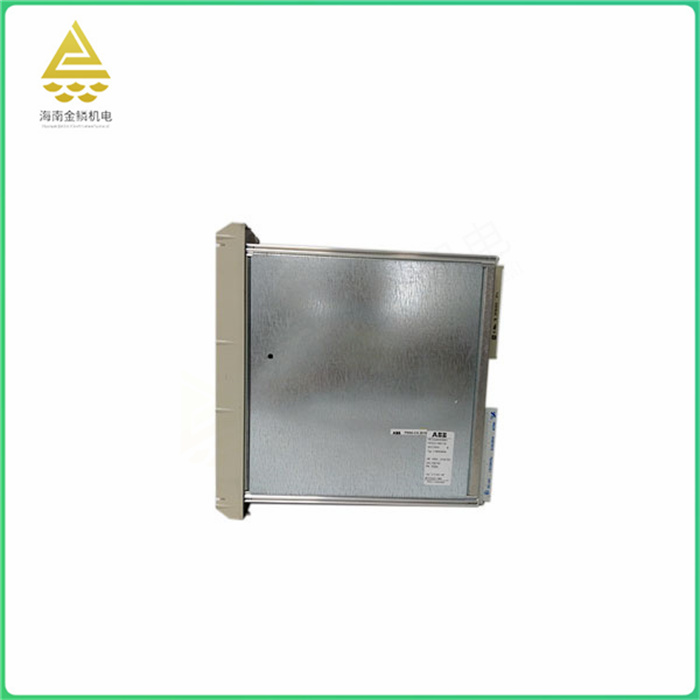

Brand: ABB
Product name: Analog output module
Product model :216NG63A
The Analog output module has the following functions:
Switch control, can be cascelled to 16 equipment surface with green power indicator and red relay switch indicator with manual and central control simultaneously management functions, convenient equipment wiring, installation only need to open the small junction box shell can be connected and ID code, no need to open the entire surface shell equipment with wall mounting bracket, can be installed flat or on the wall. Power off last status saving function.
The role of analog module:
1. The main function of the analog input module is to collect analog signals. After collecting the external pressure sensor, the analog signal collected by the pressure sensor is collected inside the module and processed accordingly. here
Sensor data, including voltage, current, thermal resistance, thermocouple, temperature and other analog values, are then transmitted to the intelligent module of the computer through the bus.
2, the role of the analog output module is to convert the input digital signal through the digital-to-analog conversion, and the output can be controlled continuous current and signal.
3, digital module: digital module has two functions: input and output. If this method of integration is not adopted, more space can be saved, otherwise the user needs to buy two modules when using, digital quantity module
This problem is solved, namely: integrated input/output function, a module can both input and output signals. Analog output module is a module that outputs analog signals, which can convert digital signals of computers or electronic devices into analog signals in order to control various analog devices.
The function of the analog output module is to convert the digital signal of a computer or electronic device into an analog signal in order to control various analog devices. It has a variety of output types, such as voltage, current, etc., to meet different application needs.
Analog output modules are typically modular in design and can be easily combined and extended with other devices. It also has a variety of protection functions, such as overload protection, short circuit protection, etc., can effectively protect equipment and system safety.
In short, analog output module is an important electronic equipment, widely used in a variety of industrial control, automation equipment and other fields.
