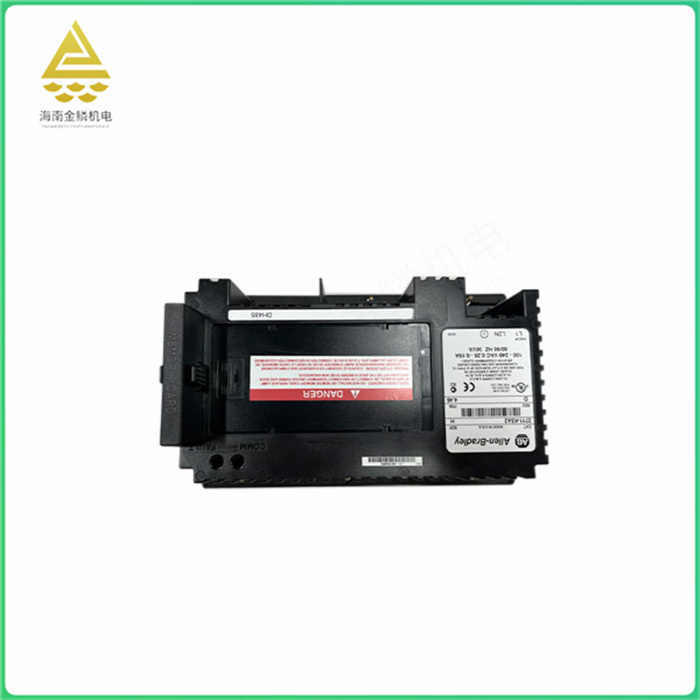

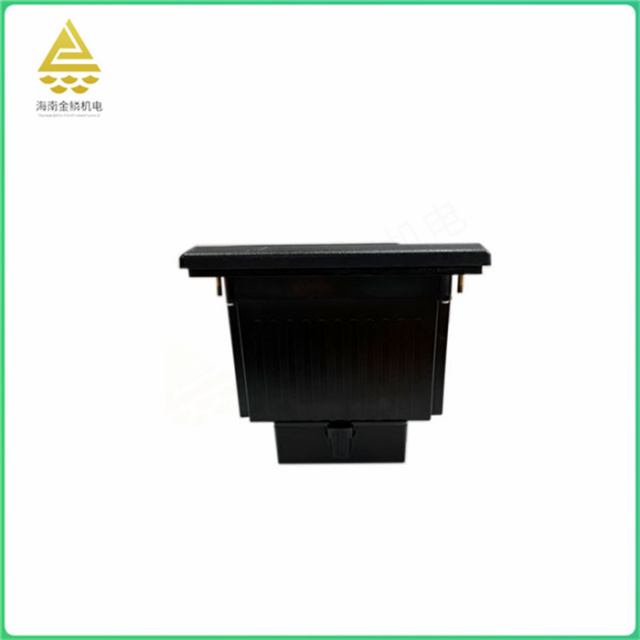

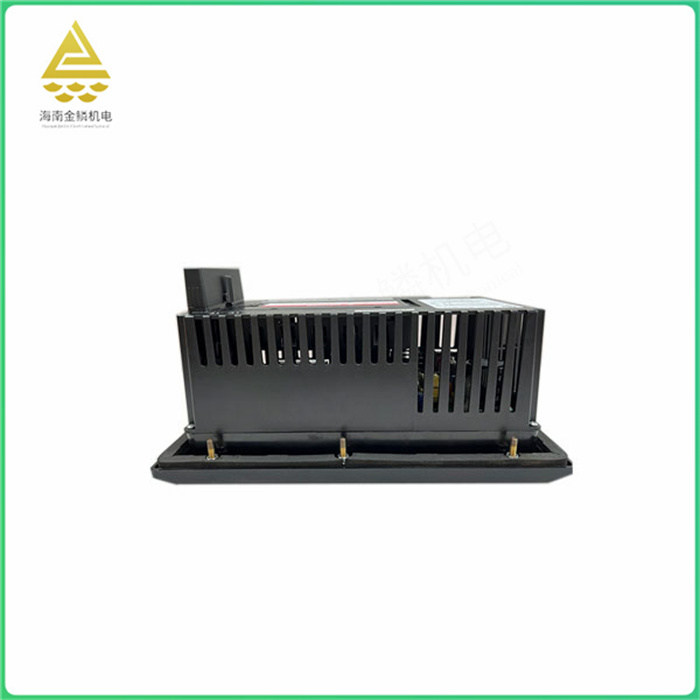

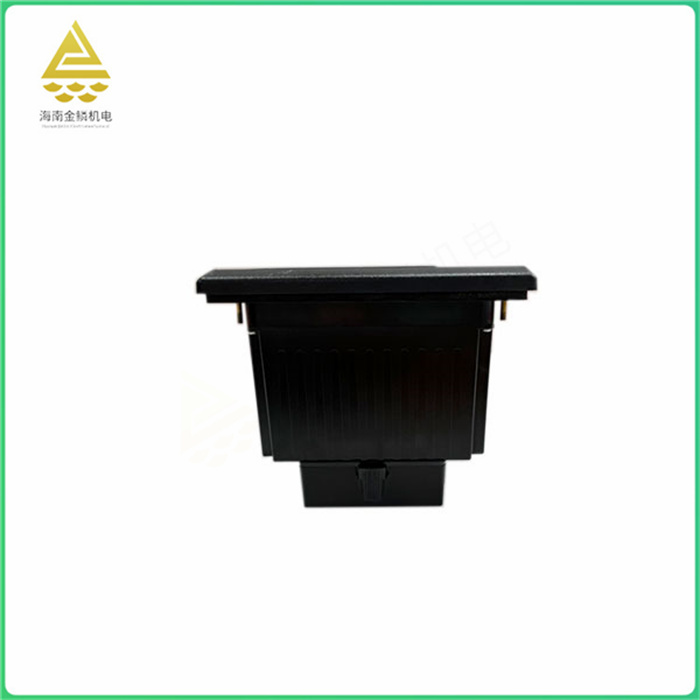

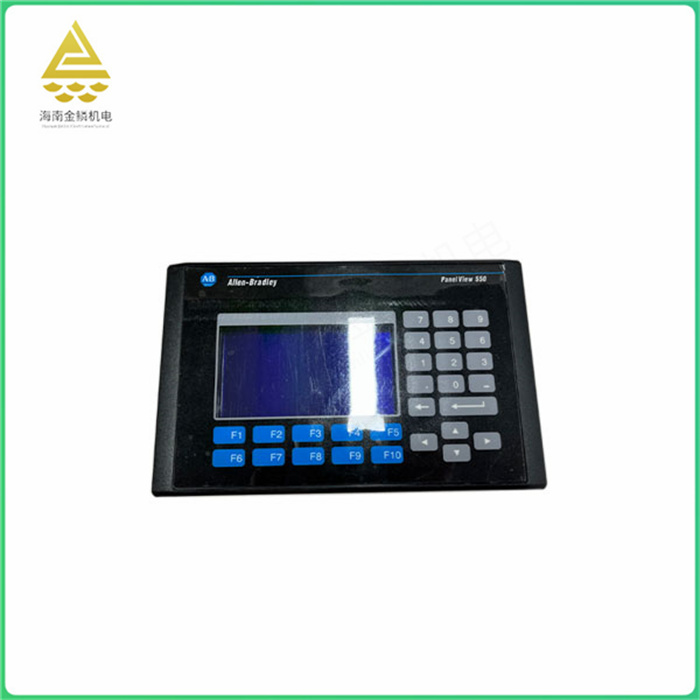

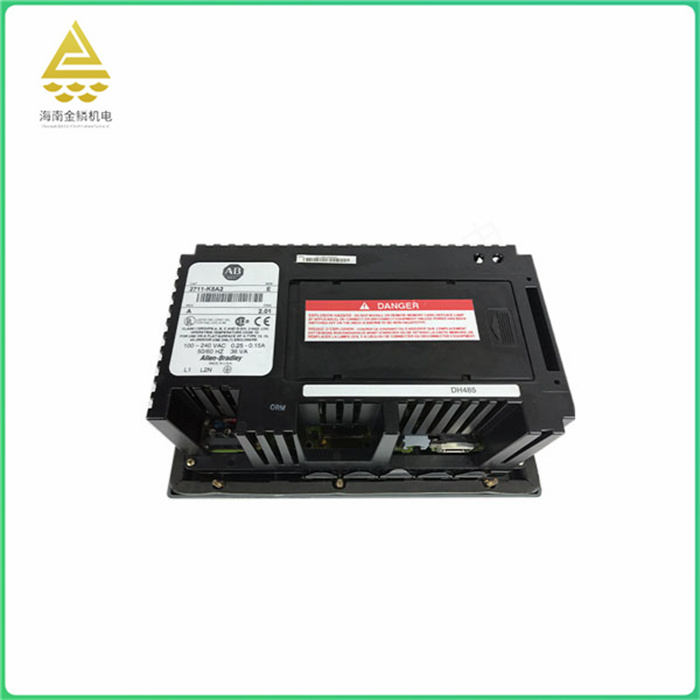

Allen-Bradley 2711-K5A2 is the Panelview 550 standard operator terminal. Powered by an external 85-264V AC supply voltage, this operator terminal features a 5.5-inch monochrome display and an embedded DH485 communication port. It has (10) function keys and a keyboard interface.
The 2711-K5A2 has 170KB of internal random access memory (RAM) and 240KB of non-volatile memory in size for holding application and system files such as trends, logs, and user manuals.
The 2711-K5A2 is mounted on a NEMA or IP rated housing and provides adequate protection against water, dust, dirt, corrosive and explosive substances. Install the 2711-K5A2 in NEMA Type 12/13, 4X (indoor use only), IP54 and IP65 or any equivalent rated housing.
2711-_K5A2 is the Allen-Bradley PanelView 550 terminal. This outdated operating terminal allows users to connect to other machines. This PaneIView device is 5.5 inches. Single screen LCD blue mode screen. It has an embedded DH-485 communication port. Users can control the device using an embedded keyboard located on the front panel of the device. Its H-485 communication port can be connected to SLC and MicroL ogix controllers, DH-485 networks or wall-mounted power supplies.
The 2711-K5A2 terminal is powered by a 120 volt AC supply. Native has 170 KB of application runtime memory and 240 KB of non-volatile memory. The internal backlight replacement part number of this unit is 2711-NL1. The approximate shipping weight and dimensions of the terminals are 6 pounds and 14x11 x8 inches, respectively.
Standard operating terminal is a general purpose operating interface that can be used to communicate and control industrial automation equipment such as PLC (programmable logic controller). Standard operating terminals usually adopt a graphical interface, including a number of functional blocks, such as input, output, alarm display, etc. Through the standard operation terminal, the user can monitor and control the operating status of the PLC system, as well as modify and debug the program.
Features of the 2711-K5A2 standard operating terminal include:
Versatility: The standard operating terminal is a universal operating interface that can be applied to different PLC and industrial automation equipment.
Graphical interface: The standard operation terminal uses a graphical interface, easy to understand and operate.
Multifunctional block: The standard operation terminal includes multiple functional blocks, such as input, output, alarm display, etc., which can meet the needs of different users.
Remote monitoring: The standard operating terminal can communicate with industrial automation equipment such as PLC through the network to achieve remote monitoring and control.
Scalability: The standard operating terminal can expand multiple functional modules to meet the needs of different users.
In general, the standard operating terminal is a universal operating interface that can be applied to different PLC and industrial automation equipment, with features such as versatility, graphical interface, multifunctional block, remote monitoring and scalability.
