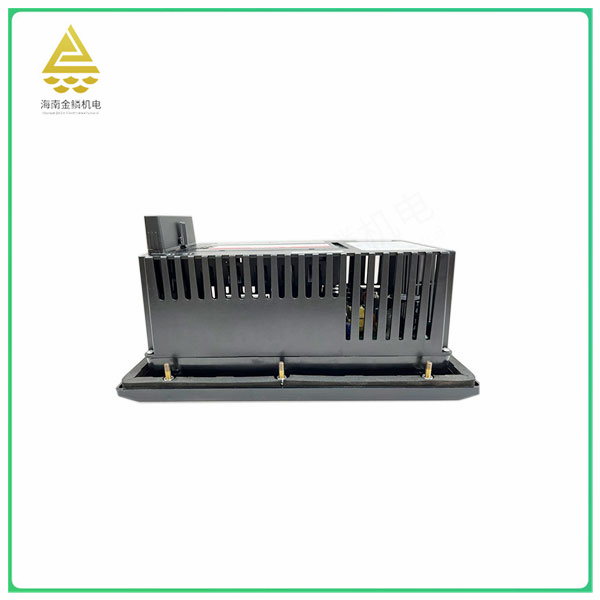

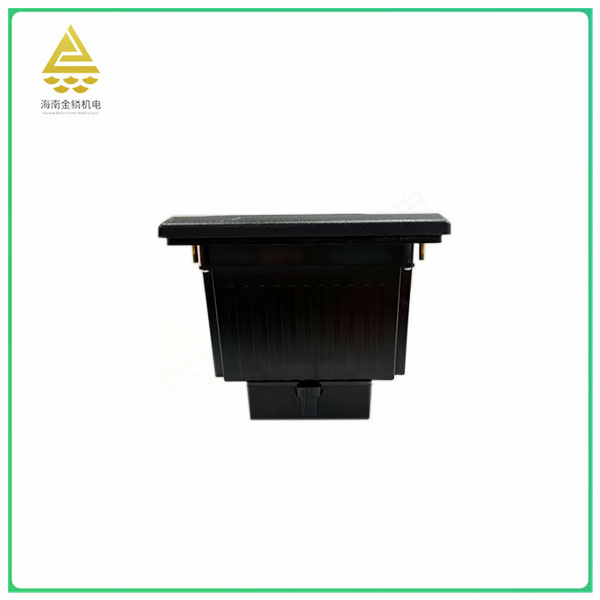

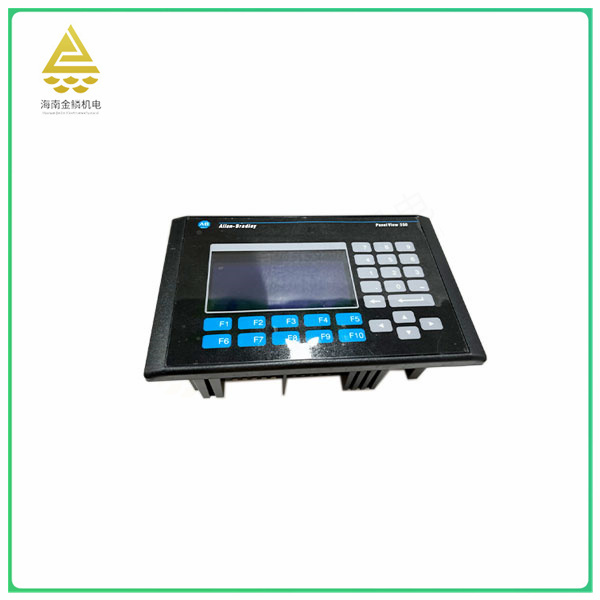

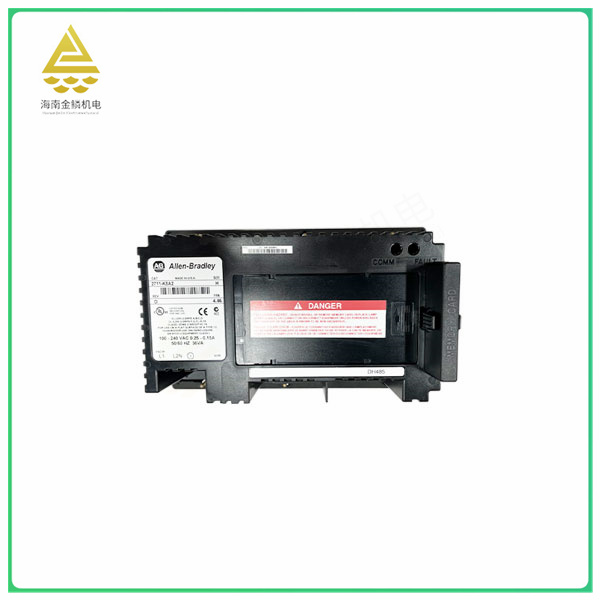

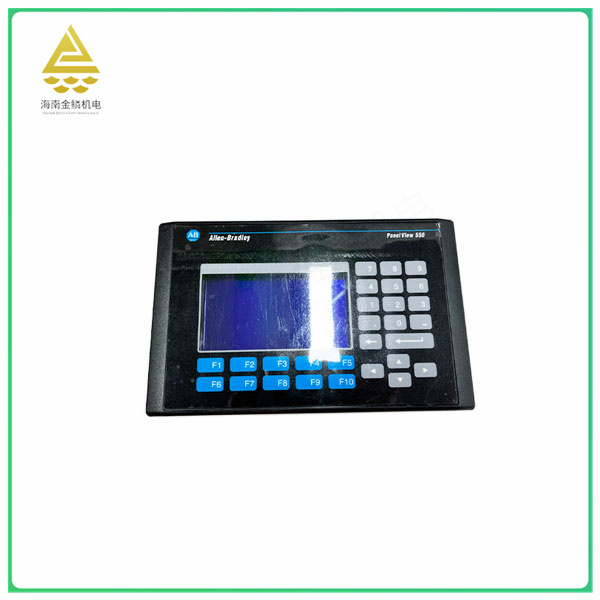

The 2711-K5A2-H is an Allen-Bradley PanelView standard operating terminal with an integrated keyboard input interface, display area, communication port, and internal memory. It is a compact device that supports flush mounting into an industrial-grade housing. The operating terminal also features a 5.5-inch monochrome screen with a display area of 120 x 60 mm (4.75 x 2.38 inches) and a resolution of 256 x 128 pixels. It is equipped with a programmable module, the operating voltage is 220V, the output frequency is 3600Hz, the processing speed is 7200μs, and the two frequencies are 120hz and 60hz. It has a switching quantity of 8 inputs, transistor 8 outputs, with 2*5P line expansion interface. Support UNI ladder programming software and three dragon programming software, compatible with a variety of software.
As an Allen-Bradley PanelView standard operating terminal, the 2711-K5A2-H has several advantages and disadvantages.
Advantages:
Compact design: The device has compact components that support flush mounting into an industrial-grade housing, which makes it a small footprint and easy to install and use.
Integrated keyboard input interface: The device has an integrated keyboard input interface, which is convenient for users to enter data and commands, and easy to operate.
Large display area: The device has a large display area, which can display more information and charts, which is convenient for users to monitor and operate the device.
Communication port and internal memory: The device has a communication port and internal memory, which can communicate and exchange data with external devices, while also storing a large amount of data and programs.
Multiple software support: The device supports a variety of software, such as UNI ladder programming software and three Dragons programming software, which makes it a wide range of applicability.
Cons:
Monochrome screen only: The device only supports monochrome screens, and the display may not be rich and vivid enough compared to color screens.
Low resolution: The device has a resolution of 256 x 128 pixels, and the display may not be sharp and delicate compared to higher-resolution devices.
Limited expansion interface: The device has a 2*5P line expansion interface, which is less possible than other devices.
To sum up, 2711-K5A2-H has the advantages of compact design, integrated keyboard input interface, large display area, communication port and internal memory, support for a variety of software, but there are also some disadvantages such as only support for monochrome screen, low resolution, limited expansion interface, etc.
