Brand: Alan Bradley
Manufacturer: Rockwell Automation
Product line :PanelView standard operator terminal
Product Type :PanelView 600 Standard Operator terminal
Display type: Color Active Matrix TFT
Display area :115 x 86 mm (4.54 x 3.4 in).
Resolution :320 x 234
Keyboard components :10 function keys (... 10)
Application memory :190 KB application runtime; 240 KB of non-volatile memory (application objects plus text and bitmap)

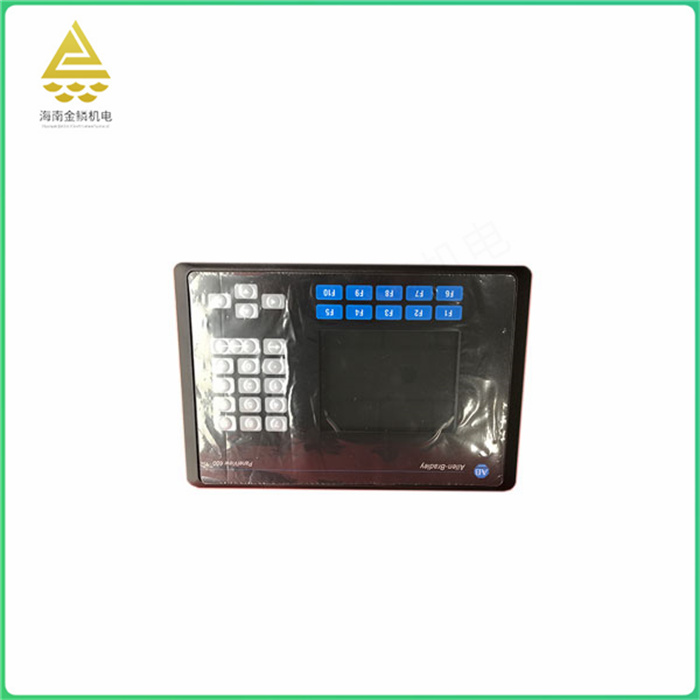

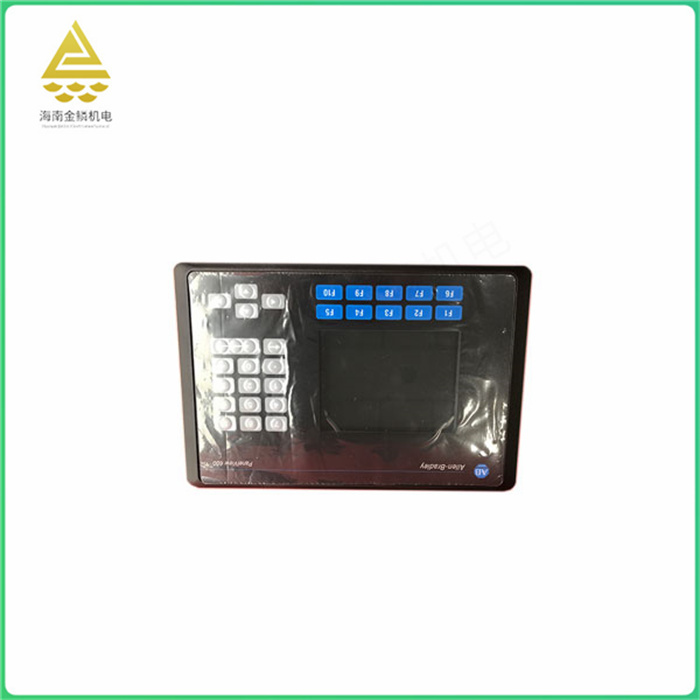

The PanelView Standard Operator terminal, catalog number 2711-K6C5, is a PanelView 600 visual assembly from Allen-Bradley. This operator terminal is more commonly known as the Human Machine Interface (HMI) and its primary purpose is to provide real-time monitoring and process interface to the process operator through a combination of features embedded within the HMI. Process visualization is achieved through a 5-inch color graphic display, where animations with color-coded information can be implemented.
This color screen has a functional display area of 115 x 86 mm (4.54 x 3.4 inches). The screen resolution is 320x 234 pixels. The screen has an internal backlight, can be replaced in the field, and has an estimated operating time of up to 50,000 hours. An embedded key pad consisting of +(10) function keys, navigation and numeric keys provides operator control and interface. Each key performs a separate function, and function keys can accept both local and global assignments. These keys are expected to be activated 1 million times, and the river and function key legend plug-in are installed.
The PanelView 600 Standard Operator Terminal is a modern human machine interface (HMI) device from Allen-Bradley that is part of the PanelView Plus 600 operator Terminal. It is compact but powerful, highly configurable and scalable to meet a variety of specific control needs.
The operator terminal features a color active matrix thin film transistor (TFT) display with a 5.7-inch screen size and an 18-bit color graphic display with a resolution of 320 x 240. It also features a 5.5-inch monochrome passive matrix film compensated superdistorted nematic display with an image contrast ratio of 0.16875, display resolution of 320 x 240, and display area of 4.37 x 3.30 inches.
The PanelView 600 standard operator terminal is powered by an external 18-32v DC power supply and has a keyboard input interface. The keyboard consists of number keys, navigation keys, and 10 user-configurable function keys, which users can assign their own labels to. The keyboard responds to gloved and ungloved fingers.
Overall, the PanelView 600 Standard Operator Terminal is a powerful, easy-to-use and affordable human-machine interface device for a variety of industrial automation applications.
