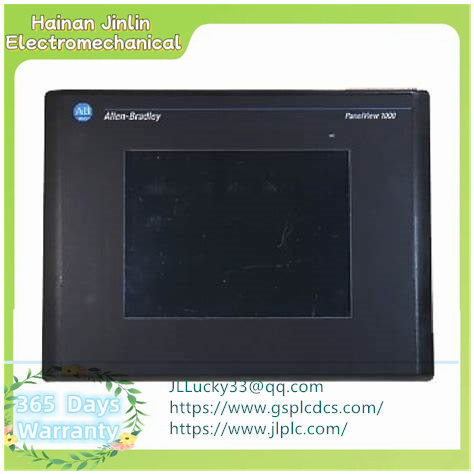

Model number; 2711-T10C20
Product type: PanelView 1000 Standard operation terminal
Display type: Active Matrix thin film resistor (TFT) with cold cathode fluorescence (CCF) backlight
Display area: 211 x 158 mm (8.3 x 6.2 in)
Resolution: 640 x 480 pixels
Backlight: 100,000 hours LED backlight life
Touch screen: 384 (24 columns x 16 rows)
Touch Cell size: 26 x 30 pixels
Application memory: 1008K bytes (application screen)
About 2711-T10C20 Ser F
The 2711-T10C20 Series F terminal is an operating terminal designed by Allen-Bradley/Rockwell Automation. This terminal allows users to monitor ongoing application processes. It can be connected to controllers, motors, servo motors and servo drives. The terminal has a color touch screen and can be operated with a stylus. From this screen, you can control the terminal, monitor the application process, and enter new variables. The Allen-Bradley/Rockwell Automation 2711-T10C20 Series F operating terminal is one of the main terminals in the PanelView 1000 series. It has 1008 KB of non-volatile memory and 310 KB of RAM. It connects to different types of devices by using Ethernet /IP connectivity. This connection is widely used in industrial machine control.
Allen-Bradley/Rockwell Automation 2711-T10C20 Series F operating Terminal touch screen with 384 touch units for 1 million press drives. It supports ATA memory cards and can be managed through PanelBuilder32 software. The terminal can be used with AC or DC voltage. This voltage range is 18 to 32 volts DC and 85 to 264 volts AC at a frequency of 47 to 63 Hertz. It can consume up to 24 watts and up to 55 VA. It is recommended that the Allen-Bradley/Rockwell Automation 2711-T10C20 Series F operating terminal be installed in a clean environment, free of corrosive chemicals, which may damage its screen and external components. The terminal needs to be contained in a housing with gaps around it to promote ventilation and avoid overheating. Overheating can shorten the service life of the terminal and damage its screen.
