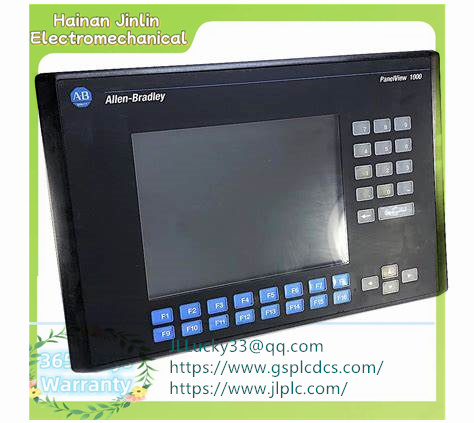

Model: 2711-T10C8 Standard operating terminal
Product type: PanelView 1000 Standard operation terminal
Display type: Active Matrix thin film resistor (TFT) with cold cathode fluorescence (CCF) backlight
Display area: 211 x 158 mm (8.3 x 6.2 in)
Resolution: 640 x 480 pixels
Backlight: 100,000 hours LED backlight life
Touch screen: 384 (24 columns x 16 rows)
Touch Cell size: 26 x 30 pixels
Application memory: 1008K bytes (application screen)
Communication port: Data highway Plus (DH+); RS232 (Printer)
Input voltage range: 85... 264V AC, 47... 63 Hertz
Operating temperature: 0... 55°C (32... 131°F)
Heat dissipation: 39 watts (132 BTU/ hour)
PanelView Plus 7 Series Operator interface General features:
Display size and resolution:
The PanelView Plus 7 series offers a variety of display sizes ranging from 4 "to 19". Although the exact size of the "2711-T10C8" is not directly mentioned, based on naming conventions, it may have a 10-inch display similar to other T10 series products.
Resolution and color depth may support high-definition graphics displays, such as 18-bit color graphics.
Operating system and Programming:
These terminals typically run Windows CE 6.0 or higher, such as Windows 10 IoT Core (LTSC).
Programming can be done through FactoryTalk View Machine Edition software, which allows users to build custom application projects.
Connectivity and Communication:
The terminal supports Ethernet connectivity and may include one or more Ethernet ports, supporting DLR, linear, or star network topologies.
Applications can be monitored from a remote location via a VNC connection for remote operation and diagnostics.
Storage and expansion:
Equipped with a certain amount of RAM (such as 512MB or higher) and non-volatile memory (such as an SD card or USB drive) for storing programs and data.
Support SD card or USB drive quick copy and recovery operator interface for easy maintenance and upgrades.
Input and output:
Touchscreen input is supported and may include a keyboard and other custom button pad configurations.
Provides rich graphical interface elements such as buttons, sliders, indicators, etc., for operator interaction with the machine.
