Model: 2711P-K7C4D1
Product Series: PanelView Plus 700 operating terminal
Keyboard function keys: 22 function keys (F1... F10; K1... K12)
Impulse: 1 million presses
Display type: Color activity matrix
Life cycle status: Positive
Display area: 132 x 99 mm (5.2 x 3.9 in)
Resolution: 640 x 480, 18-bit color graphics
Integrated ports: Ethernet, RS-232, 2 USB hosts
Input voltage range: 18-32 V DC
Product line Panelview Plus 700 panels
Description

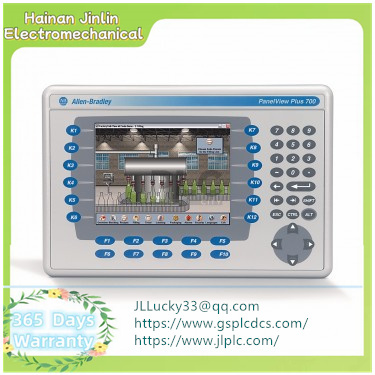

The discontinued Allen Bradley Panelview Plus 700 2711P-K7C4D1 was an operating terminal that enabled users to interact with their machines. This HMI has a 6.5 inch. Color display. Users can use the keyboard to control the HMI to enter information and data. This unit uses 18-32 VDC power supply. The unit has 64 MB of internal memory. It supports EtherNet/IP (Ethernet Industrial Protocol), an open industrial network that supports real-time I/O messaging as well as message exchange. EtherNet ports connect to controllers on EtherNet/IP networks using network and standard Ethernet connections. The EtherNet/IP screen is displayed and allows the user to modify some EtherNet/IP communication Settings for the PanelView terminal.
The 2711P-K7C4D1 comes with a 64 MB logic module. In addition, it can install external CompactFlash memory with up to 512 MB of removable memory. This device uses an internal battery as a Real Time Clock (RTC) backup battery. When the device is operating at 4 degrees Celsius or 25 degrees Fahrenheit, the minimum battery life is 77 years. The accuracy of the battery-powered RTC is +/- 2 minutes per month. For troubleshooting, the 2711P-K7C4D1 is equipped with two (2) LED indicators for communication (green) and fault (red).
The 2711P-K7C4D1 features a 6.5-inch color display. It has a display area of 132 x 99 mm (5.2 x 3.9 inches) and a resolution of 640 x 480 pixels. Its physical dimensions are 193 x 290 x 55 mm (7.58 x 11.40 x 2.18 in) and it weighs about 1.9 kg (4.2 lb). It is approved for installation in the application areas identified as Class I, Zone 2, Group A, B, C, D; Class I, Region 2, IIC Group; Class II, Class F, G and III hazardous sites in Zone 2. It must be installed on a housing that offers protection grades equivalent to NEMA types 12, 13, 4X (indoor use only), IP54 and IP65.
