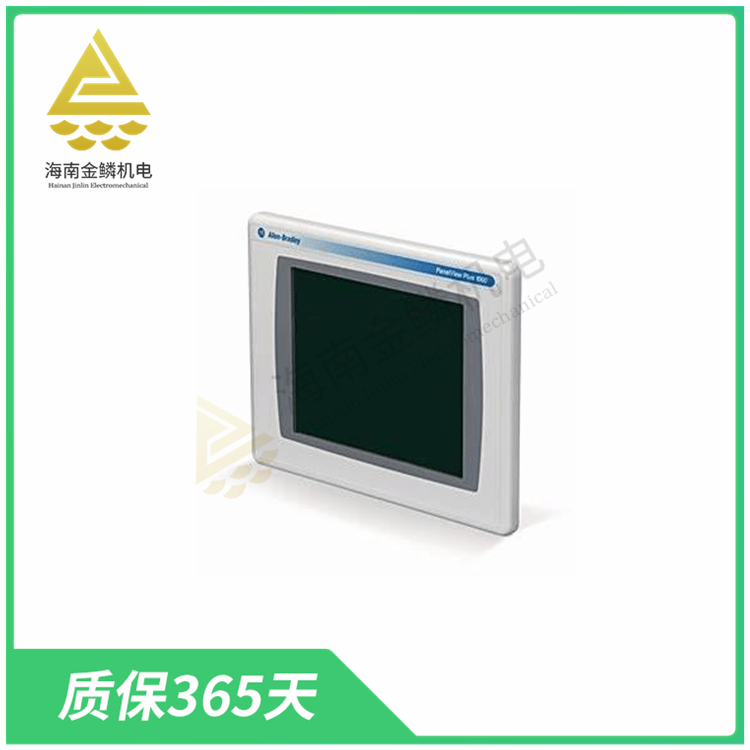

2711P-RDT10C | 2094-BC01-M01-S | Touch screen

No.2711P-RDT10C
Model :2711P-RDT10C
Width: 329 mm
Height: 248mm
Depth: 55mm
Weight, about 2.6 kg
Opening size: 224x305 mm
Number of pixels, vertical 480
Number of pixels, level 640
  • 2711P-RDT10C  |   2094-BC01-M01-S  |   Touch screen
Desciption
2711P-RDT10C  |   2094-BC01-M01-S  |   Touch screen
Model :2711P-RDT10C
Width: 329 mm
Height: 248mm
Depth: 55mm
Weight, about 2.6 kg
Opening size: 224x305 mm
Number of pixels, vertical 480
Number of pixels, level 640
Display size 10.4 inches
Brightness: 300 cd/m2(nits)
Input voltage: 85.... 264 v AC
Backlight: CCFL, minimum 50,000 hours life
Operation input
Maximum power consumption: 70w(2.9A at 24V DC), typical power consumption 39w(1.6A at 24V DC)
Line frequency: 47hz



Operating force, touch screen 10g
Remote power input voltage: 85... 264 v AC
Maximum remote power consumption: 120va
External CompactFlash storage is up to 512mb
PCI slot power supply, maximum 11w DC, 5w AC
Touch control analog resistance
Drive grade, touch screen 1 million press
LED indicator comm(green), fault(red)
Battery life is at least 4 years at 25°C(77°F)
Clock battery powered, +/-2 minutes per month
Application flash 20mb logic module, series A to D
Color Active Matrix, Thin Film Transistor (TFT), Liquid Crystal Display (LCD)
environment
Operating temperature 0°C
