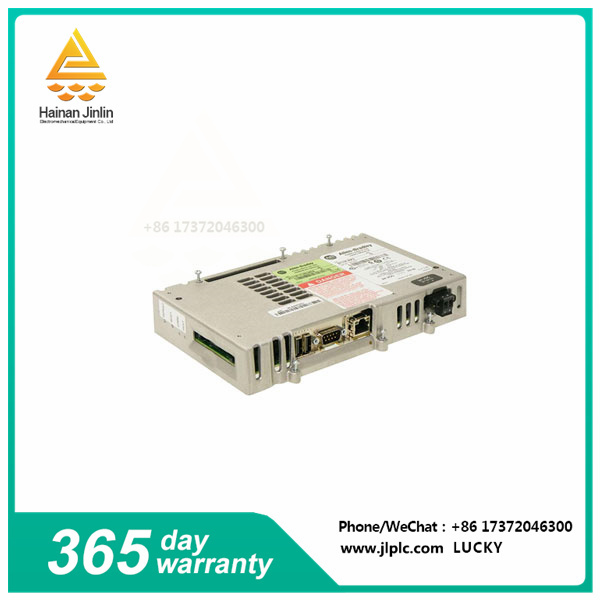

2711P-RP2C Logic module It carries various communication interfaces

The Allen-Bradley/Rockwell Automation 2711P-RP2 logic module is a DC powered logic module. It is designed to be mounted on the back of the Allen-Bradley Panelview Plus 700, 1000, 1250 or 1500 series display modules. The 2711P-RP2 logic module and the display module together form a Panelview terminal that can control industrial machines and systems. The logic module comes with 128 MB of flash memory and 128 MB of RAM. The 2711P-RP2 logic module is also equipped with an Ethernet port.
2711P-RP2 Connects to the display module. It carries various communication interfaces and power supply voltage terminals. Specifically, it has one (1) Ethernet communication port, one (1) serial communication terminal, and two (2) USB ports. It is powered by an external 24VDC supply with a power consumption of 70W.A

PanelView Plus and PanelView Plus CE operating terminals are provided by Allen-Bradley with at least a display module and a logic module. These components create fully functional hardware. In this way, the 2711P-RP2 is a replacement part for the existing equipment. It can be a direct replacement or upgrade. Internal memory such as random access memory (RAM) and flash memory can also be upgraded. The 2711P-RP2's built-in upgradable memory is 128 MB Ram and 128 MB flash memory.

The logical module is connected to a specific slot in the operation terminal. It can only be used with PanelView Plus CE 700, 1000, 1250, 1500 operating terminals. The electronic components inside the logic module are sensitive to electrostatic discharge and need to be handled carefully during unpacking and installation.

In addition, the Allen-Bradley 2711P-RP2 logic module has a conformal coating and is available as an option for the 700-1500 PanelView Plus terminal module.
