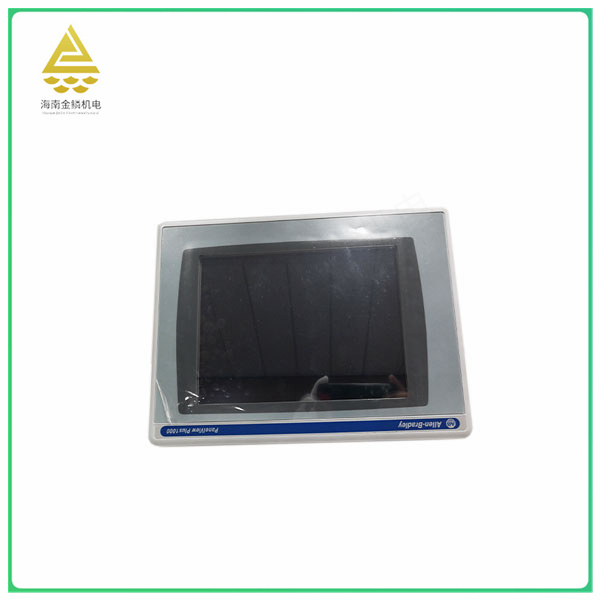

Allen-Bradley 2711 p-t10c4a 9 panel view Plus 6 terminal with extensions
Features and file viewer. It can graphically display application status information, allow
Allows operators to control and monitor other machines.

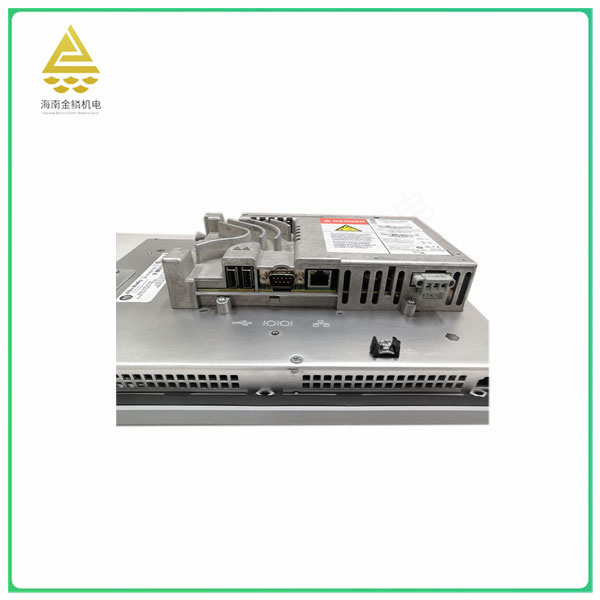

The 2711P-T10C4A9 has a flexible configuration process with separate display and logic modules as well as an optional communication module. The user can control the operator interface by entering information and data through the touch screen. The 2711P-T10C4A9 features a 10.4-inch color display with a resistive touchscreen input option. The touchscreen resolution is 640 x 480, with 18 bit color graphics. It has 512 MB of memory and 512 MB of non-volatile memory for user storage. It weighs 8 pounds and measures 16x14x8 inches. Its input voltage is 100 to 240 volts AC, the frequency is 50 to 60 Hz, and the maximum power consumption is 160 volt-amps. For communication, it has an Ethernet port, an RS-232 port, and 2 USB ports. The 2711P-T10C4A9 also supports optional DH-485, DH+, ControlNe, and Ethernet modules. It comes with a battery-powered real-time clock and an SD card for external storage.
The 2711P-T10C4A9 is a PanelView terminal with a flexible configuration process, with separate display and logic modules and an optional communication module. It can be input and operated via a touch screen, with a resolution of 640 x 480 and 18-bit color graphics. It has 512 MB of RAM and 512 MB of non-volatile memory for user storage. It weighs 8 pounds, measures 16 x 14 x 8 inches, has an input voltage of 100 to 240 volts AC and a maximum power consumption of 160 VA. For communication, it has one Ethernet port, one RS-232 port, and two USB ports. In addition, it supports optional DH-485, DH+, control network and Ethernet modules. It comes with a real-time clock for battery backup and supports SD cards for external storage.
In the field of application, 2711P-T10C4A9 is mainly used in the field of industrial automation, such as manufacturing, petrochemical, electric power and other industries of production line automation control. It can realize distributed control and monitoring by receiving analog signals from various sensors and converting them into digital values, which can be used in conjunction with other modules. This helps to improve production efficiency, reduce labor costs, and ensure the safety and stability of the production process.
Compared to previous PanelView terminals, the 2711P-T10C4A9 offers significant improvements in processor speed, memory, lighting, and connectivity. Ethernet ports connect to controllers on an Ethernet /IP network using network and standard Ethernet connections. This port can handle application transfers and handle printing. The EtherNet/IP screen allows the user to modify some EtherNet/IP communication Settings for the PanelView terminal.
Overall, the 2711P-T10C4A9 is a powerful and flexibly configured PanelView terminal suitable for a variety of industrial automation applications.
