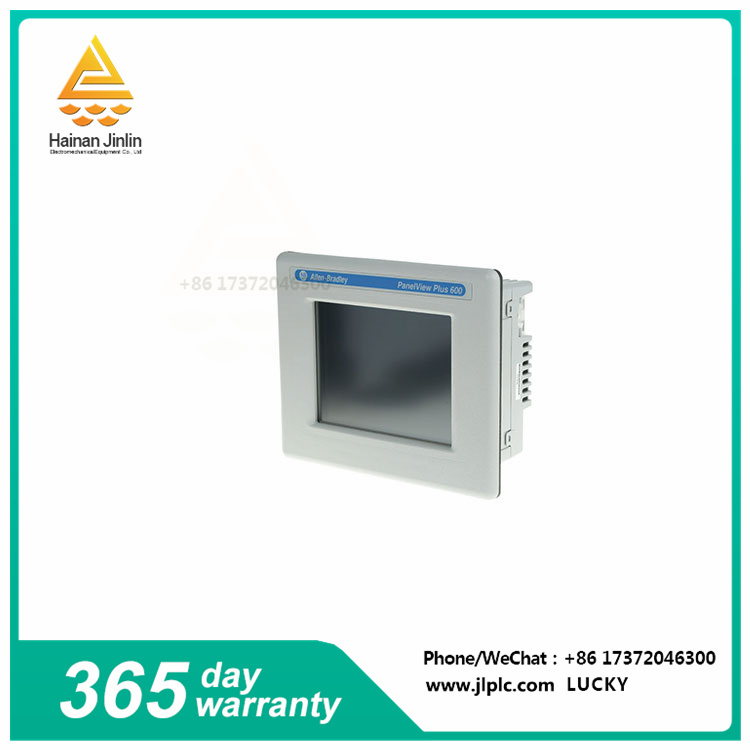

The 2711P-T6C5D terminal, manufactured by Allen-Bradley, is a PanelView 600 control terminal and human-machine interface. The human-machine interface offers a color display with a 5.5-inch display. The 2711P-T6C5D terminal also comes with an RS-232 communication port and has a USB port for simplified connection to external devices.
The 2711P-T6C5D terminal has a rated supply voltage of 24 volts DC, which allows the device to maintain operation even in the event of a power interruption. The 2711P-T6C5D terminal supports a connected communication module with a network interface connected to the basic configuration unit for enhanced communication with various networks.
The communication module can be easily connected via the back of the 2711P-T6C5D terminal. For data entry, the unit has a keyboard with an easy-to-use touch screen.
The 2711P-T6C5D PanelView 600 terminal supports an analog resistive touch screen and can be operated with a finger or stylus. Using a stylus device helps protect the touch screen from scratches or sharp objects that can also cause damage to the screen.
The 2711P-T6C5D terminal has a numeric keypad with function keys numbered 0 to 9 and arrow keys for easy navigation on the screen. For best performance, ensure that the 2711P-T6C5D terminal operates in the ambient operating temperature range of 0 to 55 degrees Celsius. During storage, the ambient storage temperature ranges from -25 to 70 degrees Celsius. The 2711P-T6C5D terminal has a heat dissipation rate of 85 BTU per hour. Relative humidity ranges from 5 to 95% without condensation.
