● Manufacturer: Bentley Nevada
● Product Number :288055-01

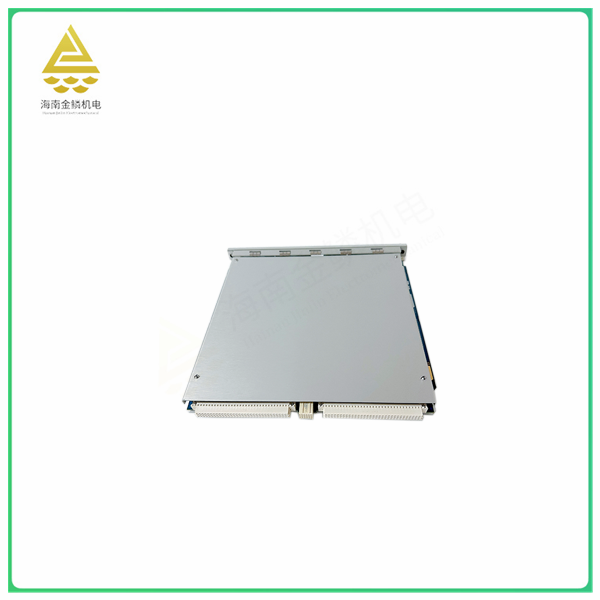

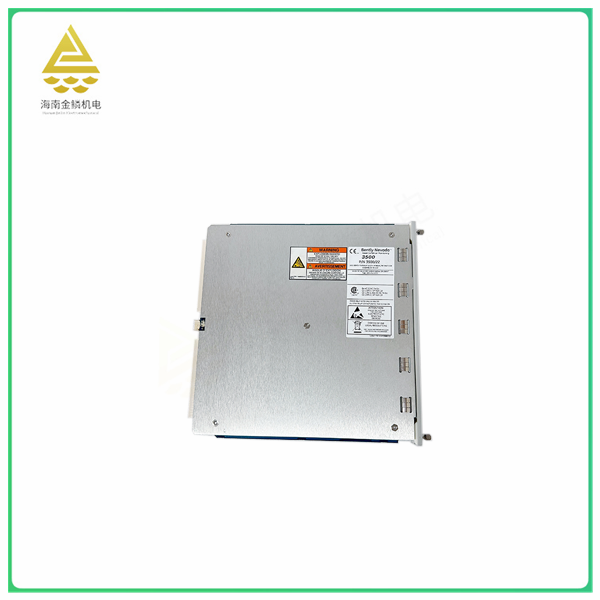

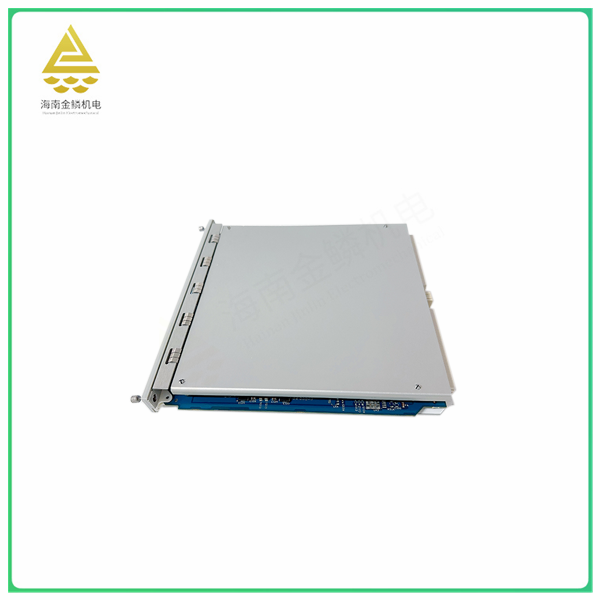

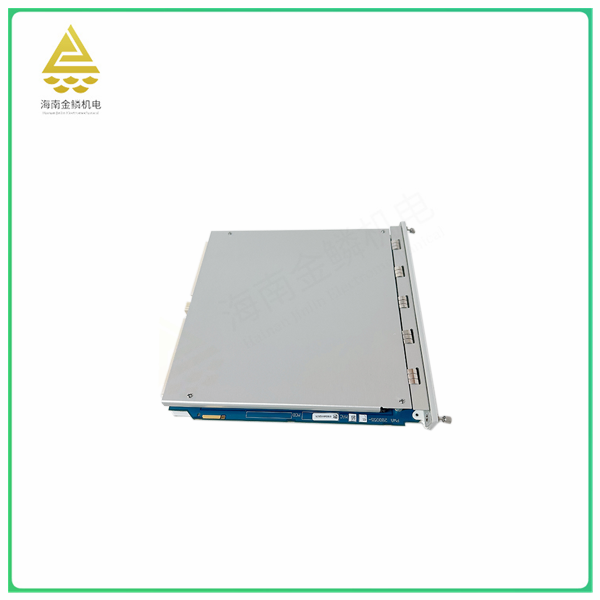

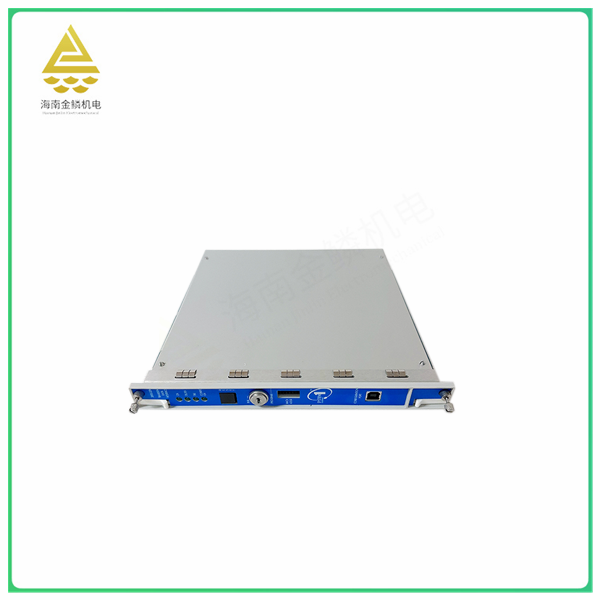

Product type: Standard transient data interface module with USB cable
● Made in China
● Shipping weight :5 kg
The 3500/22M frame is connected to the C module, which is the basic interface for connecting the 3500 frame. Supports Bentley Nevada proprietary protocols used as a configuration framework and to collect machine information. RIM must be installed in the frame
Slot (Next to the power module.
RIM provides a connection that supports current Bentley Nevada communications processors (External Transient Data Interface TDIX and External Dynamic Data Interface DDIX).
RIM uses two types of I/O modules, the Framework Interface I/O module and the data management I/O module. These /O modules allow you to connect the main computer and communication processor to the 3500 frame - only once
Mount a frame interface I/O module behind the RIM(disk or rack mounted frame) or above the RIM(wall mounted frame).
For 3500 monitoring systems, the two effective frame interface I/O modules are the RS-232/RS-422I/O module and the modem I/O module. The following features are common to both /O modules.
The frame interface I/O module must be mounted behind the frame interface E module (disk or rack mounted frame) or on top of the frame interface module (wall mounted frame).
The 288055-01 is a power redundancy module, an industrial spare part, commonly used in Bentley Nevada's industrial automation control systems. It has the function of power redundancy, which can provide reliable power supply and ensure the stable operation of the control system.
The features of the power module include:
Redundancy design: The power module has dual power redundancy design. When the main power supply fails, the backup power supply can automatically take over to ensure the stable operation of the control system.
High reliability: The power module uses high-quality electronic components and materials, which have been rigorously tested and verified to have high reliability and long life.
Wide input range: The input voltage range of the power module is wide, which can provide stable output voltage under different input voltages.
Suitable for a variety of application scenarios: The power module is suitable for a variety of industrial automation control systems, such as power, chemical, petroleum and other fields.
Note the following points when using the power module:
Ensure that the input voltage of the power module is within the rated range to avoid overvoltage or undervoltage.
When installing the power module, follow the instructions in the product manual to ensure correct connection and configuration.
During the use of the power module, you should periodically check the appearance and running status of the power module to discover and resolve potential problems in time.
In harsh industrial environments, such as strong electromagnetic interference and high humidity, appropriate protective measures should be taken, such as installing dust cover and isolation protection.
In short, 288055-01 is a highly reliable power supply redundancy module, suitable for a variety of industrial automation control systems, can provide a stable power supply, to ensure the stable operation of the control system. During use, installation and use should be carried out in strict accordance with the requirements of the product manual, and pay attention to regular inspection and maintenance.
