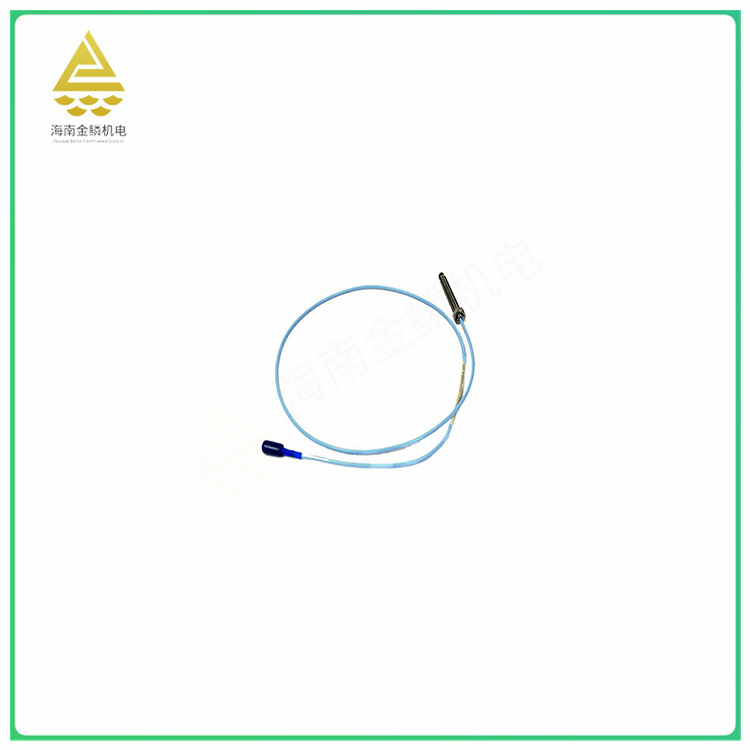

The Bentley 330101-00-20-10-02-CN module is an eddy current probe for measuring shafts
Bear vibration. It has a probe diameter of 8 meters and 3/8-24 UNF threads. The module is manufactured by Bentley Nevada.
The module works by measuring the vibration by measuring the electromagnetic induction of the bearing surface. Bearing vibration
When it moves, it generates electromagnetic induction on its surface. The module converts these electromagnetic inductions into electrical signals,
Measurements can then be made with an oscilloscope or other instrument.
The BENTLY 330101-00-20-10-02-CN module is an eddy current probe designed to measure the axial vibration of rotating machinery. It has 3/8-24 UNF threads for shafts 0.5 "to 1.5" (12.7 m to 38.1 m) in diameter.
The module consists of a permanent magnet and a coil. When the shaft rotates, the shovel generates electromagnetic induction, which produces a "generated voltage signal." This signal is transmitted via a connector to an external instrument for measurement.
The module has the following features:
● High precision: Axial vibration can be measured as small as 0.0001 pairs (0.0025 mm).
Ge reliability: Made of high-quality materials and processes, it can be used in harsh environments.
Easy to install: thread design, easy to install.
The module is widely used in axial vibration monitoring of rotating machinery such as wind turbine, gas turbine and water turbine.
The 3300 XL Proximitor sensor is a major improvement over the previous design. Its physical package allows you to use it in high-density DINrail installations. You can also install the sensor in the transmission
It shares the same 4-hole mount "footprint" front sensor design as the old one. The any-option mounting base provides electrical insulation and does not require a separate isolation plate.
The 3300XL Proximitor sensor is highly resistant to RF interference, allowing you to mount it in a fiberglass housing without being adversely affected by frequency signals from nearby radios. 3300 XL
The Proximitor sensor provides enhanced RF/EMI protection to meet the European CE Mark and requires no special shielded conduit or metal housing, resulting in lower installation costs and complexity. 3300
XL's SpringL oc terminal boards do not require special mounting I have clamping devices that promote faster and stronger field wiring connections that may come loose by eliminating screw shapes.
