Product Overview

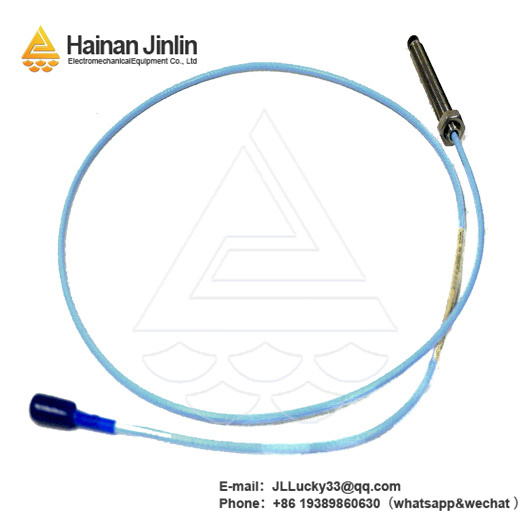

The 330103-00-12-10-02-CN is a high-precision non-contact proximity probe from Bently Nevada, a pioneer in machinery condition monitoring, and a core component of the 3300 XL system. Engineered for harsh industrial environments, this eddy-current sensor uses a high-frequency magnetic field to measure vibration, displacement, speed, and shaft position in rotating equipment like turbines, compressors, and motors . Key features of the 330103-00-12-10-02-CN include an 8mm sensing range, 12-meter shielded cable, and IP67 environmental protection—ensuring reliable performance in dusty, wet, or high-shock settings. With China-specific agency approvals, the 330103-00-12-10-02-CN integrates seamlessly into power, petrochemical, and manufacturing DCS/PLC systems, providing real-time data to prevent unplanned downtime and extend equipment lifespan.
Hainan Jinlin Mechanical & Electrical is a distributor of industrial control products, specializing in a wide range of brands. We possess extensive industry knowledge and market insights. Adhering to the "Customer First, Forge Ahead" business philosophy, we provide high-quality customer service. We're here for you, dedicated to meeting your needs!
Technical Specifications
|
Parameter
|
Value
|
|
Product Model
|
330103-00-12-10-02-CN
|
|
Manufacturer
|
Bently Nevada
|
|
Product Type
|
3300 XL Eddy-Current Proximity Probe
|
|
Sensing Range
|
8 mm (0.31 inches)
|
|
Cable Length
|
12 m (39.37 feet) with shielded design
|
|
Operating Voltage
|
10–30 V DC (24 V DC typical)
|
|
Operating Temperature
|
-40°C to +125°C (-40°F to +257°F)
|
|
Output Signal
|
4–20 mA analog signal
|
|
Accuracy
|
±0.1% of full scale
|
|
IP Rating
|
IP67 (dust/water ingress protection)
|
Key Features and Benefits
Unmatched Precision & Reliability
The 330103-00-12-10-02-CN delivers exceptional measurement accuracy (±0.1%) and repeatability (±0.05%), detecting minute displacement changes as small as 0.025mm . This precision is critical for early detection of machinery issues like bearing wear or shaft misalignment—alerting maintenance teams before failures occur. Its eddy-current technology is unaffected by oil, dust, or moisture, ensuring consistent data in polluted industrial environments where traditional sensors falter.
Harsh-Environment Durability
Built to withstand extreme conditions, the 330103-00-12-10-02-CN features a high-grade stainless steel housing and IP67 rating, making it resistant to water immersion (up to 1m) and dust penetration . Its wide operating temperature range (-40°C to +125°C) allows reliable use in arctic cold storage or high-heat turbine enclosures. The 12m shielded cable reduces electromagnetic interference (EMI) from nearby motors, preserving signal integrity in noisy electrical setups .
Seamless Integration & Ease of Use
Designed for the Bently Nevada 3300 system, the 330103-00-12-10-02-CN connects via a miniature coaxial click-loc connector—enabling tool-free installation and quick replacement during emergencies . It is compatible with ABB, Honeywell, and Siemens DCS platforms, eliminating the need for custom adapters. Hainan Jinlin backs the 330103-00-12-10-02-CN with a 12-month warranty, plus pre-sales support (e.g., compatibility checks for your machinery) and after-sales troubleshooting to maximize uptime.
Related Models
- 330103-00-10-10-02-CN – Variant of the 330103-00-12-10-02-CN with a 10m cable, ideal for compact equipment layouts .
- 330103-00-12-10-02-00 – Global version of the 330103-00-12-10-02-CN without China-specific approvals, for international projects .
- 330104-00-12-10-02-CN – Higher-sensitivity counterpart to the 330103-00-12-10-02-CN, optimized for low-amplitude vibration monitoring .
- 330180-12-00 – Extension cable for the 330103-00-12-10-02-CN, adding 12m length for hard-to-reach installations .
- 3300/16 – Bently Nevada monitor that pairs with the 330103-00-12-10-02-CN to log and alarm on vibration data .
- 330103-00-12-10-05-CN – Enhanced model of the 330103-00-12-10-02-CN with a wider 10–36 V DC voltage range .
- 330703-000-060-10-02-CN – Twin-probe system compatible with the 330103-00-12-10-02-CN for dual-axis vibration monitoring .
Typical Application Areas
As a certified partner of industry leaders such as Bentley Nevada, Honeywell, and ABB, we provide key components for:
- Process Industries: Vibration/displacement monitoring for petrochemical pumps and power plant turbines, where the 330103-00-12-10-02-CN prevents catastrophic failures .
- Discrete Manufacturing: Shaft position tracking in automotive assembly line motors, ensuring alignment and reducing defects.
- Infrastructure: Condition monitoring of wastewater compressors, leveraging the 330103-00-12-10-02-CN’s IP67 rating for wet environments.
We prioritize professionalism in pre-sales and after-sales service: our team offers technical consultations to verify system compatibility and calibration guidance for the 330103-00-12-10-02-CN. All products include a one-year warranty. If you cannot find the model you need, please contact us immediately.
